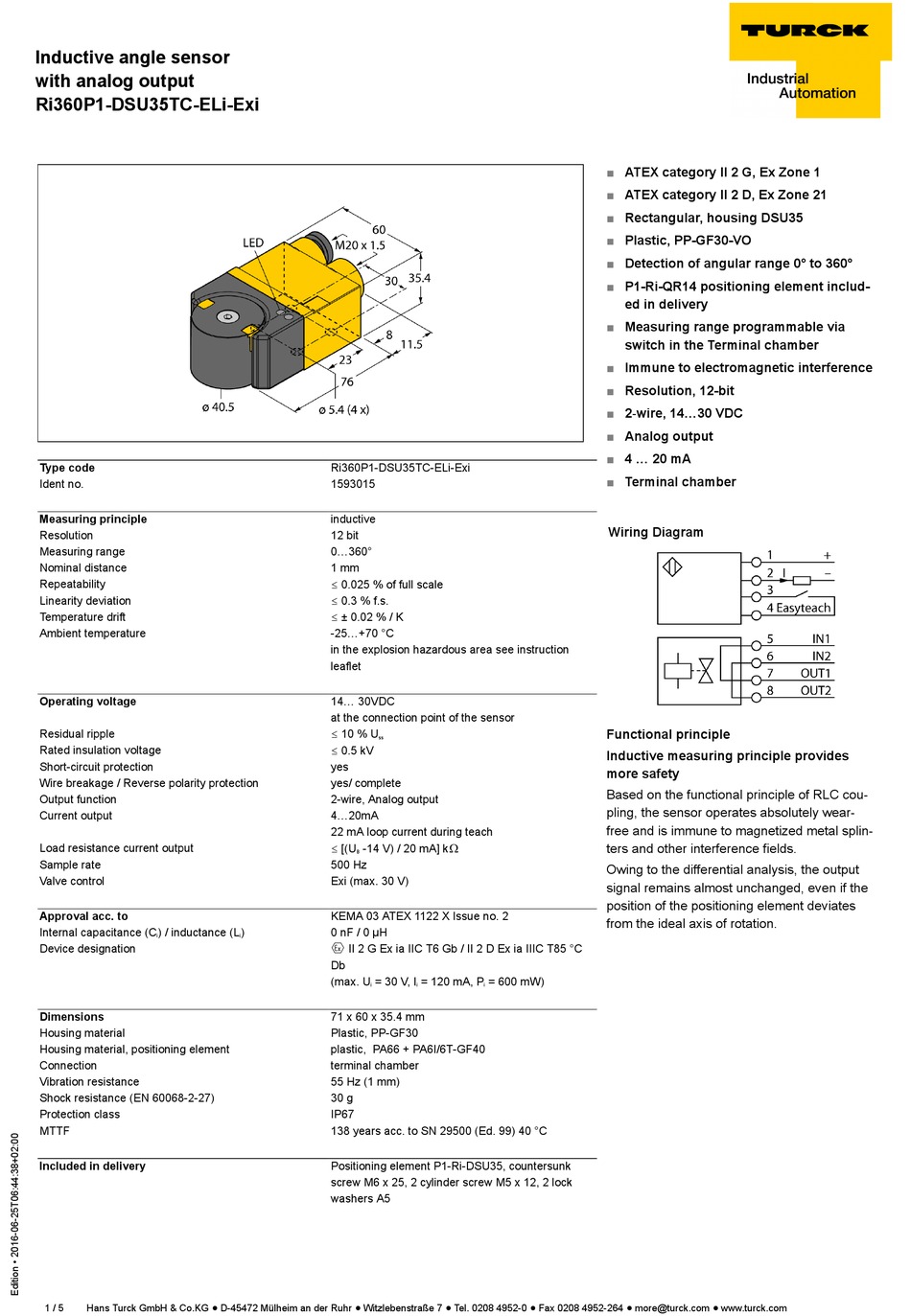

turck Ri360P1-DSU35TC-ELi-Exi Quick Start Manual

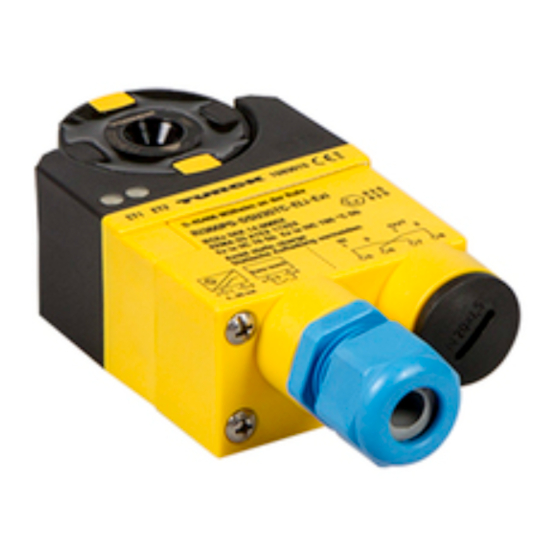

Inductive angle sensor
with analog output
Ri360P1-DSU35TC-ELi-Exi
Type code
Ident no.
Measuring principle
Resolution
Measuring range
Nominal distance
Repeatability
Linearity deviation
Temperature drift
Ambient temperature
Operating voltage
Residual ripple
Rated insulation voltage
Short-circuit protection
Wire breakage / Reverse polarity protection
Output function
Current output
Load resistance current output
Sample rate
Valve control
Approval acc. to
Internal capacitance (C ) / inductance (L
i
Device designation
Dimensions
Housing material
Housing material, positioning element
Connection
Vibration resistance
Shock resistance (EN 60068-2-27)
Protection class
MTTF
Included in delivery
1 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Ri360P1-DSU35TC-ELi-Exi
1593015
inductive
12 bit
0...360°
1 mm
ð 0.025 % of full scale
ð 0.3 % f.s.
ð ± 0.02 % / K
-25...+70 °C
in the explosion hazardous area see instruction
leaflet
14... 30VDC
at the connection point of the sensor
ð 10 % U
ss
ð 0.5 kV
yes
yes/ complete
2-wire, Analog output
4...20mA
22 mA loop current during teach
ð [(U -14 V) / 20 mA] kò
B
500 Hz
Exi (max. 30 V)
KEMA 03 ATEX 1122 X Issue no. 2
) 0 nF / 0 µH
i
É II 2 G Ex ia IIC T6 Gb / II 2 D Ex ia IIIC T85 °C
Db
(max. U = 30 V, I
i
71 x 60 x 35.4 mm
Plastic, PP-GF30
plastic, PA66 + PA6I/6T-GF40
terminal chamber
55 Hz (1 mm)
30 g
IP67
138 years acc. to SN 29500 (Ed. 99) 40 °C
Positioning element P1-Ri-DSU35, countersunk
screw M6 x 25, 2 cylinder screw M5 x 12, 2 lock
washers A5
= 120 mA, P = 600 mW)
i i
■ ATEX category II 2 G, Ex Zone 1
■ ATEX category II 2 D, Ex Zone 21
■ Rectangular, housing DSU35
■ Plastic, PP-GF30-VO
■ Detection of angular range 0° to 360°
■ P1-Ri-QR14 positioning element includ-
ed in delivery
■ Measuring range programmable via
switch in the Terminal chamber
■ Immune to electromagnetic interference
■ Resolution, 12-bit
■ 2-wire, 14...30 VDC
■ Analog output
■ 4 ... 20 mA
■ Terminal chamber
Wiring Diagram
Functional principle
Inductive measuring principle provides
more safety
Based on the functional principle of RLC cou-
pling, the sensor operates absolutely wear-
free and is immune to magnetized metal splin-
ters and other interference fields.
Owing to the differential analysis, the output
signal remains almost unchanged, even if the
position of the positioning element deviates
from the ideal axis of rotation.
