2-8 MicroLogix™ 1200 IO 8 Ch Output Module
User's Manual Pub. 0300246-01 Rev. B

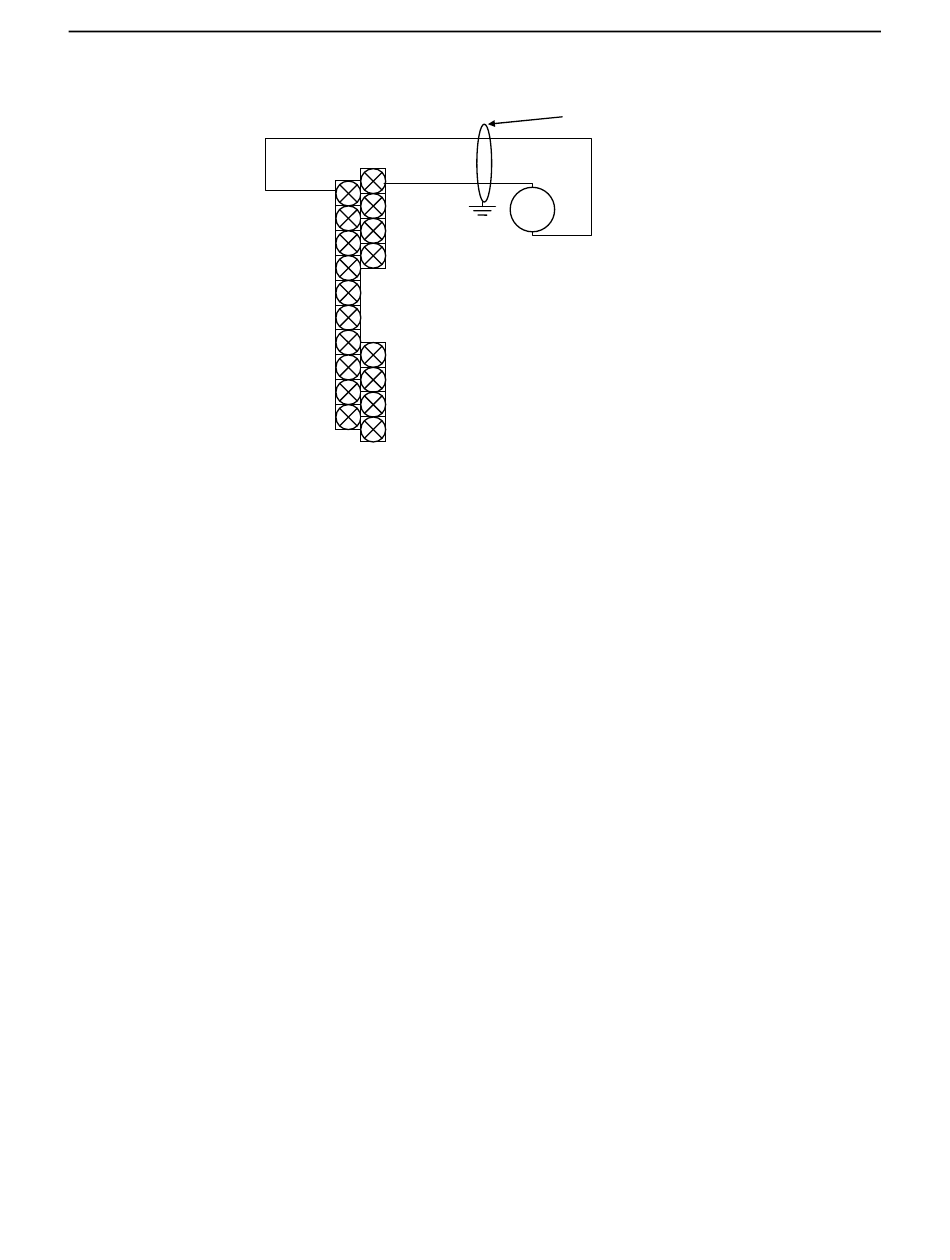

OUT 0
RTN 0
OUT 1
RTN 1
OUT 2
RTN 2
OUT 3
RTN 3
NC
NC
RTN 4
OUT 4
RTN 5
OUT 5
RTN 6
OUT 6
RTN 7
OUT 7
Note: All return terminals are electrically tied together, but each output
should use its own associated return terminal for best accuracy.
Shield
Load
+
-
