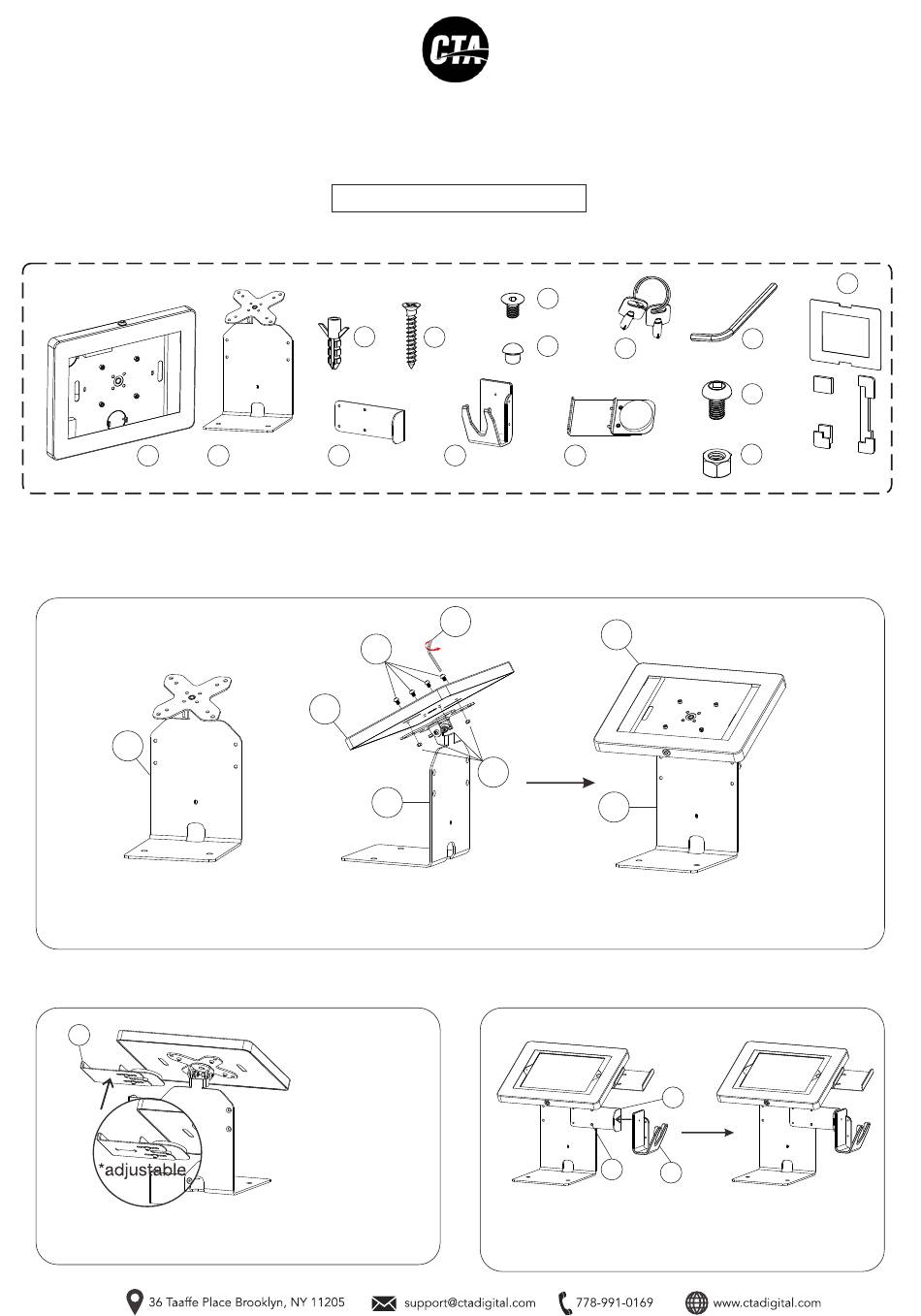

POS Station w/ Printer Stand, Magnetic Scanner
Card Reader Holder & Universal Security Enclosure (White)
CONTENTS:
A
x1
INSTALLATION:
1.Installing the Enclosure :
B
1A. Align enclosure (A) with Kiosk Body (B)
2. Placing Magnetic Card Reader
E
2A. Place magnetic card reader holder (E)
anywhere magnetic to setup.
PAD-PARAPOSW
INSTALLATION - MANUAL
H
x2
B
C
Arm
x1
x1
Extender
G
A
B
J
x1
I
K
x2
x1
D
E
Scanner
Card Reader
x1
Holder
x1
Holder
M
F
1B. After enclosure vesa holes are aligned to VESA plate,
rotate in screws (G) with provided tool (M) while holding
hex nuts (F) from behind until securely fastened.
3. Placing Magnetic Scanner Holder
**Tablet for illustration only and not included
3A.Screw in arm extender (C) as illustrated using
screws (J) and provided tool (M).
3B. Place magnetic scanner holder (D) on arm as
shown above.
M5
M
Allen
L
Key
x1
Key
x1
Set
G
M5
x4
X6
F
M5
x4
Nut
A
B
C
J
D
N
Foam / Sheet
Bundle Kit
Advertisement
Table of Contents
Related Manuals for CTA PAD-PARAPOSW
Summary of Contents for CTA PAD-PARAPOSW
- Page 1 POS Station w/ Printer Stand, Magnetic Scanner Card Reader Holder & Universal Security Enclosure (White) PAD-PARAPOSW INSTALLATION - MANUAL CONTENTS: Allen Scanner Card Reader Foam / Sheet Extender Holder Holder Bundle Kit INSTALLATION: 1.Installing the Enclosure : 1A. Align enclosure (A) with Kiosk Body (B) 1B.
- Page 2 4. (Optional) Anchoring Base to Surface **Tablet and Powerdrill for illustration only and not included 4A. Drill (2) holes into the surface using a power drill or like (not provided). Insert the plastic anchors (H) into the holes and then align the kiosk (A) holes with surface. Then take the screws (I) and rotate in with screwdriver (not included) until securely tightened.
