Summary of Contents for Clarke SPE800

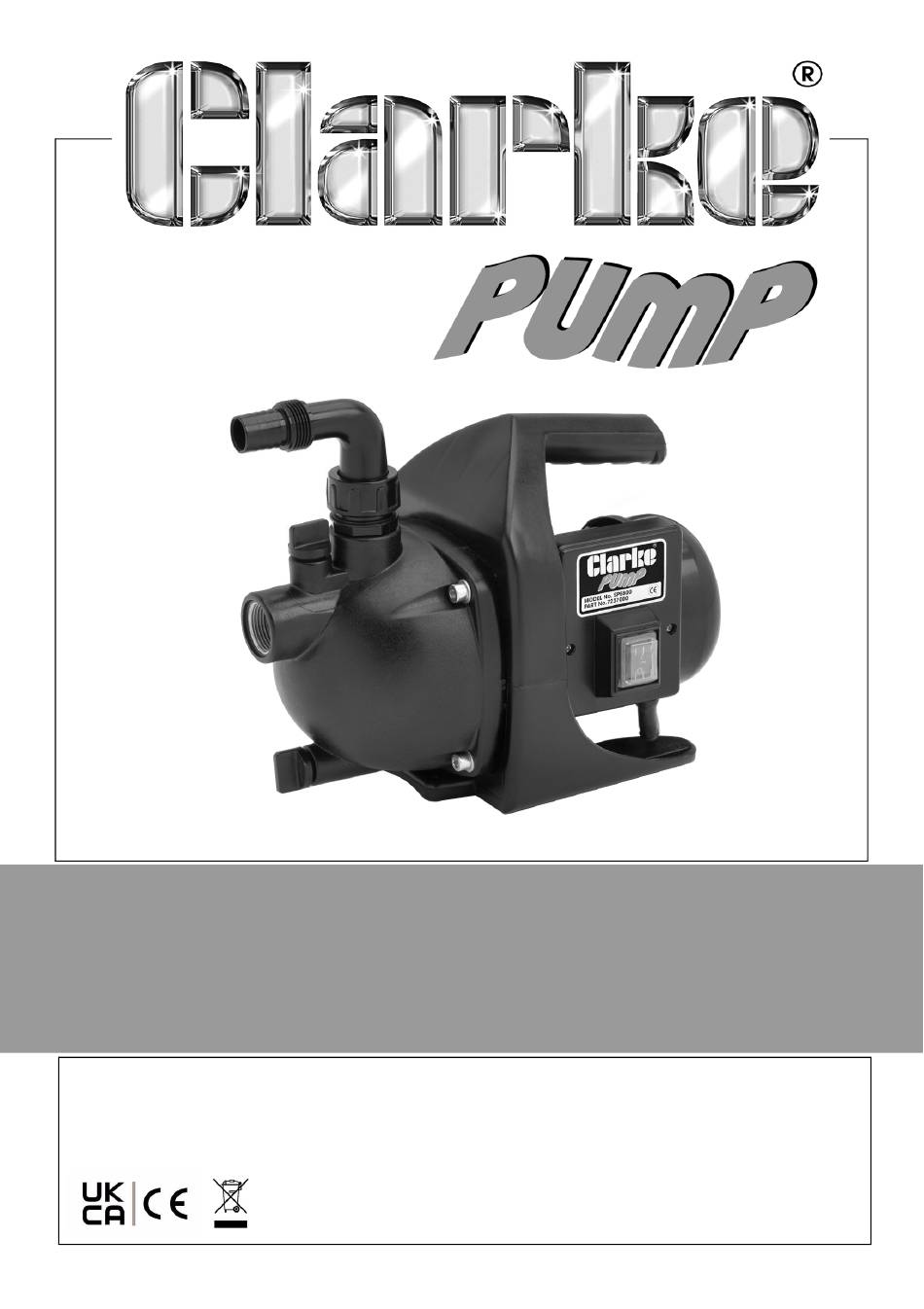

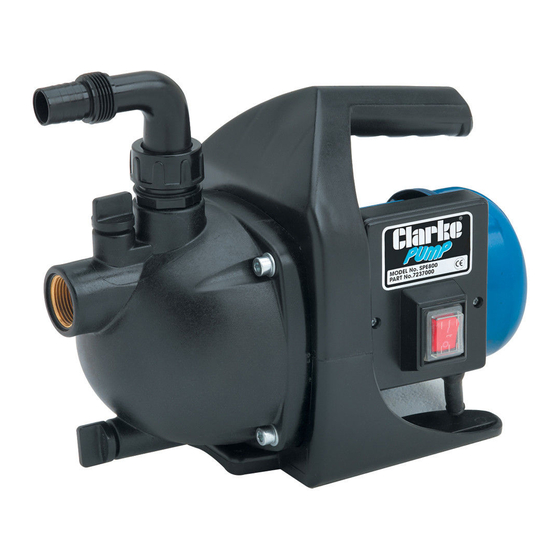

- Page 1 1” WATER PUMP MODEL NO: SPE800 PART NO: 7237000 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0922 - rev 1...
- Page 2 WHENEVER THERE IS A RISK OF PERSONAL INJURY. ENSURE THAT THESE WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES. Your CLARKE water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer.
-
Page 3: General Safety Precautions
9. NEVER modify this pump in any way. Use it ONLY for the purpose for which it is designed. 10. ALWAYS have the pump serviced by your local Clarke dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 5: Preparation For Use
Because of the variety of possible installations, no plumbing accessories are supplied with your pump, however accessories designed specifically for this range of pumps are available from your nearest CLARKE dealer. Contact your CLARKE dealer for further information. IMPORTANT: The pump MUST NOT be connected to the mains power supply until all hose/pipe installation is completed. - Page 6 A gate valve may be installed in-line on the delivery side (outlet port) of the pump which can be adjusted as required to regulate the flow of water, and can assist in priming the pump. CAUTION: DO NOT PLACE ANY SUCH OBSTRUCTION ON THE SUCTION (INLET) SIDE OF THE PUMP UNLESS IT IS AN ISOLATOR VALVE IN A GRAVITY FED SYSTEM.
-
Page 7: Priming The Pump
PRIMING THE PUMP Remove the filler plug on top of the pump case and prime the pump by filling completely with water, leaving no air gap. Remember the pump is self- priming only when filled, after which, it will re-prime itself without refilling. - Page 8 Re-prime the pump when returning to service. In the event that overhaul of the pump or motor is necessary, contact your Clarke service department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 9: Maintenance
Clarke International Sales Department on 01992 565333. ° hose adaptor. These pumps are supplied with a 1” male 90 The use of parts other than genuine Clarke replacement parts may result in possible safety hazards or decreased machine performance, and will invalidate your warranty. -
Page 10: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your Clarke making poor seal. dealer for repair Impeller / mechanical Return to your Clarke seal is badly worn. dealer for repair. -
Page 11: Specification
Installation of pump is Stop pump and re-posi- unstable. tion. Air pocket in pump or Release plug in impeller pipeline. housing to release air. Damaged impeller Return to your Clarke dealer for repair. SPECIFICATION Model SPE800 Water Classification Clean Maximum Delivery 53 l/min... - Page 12 SPE800 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 13: Environmental Recycling Policy
13 Screw 27 Connecting screw 14 Cable clip 28 Frame casting IMPORTANT: The use of parts other than genuine CLARKE replacement parts may result in safety hazards, decreased performance, and will invalidate your warranty. ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling &... - Page 14 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 15: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
