Summary of Contents for Clarke SWP900A

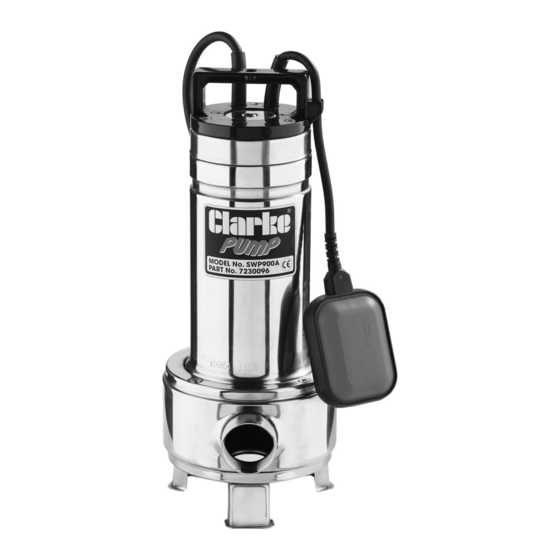

- Page 1 SUBMERSIBLE SEWAGE PUMP MODEL NO: SWP900A PART NO: 7230096 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1221 - ISS 5...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Submersible Sewage Pump. This pump is designed for pumping waste and clean water or sewage containing bodies up to 31mm. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS GENERAL PUMP SPECIFIC 1. Read all instructions before use 1. DO NOT pump explosive / and save these instructions for flammable liquids or chemicals. future use. 2. NEVER allow the pump to run dry 2. An approved residual current or operate out of the water. - Page 4 OVERVIEW FLOAT SWITCH HANDLE WATER INLET CABLE CLAMP PLUG AND CABLE WATER OUTLET Remove all packaging and make sure that the unit contains no visible damage. Dispose of all packaging appropriatly. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 6: Using The Pump
BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES. 1. Connect a suitable hose (not supplied) to the pump outlet. • Suitable hoses are available from your local Clarke dealer. 2. Place the pump on a flat surface in the area that you want to drain. -
Page 7: Maintenance
IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN. This pump should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. CLEANING 1. -
Page 8: Troubleshooting
7. Water level too low - float switch in OFF position - lift float to check switch. 8. If the pump still fails to start, consult your CLARKE dealer. PUMP WILL 1. Check that the inlet is not blocked. -
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Parts List And Diagram
PARTS LIST & DIAGRAM Bolt Washer Capacitor Washer Spring Washer Capacitor Box Cover Footing Screw O Ring Casing Cover Mechanical Seal Upper Motor Cover O Ring O Ring Gland Cover Screw Rotor O Ring O Ring Motor Frame Screw Casing Bearing Screw Motor Gland Cover... -
Page 11: Specifications
ACCESSORIES Layflat Hoses Assorted Hose Clip Set - CHT672 • Available in 100 metre coils or per • 26 piece assorted hose clip set in meter. various sizes, Including. 8 x16mm, • Available in 1” - 3” Diameter. 6 x 22mm, 4 x 25mm, 2 x 28mm, 2 x 35mm &...
