INTRODUCTION
1.1.
Objective
This specification describes the mandatory procedure to be followed during the
assembly of the harness with the 45° shields with
Draka cable for :
a) positioning the ferrule before crimping,
b) crimping the ferrule,
c) crimping the two upper shield legs down the lower shields.

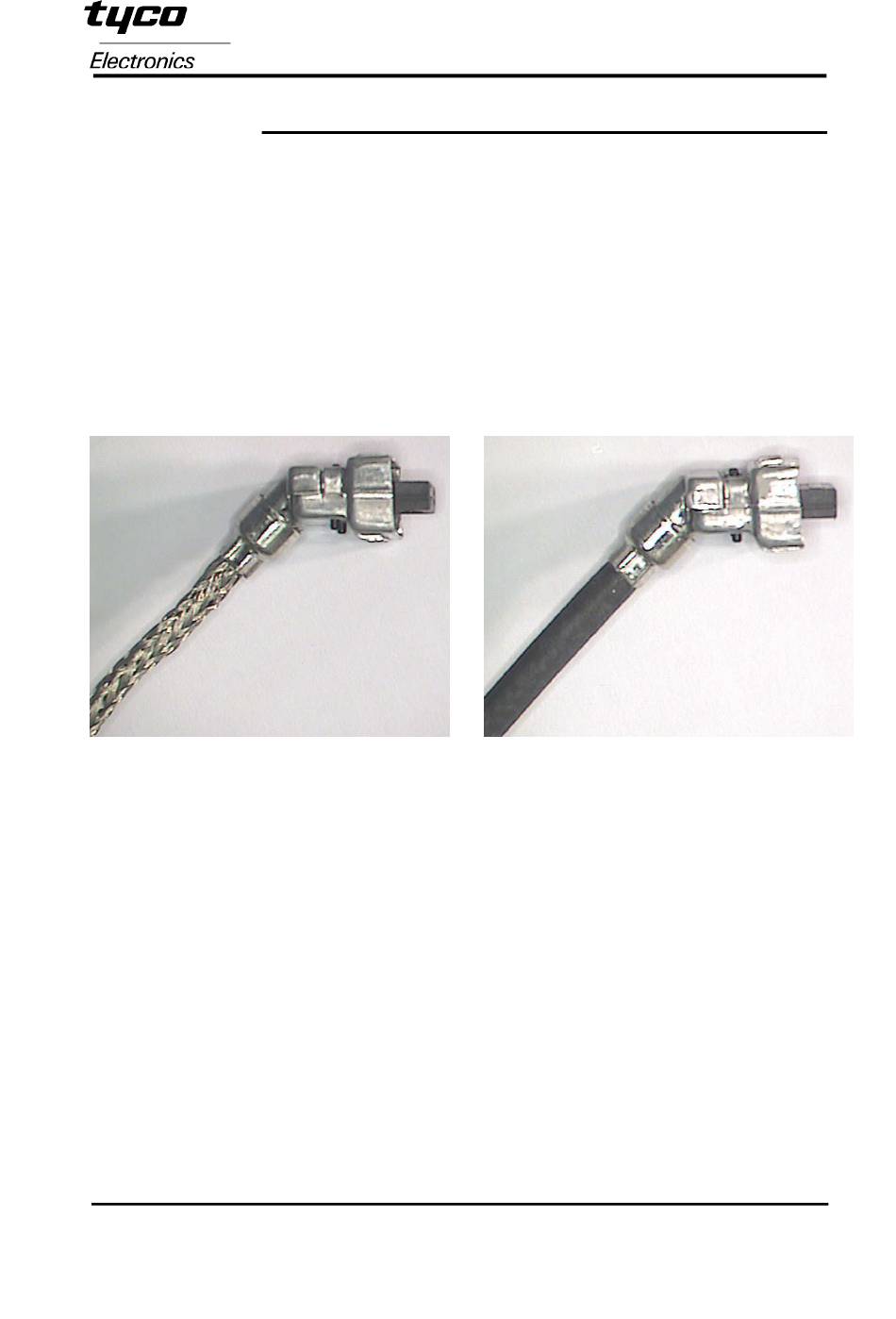

WITH BRAID CABLE
1.2. Components
a) MQS socket housings 4 positions loaded with 3 contacts which are crimped on
the cable wires according general recommendation 411-15677.
Note : either the "Draka cable" or the "braid cable" are self supplied by the customer.
"Draka cable" reference number of Draka Deutschland is FLR91XCC33X according
specification data sheet number DF055-1999, issue B/24.08.00/Ve/Ot.
b) Ferrule (Tyco part number 0-953903-1)
c) Upper 45° shield assembly (Tyco part number 0-1379633-1)
d) Lower 45° shield assembly (Tyco part number 0-1379634-1)
Tyco Electronics France Sas
B.P. 39, 95301 CERGY-PONTOISE Cedex
Ce document est sujet à modifications. Contacter Tyco Electronics pour identifier la dernière révision et en
obtenir une copie. Personnel Tyco Electronics : consultez la base de données StarTEC.
This document, managed by Tyco Electronics France, is archived in the Startec database.
A printout cannot be considered as a controlled document
Instruction sheet
GENERAL RECOMMENDATION OF USE
FOR 45° SHIELDS G4 WITH DRAKA CABLE
©2002 Tyco Electronics Corporation
All International Rights Reserved
(Tous droits réservés)
411-15684
31-Oct-03, Rev. O
WITH DRAKA CABLE
1 to 4
LOC F
Advertisement
Table of Contents
Related Manuals for Tyco Electronics 411-15684
Summary of Contents for Tyco Electronics 411-15684
- Page 1 (Tous droits réservés) LOC F Ce document est sujet à modifications. Contacter Tyco Electronics pour identifier la dernière révision et en obtenir une copie. Personnel Tyco Electronics : consultez la base de données StarTEC. This document, managed by Tyco Electronics France, is archived in the Startec database.
- Page 2 411-15684 45° SHIELDS G4 WITH DRAKA CABLE PROCEDURES 2.1. Recommendation when positioning the ferrule before crimping The pre-assembly of the cable with the connector is realized according general recommendation of use n° 411-15677 Then the ferrule must be manually pre-inserted over the braid on the shields chimney (as shown picture 1).
- Page 3 411-15684 45° SHIELDS G4 WITH DRAKA CABLE 2.2. Procedure for crimping the ferrule Important : This step has to be done before crimping the two shields legs. Preliminary definitions Crimp ‘Crimp Width Reversed width’ and crimp direction ‘crimp high’ is shown by...
- Page 4 411-15684 45° SHIELDS G4 WITH DRAKA CABLE 2.3. Procedure for crimping the two shield legs. Important : This step has to be done after crimping the ferrule on the Connect Systems tool number ‘391-1’ (see picture 6,7, 8). Picture 6...
