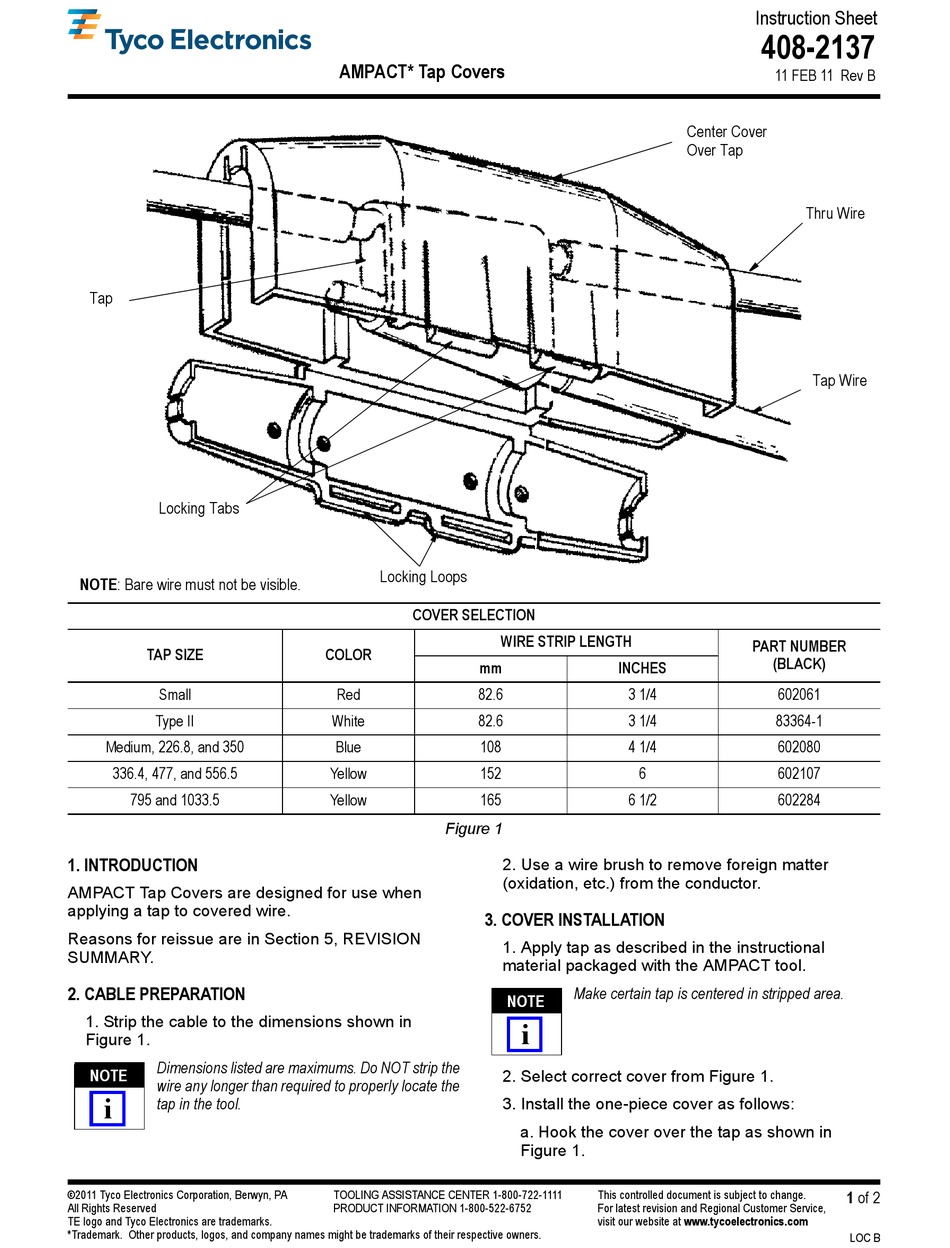

Tyco Electronics AMPACT 602080 Instruction Sheet

Tap covers

Advertisement

Tap
Locking Tabs
NOTE: Bare wire must not be visible.
TAP SIZE
Small
Type II
Medium, 226.8, and 350
336.4, 477, and 556.5
795 and 1033.5

1. INTRODUCTION

AMPACT Tap Covers are designed for use when
applying a tap to covered wire.
Reasons for reissue are in Section 5, REVISION
SUMMARY.

2. CABLE PREPARATION

1. Strip the cable to the dimensions shown in 
Figure 1.
Dimensions listed are maximums. Do NOT strip the
NOTE
wire any longer than required to properly locate the
i
tap in the tool.
©2011 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.
AMPACT* Tap Covers
Locking Loops
COVER SELECTION
WIRE STRIP LENGTH
COLOR
mm
Red
82.6
White
82.6
Blue
108
Yellow
152
Yellow
165
Figure 1
2. Use a wire brush to remove foreign matter
(oxidation, etc.) from the conductor.

3. COVER INSTALLATION

1. Apply tap as described in the instructional
material packaged with the AMPACT tool.
2. Select correct cover from Figure 1.
3. Install the one-piece cover as follows:
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
INCHES
3 1/4
3 1/4
4 1/4
6
6 1/2
Make certain tap is centered in stripped area.
NOTE
i
a. Hook the cover over the tap as shown in
Figure 1.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-2137
11 FEB 11 Rev B
Center Cover
Over Tap
Thru Wire
Tap Wire
PART NUMBER
(BLACK)
602061
83364-1
602080
602107
602284
1 of 2
LOC B
