Tyco Electronics CXP 2161060-1 Original Instructions

Extraction Screw
Side Plates
REMOVAL TOOL
2161060-1

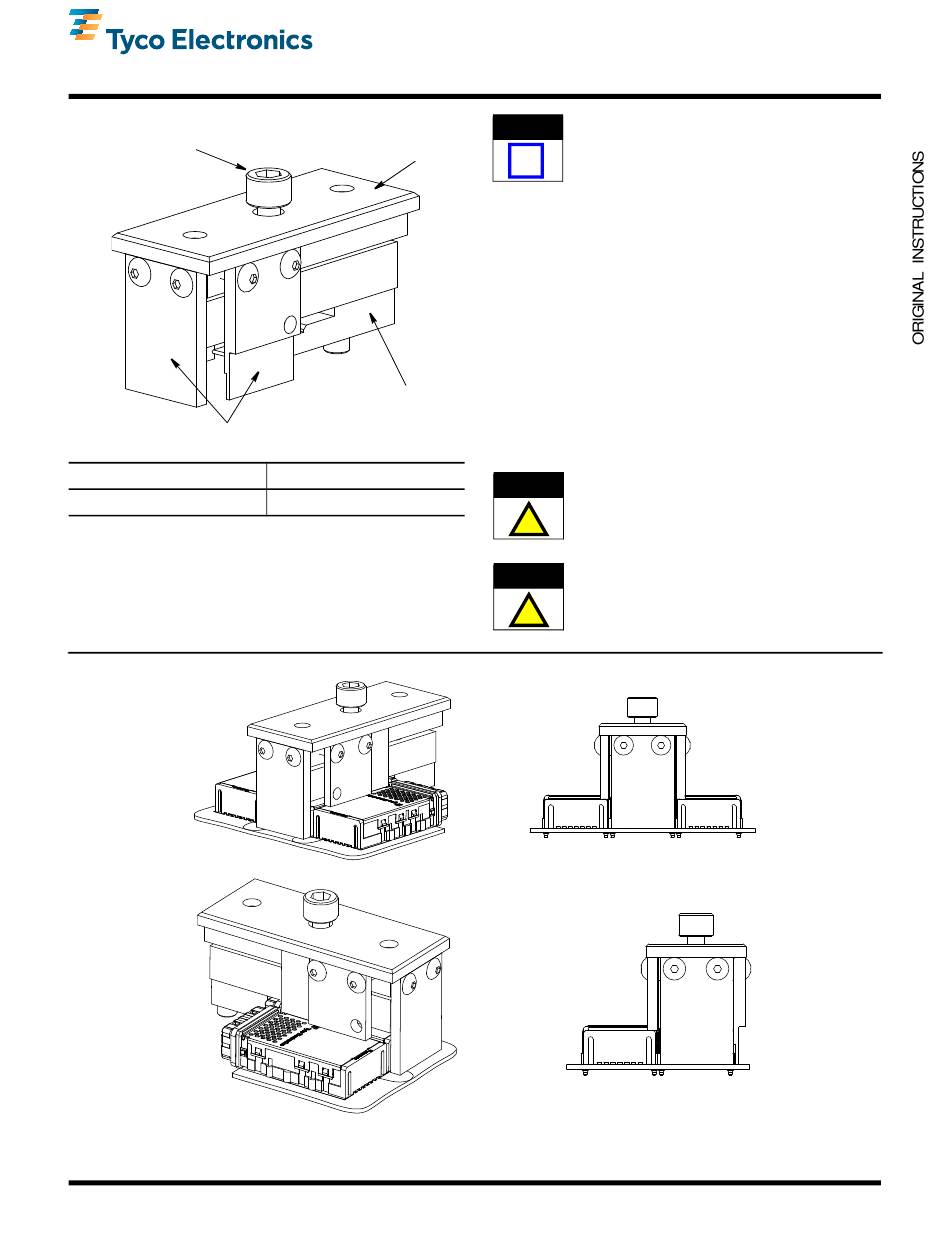

Figure 1

1. INTRODUCTION

The CXP Receptacle Assembly Removal Tool
2161060-1 is designed to remove the connector listed
in Figure 1 from the printed circuit (pc) board.
©2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.
CXP Receptacle Assembly
Removal Tool
2161060-1
Upper Tooling
Assembly
Removal Blade
Assembly
CONNECTOR DESCRIPTION
CXP Receptacle Assembly
Figure 2
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures and
illustrations are for reference only and are not
i
drawn to scale.
Read these instructions and understand them before
using the removal tool.

2. DESCRIPTION

The tool consists of a removal blade assembly, and an
upper tooling assembly. See Figure 1.
The side plates of the upper tooling assembly push on
the pc board surface while removing the receptacle.
The removal blade assembly engages the receptacle
and pulls it from the pc board. The extraction screw
draws the removal blade assembly up and pulls the
CXP receptacle assembly up and off of the pc board.

3. REMOVAL PROCEDURE

There are (4) M2 screws holding the receptacle
CAUTION
assembly to the pc board. These M2 screws must
be removed prior to removing the receptacle
!
assembly.
Be certain to remove tool assembly does not
CAUTION
contact any components on the pc board during
use. To prevent damage, the side plates can be
!
routed to clear adjacent components. See Figure 2.
