Kirra Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
screw
x24
x16
F
G
slide rail
slide rail
x4
x4
L
K
wedge
scerw
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
bolt
locking nut
x12
x12
I
H
slide rail
slide rail
x4
x4
M
N
small bolt
long scerw
x4
x20

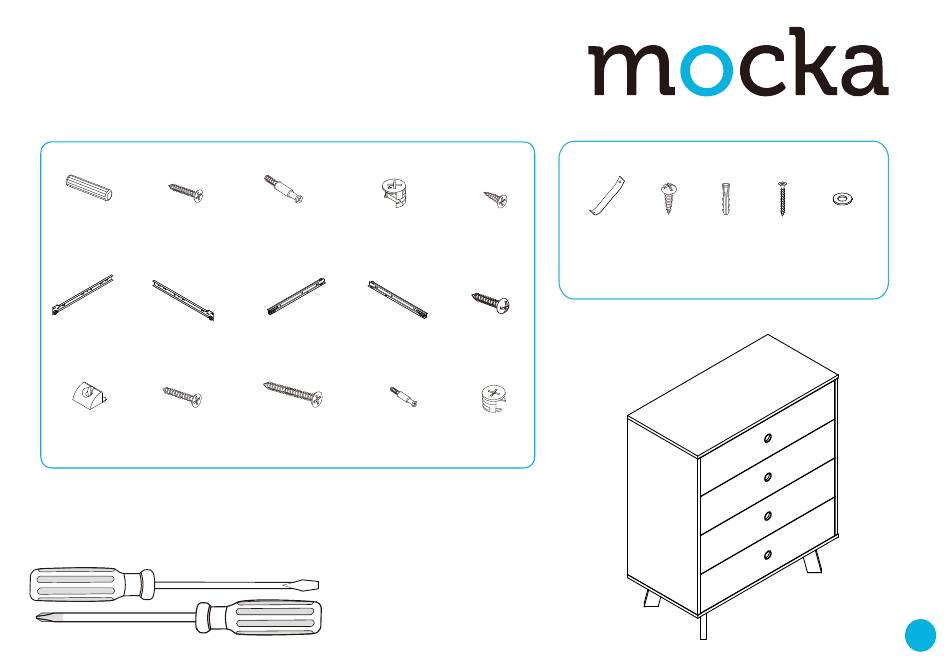

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
V
small screw
safety
x40
strap x1
J
screw
x16
O
small locking
nut
x20
W
X
Y
screw
wall
wall
washer
x1
anchor
screw
x1
x1
Wall Strap
Z
x2
1
Advertisement
Related Manuals for Mocka Kirra
Summary of Contents for Mocka Kirra
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 4x slide rails (G) to panel [3] and secure with 12x small screws (E). secure with 4x locking nuts (D). Tighten with a screwdriver. Insert 8x bolts (C) into panels [2] and [3].Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panel [2] to panels [5] and [6] with 2x dowel (A) and Slide panel [7] down along the grooves of the side panels to form the back secure with 4x locking nuts (D). Tighten with a screwdriver. of the unit. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [4] to the rest of the unit using 4x dowels (A). Attach the legs [8] to panel [4] as shown using 16x screw (J) .Tighten Secure with 4x screws (M) and tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Kirra Four Drawer Assembly Instructions Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver. Slide panel [7] down along the grooves between the panels [2] and [3]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [1] to panels [2] and [3] with 4x dowels (A) and secure Insert 5x small bolts (N) into panel [9].Tighten with a screwdriver. with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [10], [11] and [12] to panel [9] with 1x dowel (A) and secure Slide panel [13] down along the grooves of panels [10] and [11]. with 5x small locking nuts (O). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach slide rails (I) and slide rails (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 8x screws (L). Tighten with a screwdriver.Attach 1x safety strap (V) to the top of the back side of the unit as shown using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 (V). Fasten to wall using 1x washer (Z), 1x wall plug (X) and 1x screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
