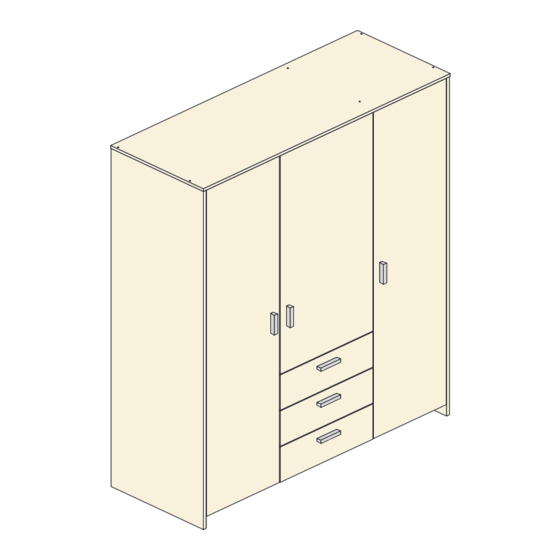

Alicia - 3 Drawer 3 Door Robe

Assembly Instructions -

Dimensions

Width - 132cm

Depth - 49.5cm

Height - 182.5cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

188/8379

146/8184

MADE IN

BRITAIN

Issue 3 - 10/02/14

Need help?

Do you have a question about the Alicia 188/8379 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Alicia 188/8379

Page 1 Alicia - 3 Drawer 3 Door Robe Assembly Instructions - 188/8379 Please keep for future reference 146/8184 Dimensions Width - 132cm Depth - 49.5cm MADE IN Height - 182.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 3 - 10/02/14...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 83kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Large Upright (D2668A) (D2674A) (D2676A) (1808 x 493mm) (1808 x 493mm) (1735 x 469mm) Base...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 3 drawer fronts Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten the metal dowels up fully against...
Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
Page 7 Assembly Instructions Step 7 Fit the wedgefixes Turn the drawer assemblies over. Slide a wedgefix into the small groove in the drawer front , drawer back and drawer sides , as shown. Once in place, tighten up the screws. Step 8 Prepare the small upright Place 3 runners...
Page 8 Assembly Instructions Step 9 Plain chipboard Prepare the horizontal surface Tap a wooden dowel into the horizontal Screw 2 metal dowels into the horizontal Insert 2 large locking nuts into the horizontal Finished front edge Step 10 Fit the small upright to the horizontal Plain Push the small upright...
Page 9 Assembly Instructions Step 11 Prepare the large upright Push a rail holder into the large upright Make sure that it is fitted straight, in line with the panel edges and then secure with screw Tap 2 wooden dowels into the large upright Finished front edge Place 3 runners...
Page 10 Assembly Instructions Step 12 Fit the horizontal to the large upright Push the horizontal onto the large upright Finished Use a screwdriver to front edge tighten the 2 large locking nuts fitted to the horizontal Finished front edge Step 13 Prepare the base Tap 2 wooden dowels into the base...
Page 11 Assembly Instructions Step 15 Prepare the left side Tap a wooden dowel into the left side Finished front edge Screw 3 metal dowels into the left side Fit 3 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.
Page 12 Assembly Instructions Step 17 Fit the right side Push the right side onto the base Polystyrene block Use a screwdriver to tighten the 2 large locking nuts fitted to the base Note: To make it easier Polystyrene block Polystyrene to fit the side and top block panels, place polystyrene blocks from the packaging...
Page 13 Assembly Instructions Step 20 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 3 large locking nuts fitted to the plinth and base Step 21 Fit the top Attach the top to the left side , right side and large upright...
Page 14 Assembly Instructions Step 22 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back panels Square up the unit by Note: Do not making sure that nail where the measurement x:x equals...
Page 15 Assembly Instructions Step 24 Fit the hanging rail and the drawers Starting with the bottom drawer, slide both the runners forward and locate the drawer sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners 2nd threaded hole...
Page 16 Assembly Instructions Step 26 Fit the hanging rail and the shelves Push the hanging rail into the rail holders fitted to the right side and large upright panels. Lower the 3 shelves down onto the shelf studs Step 27 Prepare the 3 doors Push fit 3 hinges into the centre door...
Page 17 Assembly Instructions Step 28 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
Page 18 Assembly Instructions Step 29 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
Page 19 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
Page 20 ALR2944...
