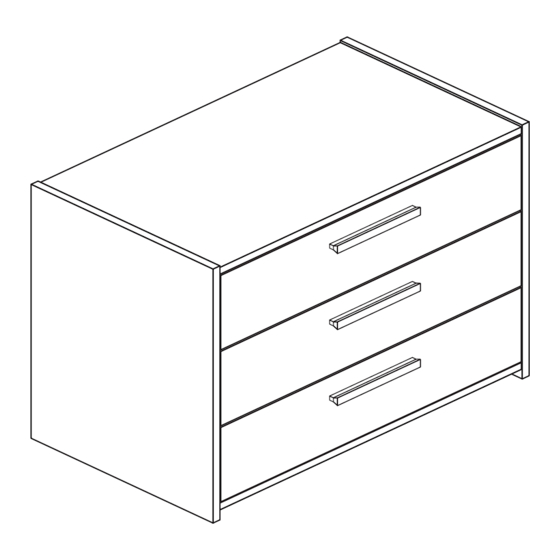

New Sywell - 3 Drawer Chest
Assembly Instructions -
Dimensions
Width - 69cm
Depth - 40cm
Height - 55.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
187/2354
171/7316
152/7001
157/7752
MADE IN
BRITAIN
Issue 2 - 25/11/13

Advertisement

loading
Need help?

Need help?

Do you have a question about the New Sywell 187/2354 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos New Sywell 187/2354

  • Page 1 New Sywell - 3 Drawer Chest Assembly Instructions - 187/2354 Please keep for future reference 171/7316 152/7001 157/7752 Dimensions Width - 69cm Depth - 40cm MADE IN Height - 55.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 25/11/13...
  • Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 18kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below 2 Right Side Left Side (D2547A) (D2548A) (D2546A) (553 x 396mm) (553 x 396mm) (658 x 394mm) Rail...
  • Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten the metal dowels up fully against...
  • Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back down onto the drawer base Make sure that the drawer base...
  • Page 7 Assembly Instructions Step 7 Prepare the left side Place 3 runners Finished the left side . Slide front edge back the top of the runner and use the 2nd hole from the front to fit the 1st screw Screw 4 metal dowels into the left side Slide the runner back the other way and...
  • Page 8 Assembly Instructions Step 9 Prepare the top Tap 2 wooden dowels into the top Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Finished front edge Insert 4 large locking nuts into the Note: The arrow on the...
  • Page 9 Assembly Instructions Step 12 Fit the 2 rails Push the 2 rails onto the right side Use a screwdriver to tighten the large locking fitted to each of the 2 rails Note: Support this rail until the left side has been fitted in the next step.
  • Page 10 Assembly Instructions Step 14 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
  • Page 11 Assembly is complete 2nd threaded hole If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
  • Page 12 ALR2919...
