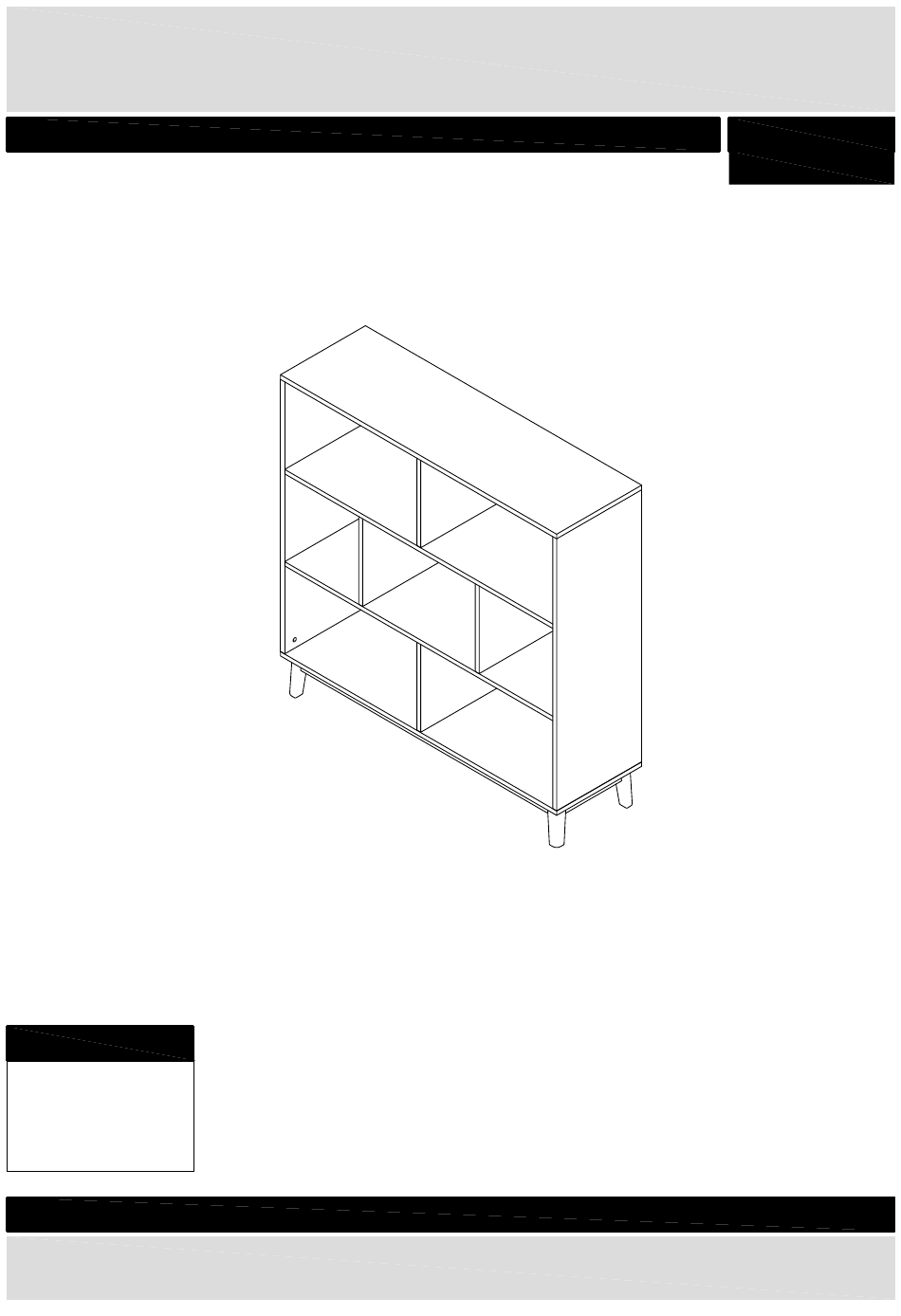

Merrick
Assembly Instructions
Dimensions
Width - 130cm
Depth - 40cm
Height - 130cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
14-3B-244_01
Storage
- Please keep for future reference
183/8587
214/7459
0845 077 8888
Issue 2 - 14/04/15
Advertisement
Related Manuals for Argos Merrick 183/8587
Summary of Contents for Argos Merrick 183/8587
- Page 1 Storage Merrick Assembly Instructions - Please keep for future reference 183/8587 214/7459 Dimensions Width - 130cm Depth - 40cm Height - 130cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 077 8888 14-3B-244_01 Issue 2 - 14/04/15...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • To reduce the components and tools listed on the product, this could cause likelihood of the following pages.
- Page 3 If you have damaged or missing commponents, Components - Panels call the Customer Helpline: 0845 077 8888 Please check you have all the panels listed below Top panel x 1 (40 x 130cm) Back panel x 4 (15 x 35,8cm) Side panel x 2 (39,9 x 110cm) Leg x 4 (4,6 x 15,7cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note : The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 8/30mm Wooden dowel x 40 Bolt x 40 Spanner 13mm x 1 Large locking nut x 40...
- Page 5 Assembly Instructions Step 1 Attaching legs Position the leg shown on the picture, place the washer U and fix the nut T using the spanner. Repeat assembly for the remaining legs. Step 2 Preparation for the Preparation for the attaching of side panels attaching of side panels ,vertical dividing...
- Page 6 Assembly Instructions Step 3 Preparation for the attaching of vertical dividing panels and back panels Insert screws E into the drilled holes of both fixed shelves 16 and 17 from both sides and fix them. Step 4 Preparation for the attaching of fixed shelves Insert screws E into the...
- Page 7 Assembly Instructions Step 5 Attaching central vertical dividing panels and back panel Insert wooden dowels B into the central vertical dividing panels 18 and back panel 5 and place them between fixed shelves 16 and 17. Insert large locking nuts G into the drilled holes in central dividing panels 18 and ba ck panel 5 and turn them...
- Page 8 Assembly Instructions Step 7 Attaching remaining vertical dividing panels and back panels Insert wooden dowels B into the vertical dividing panels 18 and back panels 5 and attache them as shown. Insert large locking nuts G into the drilled holes in vertical dividing panels 18 and back panels 5 and turn them clockwise to...
- Page 9 Assembly Instructions Step 8 Attaching base and top panel Insert wooden dowels B into the side panels 1 , vertical dividing panels 18 and back panels 5 and place the base 4 and top panel 3 as shown. Insert large locking nuts G into the drilled holes in side panels 1 , vertical dividing panels...
- Page 10 Assembly Instructions Step 10 Note: Wall fixings are not Fixing to wall supplied with this unit. It is recomended that the The correct type of fixing must chest is fixed to a wall. be used for your wall, seek professional advice if in doubt. Poke wall strap through the hole in the back panel and fix it to top...
- Page 11 A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
