DO GUIDE
DM-MD8X1-4K-C/HD-MD8X1-4K
4K Scaling Presentation Switchers
DO Install the Device
The DM-MD8X1-4K-C and HD-MD8X1-4K can be mounted into a rack, mounted under a table, or placed onto a fl at surface.
Mounting into a Rack

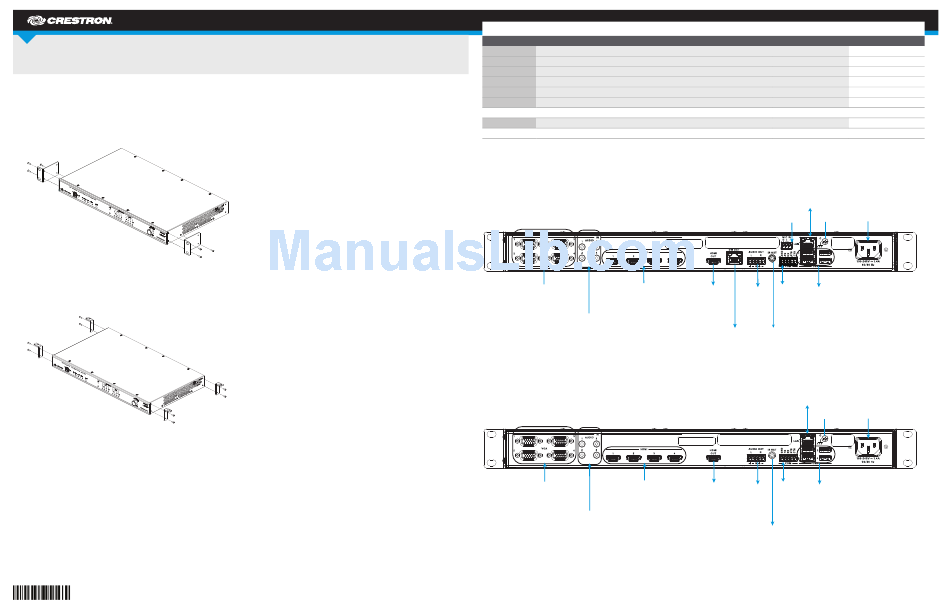

The DM-MD8X1-4K-C and HD-MD8X1-4K each occupy 1U of rack space. Using a #1 or #2 Phillips screwdriver, attach the two included rack ears to the
device. Then, mount the device into the rack using four mounting screws (not included). Refer to illustration .
 Mounting into a Rack
Mounting under a Table
Using a #1 or #2 Phillips screwdriver, attach the four included table mount brackets to the device. Then, attach the four table mount brackets to the
underside of the table using four mounting screws (not included). Refer to illustration .
 Mounting under a Table
Placing onto a Flat Surface
When placing the device onto a fl at surface or stacking it with other equipment, attach the included feet near the corners on the underside of the device.
DO Check the Box
QUANTITY PRODUCT
2 Bracket, Rack Ear, 1U
4 Bracket, Under Table Mount
2 Connector, 5-Pin
1 Emitter Probe, IR, Crestron ® STIRP
4 Foot, 0.5" x 0.5" x 0.23", Adhesive
1 Power Cord, 6' 7" (2 m)
DM-MD8X1-4K-C Only
1 Connector, 3-Pin
Not Included: Cables, Rack Mount Screws, and Table Mount Screws
DO Make Connections to the Rear Panel
Make connections to the rear panel of the device. For DM-MD8X1-4K-C rear panel connections, refer to illustration .
For HD-MD8X1-4K rear panel connections, refer to illustration .
 DM-MD8X1-4K-C Rear Panel Connections
From RGB (VGA), HDMI ® Digital
Component, S-video, or Video/Audio
Composite Video Sources Inputs
From Unbalanced
Stereo Line Level Analog
Audio Sources
 HD-MD8X1-4K Rear Panel Connections
From RGB (VGA), HDMI Digital
Component, S-video, or Video/Audio
Composite Video Sources Inputs
From Unbalanced
Stereo Line Level Analog
Audio Sources
COLOR PART NUMBER
2032122
2041951
2003577
2001137
Black 2002389
2001134
2003575
10BASE-T/100BASE-TX
Ethernet to Local Area
Network
From From 120 V
Microphone Ground Power Outlet
3
2 4
HDMI Digital Balanced/ To/From
To Crestron
Video/Audio Unbalanced RS-2332
TT-100 Series
Output Stereo Line Device
Presentation
Level Audio
Interfaces
Output
To Crestron
To DM 8G+™
STIRP IR
Receiver or Other
Emitter Probe
DM Device
or to HDBaseT (Included)
®
Device 1
10BASE-T/100BASE-TX
Ethernet to Local Area
Network
From 120 V
Power Outlet
Ground
HDMI Digital Balanced/ To/From
To Crestron
Video/Audio Unbalanced RS-2332
TT-100 Series
Output Stereo Line Device Presentation
Level Audio
Interfaces
Output
To Crestron
STIRP IR
Emitter Probe
(Included)
