Crestron HD-TX-201-C-2G-E Do Manual

DO

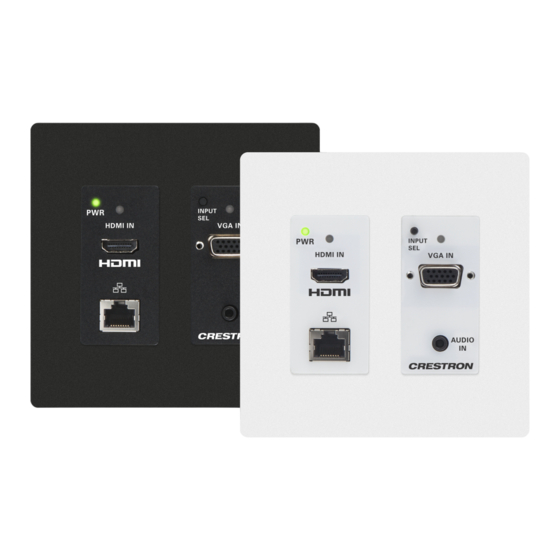

HD-TX-201-C-2G-E
DM Lite Multiformat Switch and Transmitter
DO

Install the Device

Install the device into a 2-gang electrical box (not included). A minimum mounting depth of 2 inches
(51 mm) is required.
To install the device:
1. On the rear of the device, make connections to the TO RX and Ethernet ports.
NOTES:
• For the 24 Vdc power connection, connect a power pack to either the transmitter or
a compatible receiver. Do not connect a power pack to both devices simultaneously.
Power is transmitted over the cable that connects the TO RX port on the transmitter to
the FROM RX port on the receiver.
A power pack is not included with the transmitter. When the transmitter is used with a
DM Lite surface-mount receiver, the transmitter receives power from the power pack
that ships with and connects to the receiver.
• Cabling that connects the TO RX port to the FROM TX port is designed for
intrabuilding use only.
TO RX:
To FROM TX
link input of
receiver
From power pack
(not included)
GUIDE
:
Passive
pass-through
to front panel
Ethernet port
24 V
1.25 A:
DO

Check the Box

QTY ITEM
4 Screw, 6-32 x 3/4", Truss Head, Combo
2. Using a Phillips screwdriver (not included), attach the device to the electrical box using the
four included #6-32 x 3/4-inch truss combo head screws.
3. Attach a decorator-style faceplate (sold separately) to the front panel of the device using
four screws (not included).
PART NUM.
2009211
