IO-Link INLINE DISPLAY 1.44" E30430

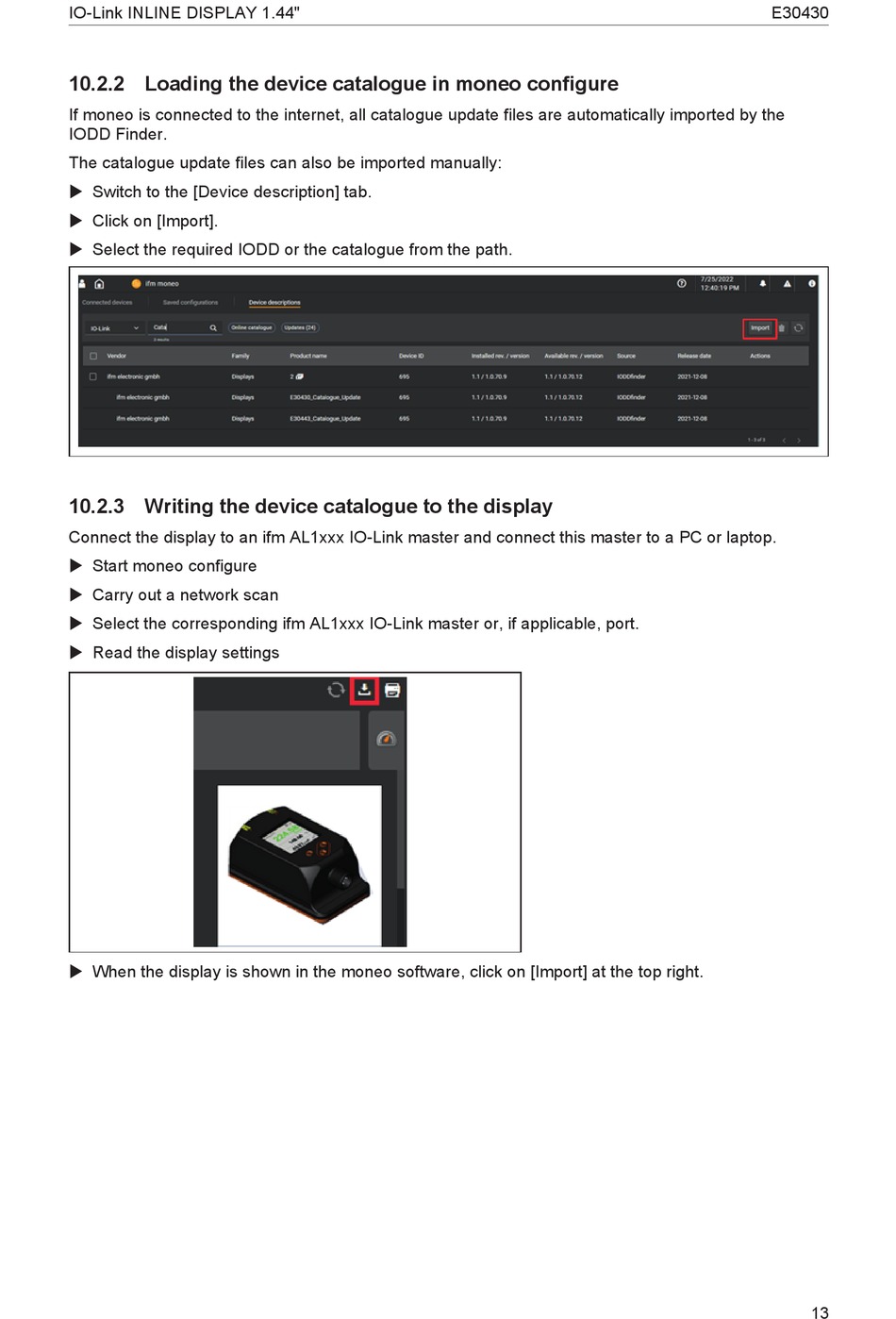

10.2.2 Loading the device catalogue in moneo configure
If moneo is connected to the internet, all catalogue update files are automatically imported by the
IODD Finder.
The catalogue update files can also be imported manually:
u Switch to the [Device description] tab.
u Click on [Import].
u Select the required IODD or the catalogue from the path.
10.2.3 Writing the device catalogue to the display
Connect the display to an ifm AL1xxx IO-Link master and connect this master to a PC or laptop.
u Start moneo configure
u Carry out a network scan
u Select the corresponding ifm AL1xxx IO-Link master or, if applicable, port.
u Read the display settings
u When the display is shown in the moneo software, click on [Import] at the top right.
13
