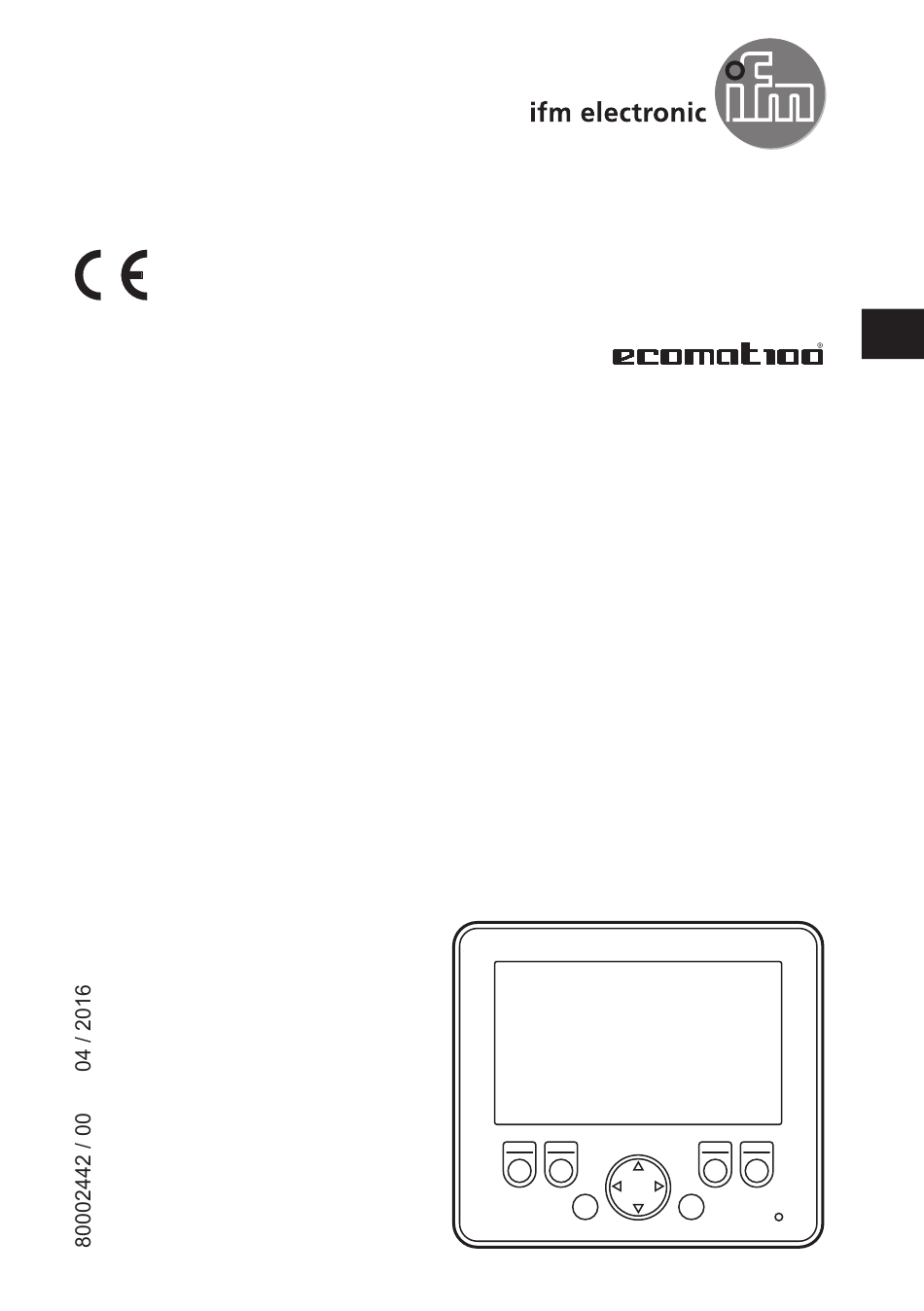

- Page 1 Installation instructions BasicDisplay XL CR0452...
-
Page 2: Table Of Contents
BasicDisplay XL Contents 1 Preliminary note ..........3 1.1 Symbols used. -
Page 3: Preliminary Note
BasicDisplay XL 1 Preliminary note This document applies to devices of the type "BasicDisplay XL" (art. no.: CR0452). It is deemed as a part of the unit. This document is intended for specialists. These specialists are people who are qualified by their appropriate training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device. -
Page 4: Safety Instructions
SELV voltage of which is not grounded. The connections may only be supplied with the signals indicated in the technical data and/or on the device label and only the approved accessories of ifm electronic may be connected. 2.4 Tampering with the device In case of malfunctions or uncertainties please contact the manufacturer. -
Page 5: Functions And Features

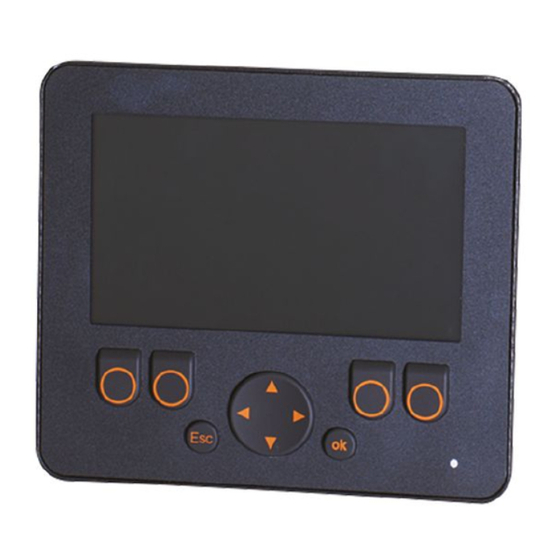

BasicDisplay XL 3 Functions and features BasicDisplay XL is a programmable graphic display for controlling, parameter- setting and operation of mobile machines and plants. Communication with other system components is ensured via a CAN interface. Application-specific extensions and adaptations are possible in conjunction with additional products of the modular ecomatmobile Basic products. - Page 6 ● RAM mount set (art.-no.: EC0406) ® For BasicDisplay XL CR0452 For information about the available ecomatmobile Basic series see: www.ifm.com → Product line → Systems for mobile machines or directly www.ifm.com → Data sheet search → e.g. CR0452 → Accessories...
-
Page 7: Installation
The device is supplied with an M52 nut. This nut is needed for panel and surface mounting. You can find more information about the available accessories at: www.ifm.com → Data sheet search → CR0452 → Accessories 4.2 Panel mounting Suitable for material thicknesses up to 3 mm. -
Page 8: Ram ® Mount
BasicDisplay XL 4.3 RAM mount ® Using the RAM mount set, available as accessories, the device can be used as a ® firmly mounted desktop unit. Two balls allow a variable orientation of the unit. 25,4 (1") mount set EC0406 Mounting plate with ball ®... -
Page 9: Surface Mounting
BasicDisplay XL 4.4 Surface mounting Suitable for material thicknesses up to 3 mm. ► Make a round cutout and hole for the locating pins. ► Remove the M52 nut from the device. ► Insert the device into the cutout. ► Screw the M52 nut onto the device and tighten by hand. ±0,5 Mounting principle Cutout and hole for locating pins... -
Page 10: Electrical Connection
Pin no. Fuse Supply voltage ≤ 2 A time-lag 5.3 Connection accessories You can find more information about the available accessories at: www.ifm.com → Data sheet search → e.g. CR0452 → Accessories 5.3.1 Example accessories CAN_H CAN_L BasicController BasicController BasicDisplay XL... -
Page 11: Display Elements
BasicDisplay XL 6 Display elements 1: Status LED Operating states (→ 8 Technical data) -
Page 12: Set-Up
● System manual BasicDisplay XL (alternatively as online help) The manuals can be downloaded from the internet: www.ifm.com → Data sheet search → CR0452 → More information CODESYS and BasicDisplay XL online help: www.ifm.com → Service → Download → Systems for mobile machines* *) Download area with registration 7.3 Required hardware... -
Page 13: Technical Data
Character sets Preinstalled: Arial, Lucida Console ( xed font sizes) for further information see the BasicDisplay XL manual www.ifm.com → Data sheet search → CR0452 → More information Mechanical data Dimensions (W x H x D) 124.5 x 109.5 x 39 mm Cutout for panel mounting (W x H) 114 ±... - Page 14 592 Kbytes RAM / 1536 Kbytes Flash / 1 Kbyte MRAM Memory allocation See BasicDisplay XL system manual www.ifm.com → Data sheet search → CR0452 → More information CAN interface 2.0 A/B, ISO 11898 Baud rate 20 Kbits/s...1 Mbit/s (default 250 Kbits/s) Communication pro...
- Page 15 Connection M12 connector, A-coded, 5 poles Wiring Supply, CAN n.c. 8...32 V DC CAN_H CAN_L ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR0452 / page 3 29.01.2014...
-
Page 16: Maintenance, Repair And Disposal
► Dispose of the device in accordance with the national environmental regulations. 10 Approvals/standards Test standards and regulations (→ 8 Technical data) The EC declaration of conformity and approvals can be found at: www.ifm.com → Data sheet search → CR0452 → More information → Certificates...
