Summary of Contents for Linak HB100

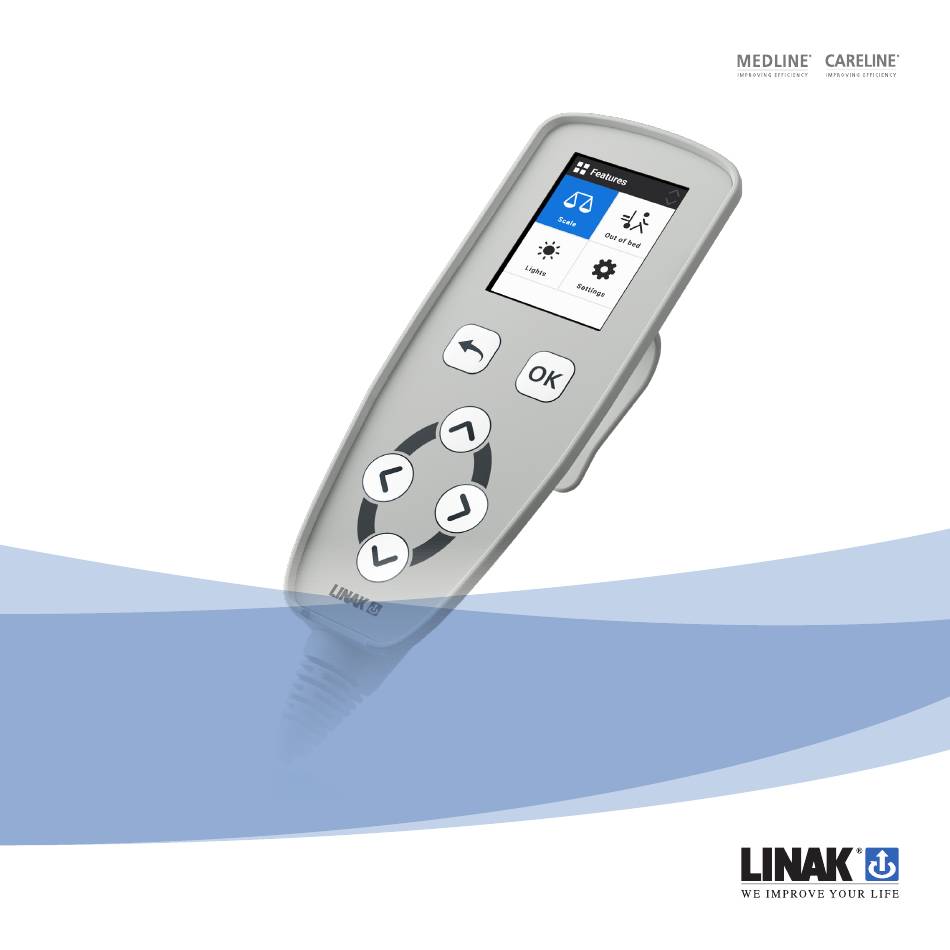

  • Page 1 HB100 Quick guide LINAK.COM/MEDLINE-CARELINE...

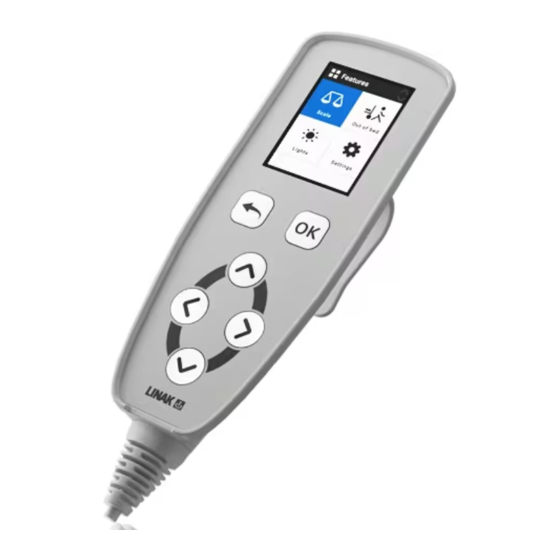

  • Page 2 ® with a full navigation menu keypad, thus allowing the display to be dynamic without physically having to change the hand control. The HB100 will automatically scan the system and only show the features available to create a user-friendly experience.
  • Page 3: Table Of Contents

    Table of contents Overview ....................General menu description ................ Main menu ..................List menu ..................Edit mode ..................Pop-ups ................... Scale ....................Out Of Bed ..................Lights ....................Settings ................... Feature descriptions ................Scan system..................Error list ..................
  • Page 4: Overview

    On the first HB100 start-up, and subsequently each time the power supply has been disconnected, an automatic scan of the systems starts after which the HB100 is then ready for use. The scan ensures that only connected devices are visible on the display.
  • Page 5: General Menu Description

    General menu description Main menu Features Features The main menu is divided into four tiles and can be navigated by the arrow keys. It can contain from 1 to X tiles, but only four can be seen at a time. If some features are hidden, they can be accessed by pressing the down key Scale Out of bed...
  • Page 6: Edit Mode

    Edit mode Out Of Bed The Edit mode is accessed through the List menu. The list will focus on the selected item and is navigated by using the up/down arrow keys. Press OK to 30 sec confirm choices or BACK to leave the menu without saving. 1 min 5 min 10 min...
  • Page 7: Scale

    Scale The Scale feature is used to monitor the patient weight. The Scale menu itself is a special list menu view with focus on showing the patient weight. The list contains up to four items, depending on calibration. • Scale on/off: Turns the feature on or off. •...
  • Page 8: Out Of Bed

    Out Of Bed The Out of Bed feature is used to set what happens when the patient leaves the bed. The Out Of Bed menu contains up to six items, depending on connected accessories. • Out Of Bed on/off: Turns the feature on or off. Features Out Of Bed Out Of Bed...
  • Page 9: Lights

    - About: It is possible to see the HB100 and QLCI2 SW numbers/versions. In addition to that, a verification of the scale system is done here too.
  • Page 10: Feature Descriptions

    ® the ones connected to the system. This means that it is possible to have the same HB100 for two different beds. The HB100 can scan the system and will only show the features connected. The Scan system function is placed under Settings - Advanced.
  • Page 11: Error List

    Error list Features Features Features If an error occurs, the system will disable the related function/-s and show an error describing what is wrong and what can be done to correct Scale Out of bed Scale Out of bed Lights Settings it.
  • Page 12 LINAK reserves the right to change its products without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. User is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
