Linak TR-EM-273 Quick Manual

Q U I C K G U I D E
Motorstyring / Motor Controller
Type TR-EM-273
Tilslutning /
Connection
EM-273 PCB v.3
1 2 3 4
10-35V
fuse
0V gnd
SUPPLY

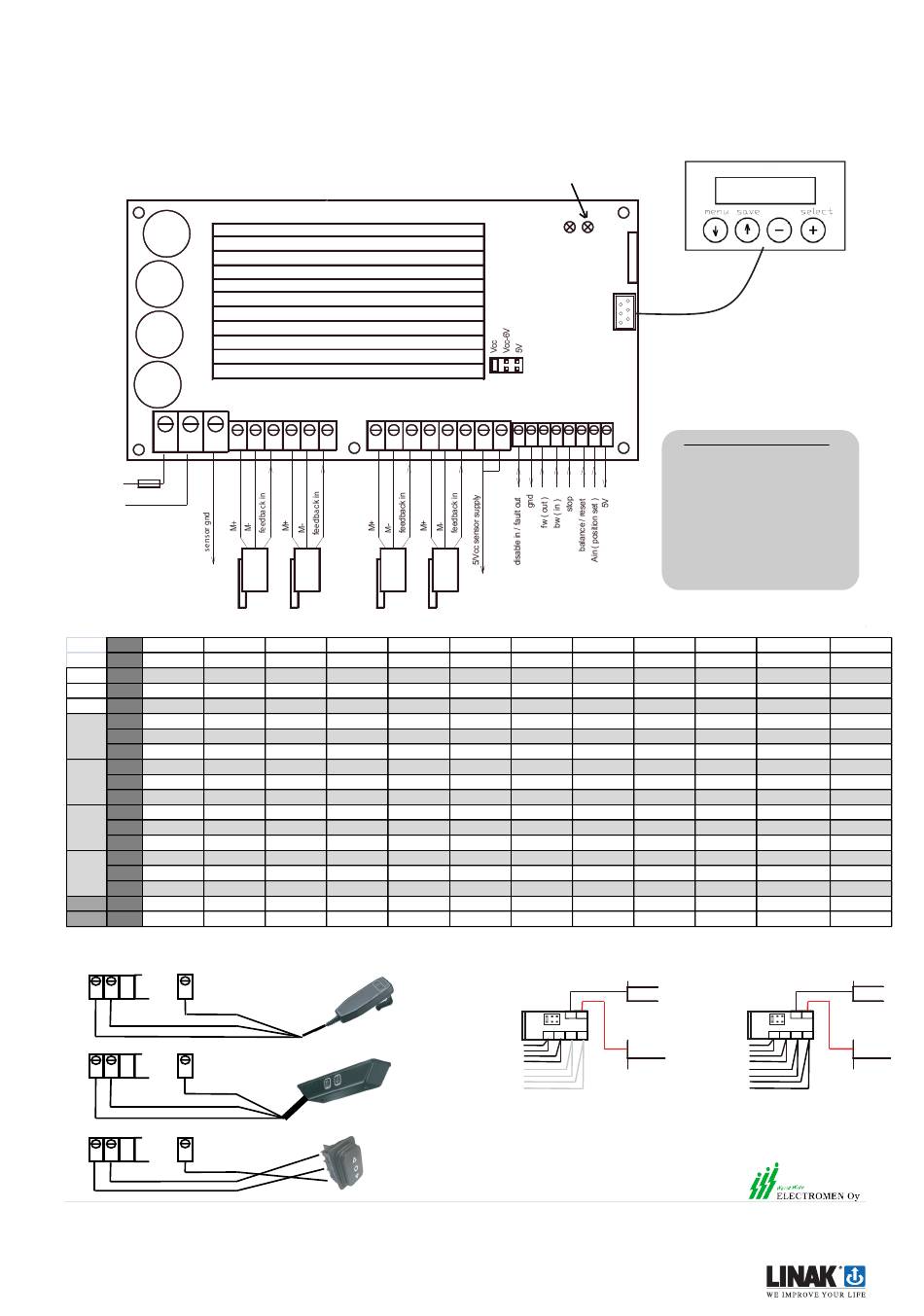

Tilslutning af aktuatorer ved hjælp af ledningsfarver /
LA12-Pot.
Terminal LA12-Reed
12xRxx-xxxx24xx 12xPxx-xxxx24xx 23xxxxxx02xxxBx 28xxRx-xxxxx0xxTungløft/Heavy lift30xxRx-xxxxx0xx 31xxxR-xxxxx0xx 32xxRx-xxxxx0xx 35xxxx+xHxxxBxx 36xxxx+xHxxxBxx 36xxxx+xP/BxxxBxx
R R
24V +
1
S S
0V -
2
S S
GND
3
R R
4
BL BL
Actuator 1
5
HV GU
6
R R
7
BL BL
Actuator 2
8
HV GU
9
R R
10
BL BL
Actuator 3
11
HV GU
12
R R
13
BL BL
Actuator 4
14
HV GU
15
none GR
Act. 1+2
16
none GR
Act. 3+4
17
Tilslutning af håndbetjening ved hjælp af ledningsfarver /
Connection of a handset by the help of wire colors
20 21 25
OR R
GR
20 21 25
BL
GR R
20 21 25
Specifikationerne kan ændre sig uden forudgående varsel. Det er brugerens ansvar at fastslå
LINAK produktets egnethed til en specifik applikation. LINAK vil ved levering ombytte/reparere
defekte produkter, som er dækket af garanti, hvis de straks returneres til LINAK Danmark A/S.
Der påtages intet ansvar udover denne ombytning/reparation.
Specifications subject to change without prior notice. It is the responsibility of the product user to
determine the suitability of the products for a specific application. LINAK Danmark will at point of
delivery replace/repair defective products covered by the warranty if promptly returned
to LINAK Danmark. No liability is assumed beyond such replacement/repair.
5 6 7 8 9 10 11 12 13 14
Connection of Actuators by the help of wire colors
LA23-Hall LA28-Reed LP2-Reed
R R R
S S S
S none none
BR S S
BL BR BR
GU BL BL
BR S S
BL BR BR
GU BL BL
BR S S
BL BR BR
GU BL BL
BR S S
BL BR BR
GU BL BL
R none none
R none none
HB41, TP1
DP1E; TP1E
Rocker
1A
1
1B
Fejl LED / Error LED
1
POWER RUN /
FAULT
sensor supply
select
19 20 21 22 23 24 25
18
15 16 17
LA30-Reed LA31-Reed LA32-Reed
R R R
S S S
none S none
S BL S
BR R BR
BL HV BL
S BL S
BR R BR
BL HV BL
S BL S
BR R BR
BL HV BL
S BL S
BR R BR
BL HV BL
none none none
none none none
Note 1)
Regulator anvendes hvis trafo-spænding overstiger 24V
Use regulator when trafo-power exceeds 24V
LA35 Hall
EM-311-DK
-
+
12V
- -
+ +
Act. 1 - S
Act. 2 - S
Act. 3 - S
Act. 4 - S
Act. 1 - HV
Act. 2 - HV
Act. 3 - HV
Act. 4 - HV
Note 2)
Til aktuatorer produceret før d.15-10-2014 anvend Hvid leder
Use the White wire for Actuators produced before 15-10-2014
