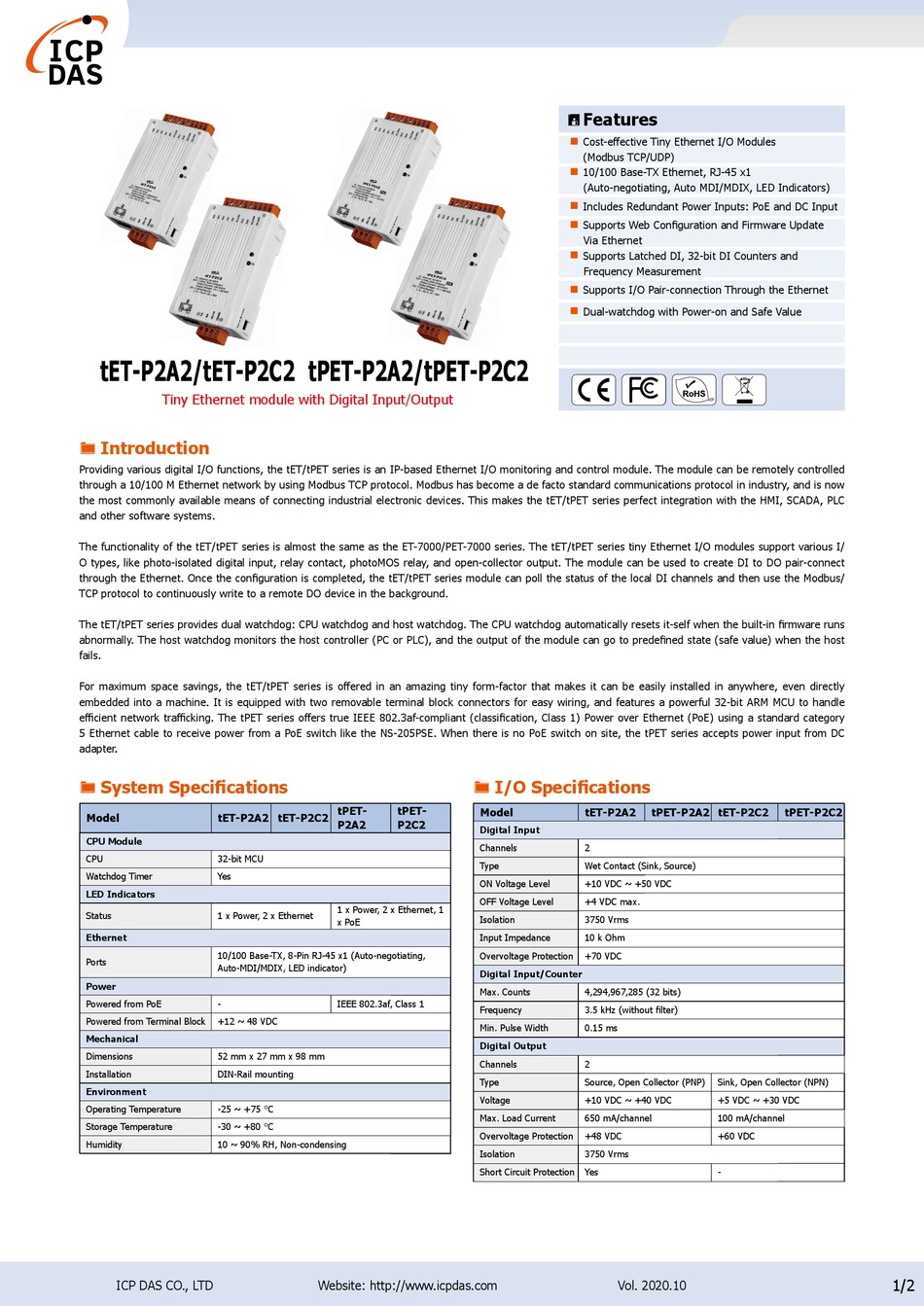

tET-P2A2/tET-P2C2 tPET-P2A2/tPET-P2C2
Tiny Ethernet module with Digital Input/Output
 Introduction
Providing various digital I/O functions, the tET/tPET series is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled
through a 10/100 M Ethernet network by using Modbus TCP protocol. Modbus has become a de facto standard communications protocol in industry, and is now
the most commonly available means of connecting industrial electronic devices. This makes the tET/tPET series perfect integration with the HMI, SCADA, PLC
and other software systems.
The functionality of the tET/tPET series is almost the same as the ET-7000/PET-7000 series. The tET/tPET series tiny Ethernet I/O modules support various I/
O types, like photo-isolated digital input, relay contact, photoMOS relay, and open-collector output. The module can be used to create DI to DO pair-connect
through the Ethernet. Once the confi guration is completed, the tET/tPET series module can poll the status of the local DI channels and then use the Modbus/
TCP protocol to continuously write to a remote DO device in the background.
The tET/tPET series provides dual watchdog: CPU watchdog and host watchdog. The CPU watchdog automatically resets it-self when the built-in fi rmware runs
abnormally. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to predefi ned state (safe value) when the host
fails.
For maximum space savings, the tET/tPET series is off ered in an amazing tiny form-factor that makes it can be easily installed in anywhere, even directly
embedded into a machine. It is equipped with two removable terminal block connectors for easy wiring, and features a powerful 32-bit ARM MCU to handle
effi cient network traffi cking. The tPET series off ers true IEEE 802.3af-compliant (classifi cation, Class 1) Power over Ethernet (PoE) using a standard category
5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. When there is no PoE switch on site, the tPET series accepts power input from DC
adapter.
 System Specifi cations
Model tET-P2A2 tET-P2C2
CPU Module
CPU 32-bit MCU
Watchdog Timer Yes
LED Indicators
Status 1 x Power, 2 x Ethernet
Ethernet
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating,
Ports
Auto-MDI/MDIX, LED indicator)
Power
Powered from PoE -
Powered from Terminal Block +12 ~ 48 VDC
Mechanical
Dimensions 52 mm x 27 mm x 98 mm
Installation DIN-Rail mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
ICP DAS CO., LTD
 I/O Specifi cations
tPET- tPET-
Model
P2A2 P2C2
Digital Input
Channels
Type
ON Voltage Level
OFF Voltage Level
1 x Power, 2 x Ethernet, 1
Isolation
x PoE
Input Impedance
Overvoltage Protection
Digital Input/Counter
Max. Counts
IEEE 802.3af, Class 1
Frequency
Min. Pulse Width
Digital Output
Channels
Type
Voltage
Max. Load Current
Overvoltage Protection
Isolation
Short Circuit Protection
Website: http://www.icpdas.com
Features
Cost-eff ective Tiny Ethernet I/O Modules

(Modbus TCP/UDP)
10/100 Base-TX Ethernet, RJ-45 x1

(Auto-negotiating, Auto MDI/MDIX, LED Indicators)
Includes Redundant Power Inputs: PoE and DC Input

Supports Web Confi guration and Firmware Update

Via Ethernet
Supports Latched DI, 32-bit DI Counters and

Frequency Measurement
Supports I/O Pair-connection Through the Ethernet

Dual-watchdog with Power-on and Safe Value

tET-P2A2 tPET-P2A2 tET-P2C2
2
Wet Contact (Sink, Source)
+10 VDC ~ +50 VDC
+4 VDC max.
3750 Vrms
10 k Ohm
+70 VDC
4,294,967,285 (32 bits)
3.5 kHz (without fi lter)
0.15 ms
2
Source, Open Collector (PNP) Sink, Open Collector (NPN)
+10 VDC ~ +40 VDC +5 VDC ~ +30 VDC
650 mA/channel 100 mA/channel
+48 VDC +60 VDC
3750 Vrms
Yes -
Vol. 2020.10
tPET-P2C2
1/2
