Summary of Contents for MONARCH INSTRUMENT RCA

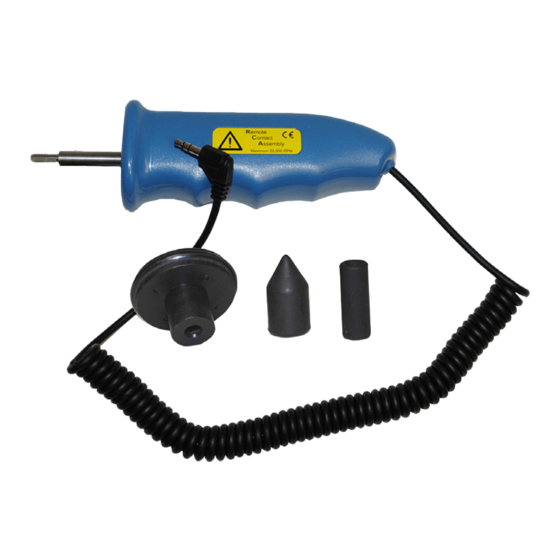

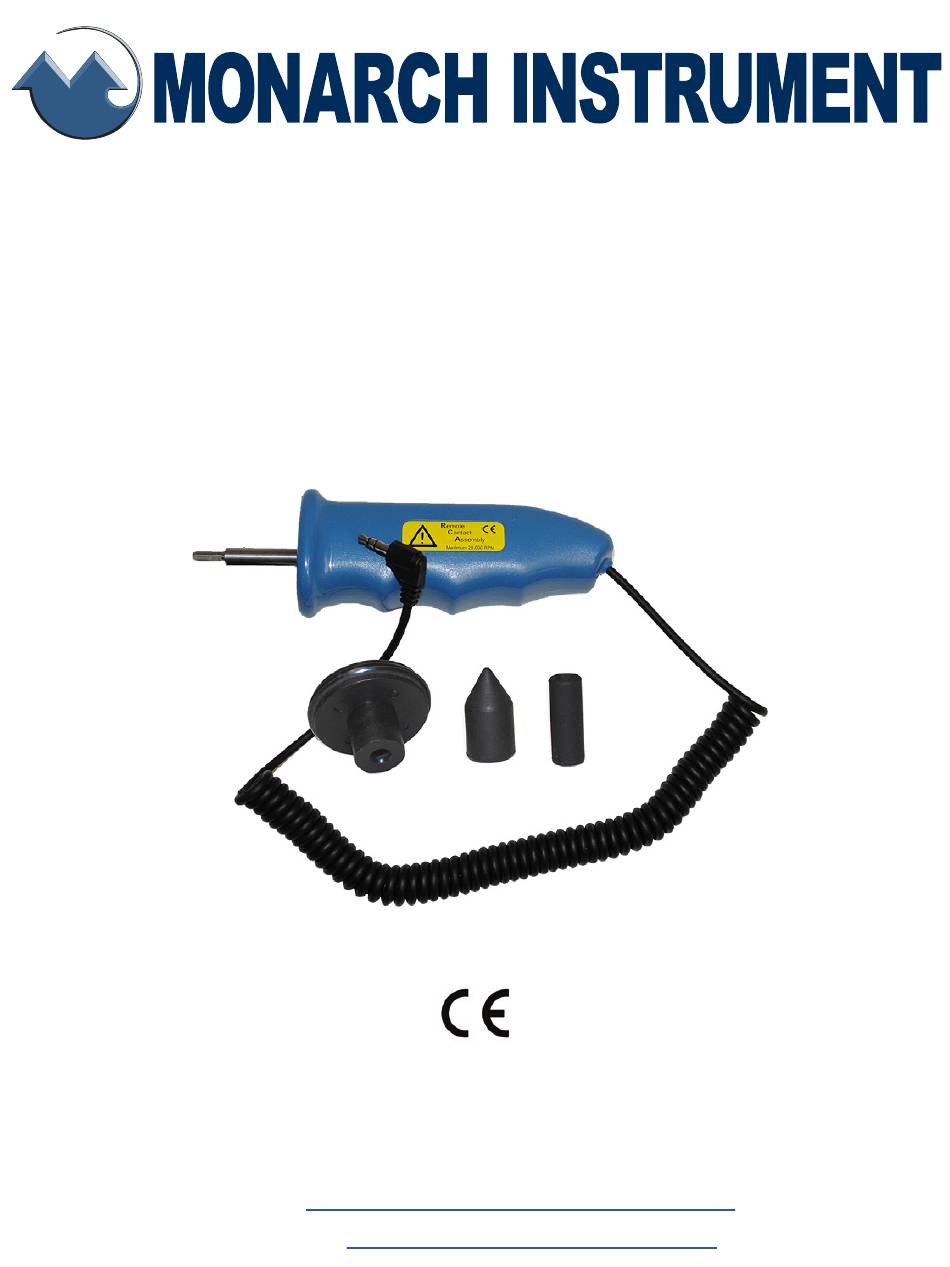

- Page 1 Instruction Manual Remote Contact Assembly (RCA) 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 WARNING: Making measurements in direct contact with rotating equipment can be dangerous. Keep all loose clothing and hair away from exposed moving machinery. Keep the hand holding the RCA well behind the front flange of the Remote Contact Assembly. Properly replace all the machinery guards after completing measurement.
- Page 3 2.1 Connection Detail ........1 3.0 ROTATIONAL SPEED MEASUREMENTS ..2 4.0 LINEAR MEASUREMENTS ......3 5.0 ACCESSORIES ..........4 Monarch Instrument’s Limited Warranty applies. www.monarchinstrument.com for details. Warranty Registration and Extended Warranty Coverage information is available online at www.monarchinstrument.com.
- Page 4 When used with the Monarch Pocket Laser Tach 200, the unit outputs 12 pulses per revolution (PPR). The maximum operating range of the RCA is 20,000 RPM when used with a contact tip and 12,000 RPM when used with a linear wheel.
- Page 5 Keep the hand holding the RCA well behind the back edge of the front flange of the RCA. Use only a moderate amount of pressure to keep the rubber tip in...
- Page 6 Rate (Linear Contact) or Total mode on the tachometer and set the wheel size [10 cm or 12 in.]. Hold the RCA at a right angle (90 degrees) to the direction of movement and gently contact the rubber edge of the wheel against the belt or top surface of the object to be measured.
- Page 7 (at 90°) to both the measurement plane and the direction of travel. Only a very moderate amount of pressure is required. Excess pressure can load the RCA shaft causing an erroneous reading and eventual wear in the bearings of the RCA.
- Page 8 THE PROFESSIONAL’S CHOICE Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Frequency Portable Strobes Fixed Mounted Converters Strobes DataChart ™ Paperless Speed Sensors Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax: (603) 886-3300...
