  • Page 1 Nova-Pro ® Laser Module and Laser Module Dock User Manual and Installation Guide Nova-Pro Model 100 Using the optional Laser Module Nova-Pro Models 300 & 500 Using the remote Laser Module and Docking Station 15 Columbia Drive • Amherst, NH 03031 • www.monarchinstrument.com...
  • Page 2: Table Of Contents

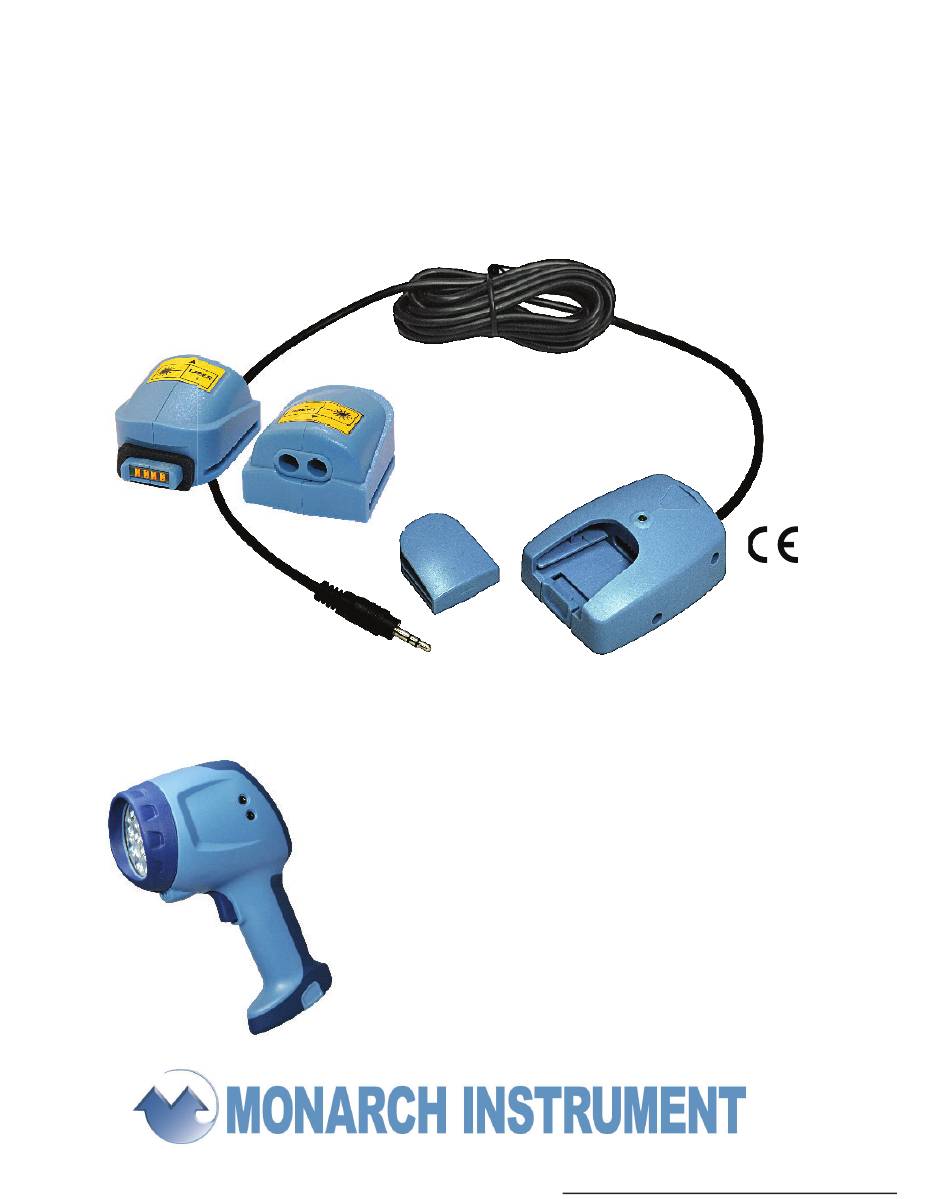

    Laser Module [part number 6281-020] Models 100 (optional) 300 & 500 (included). Precautions The Nova-Pro 100 model has an optional laser module Diode Laser: that can be installed in the stroboscope to make it a fully- Max. output power: <1 milliwatt functional strobe/non-contact tachometer.
  • Page 3: Setup

    the strobe’s freeze-frame illusion capabilities. Remember, 2) The Laser Module can be slid into or out of its mount- moving objects always present a danger especially when ing with direct pressure on the bottom of the module. appearing to be stopped by a strobe fl ash. When replacing the module into the strobe cradle make sure it is completely seated before replacing the dark blue The Laser Module Dock and the Laser Module can be purchased...
  • Page 4: Laser Module Configurations

    LASER MODULE CONFIGURATIONS STROBE DELAY (Model 500 only) The Laser Module When you position the laser trigger source and refl ection away uses a focused laser from the strobe’s fl ash point and viewing, you can see differ- beam and refl ection ent locations in the rotation.
  • Page 5 Check out some of our other product lines… Handheld Panel Portable Machine Vision Tachometers Tachometers Stroboscopes Stroboscopes Speed Sensors Temperature/ Vibration Meters Humidity Sensors Paperless Recorders Track-It™ Data Loggers Printed in the U.S.A. © Copyright 2018 Monarch Instrument, all rights reserved. 1071- 4281-110 - 0819...
