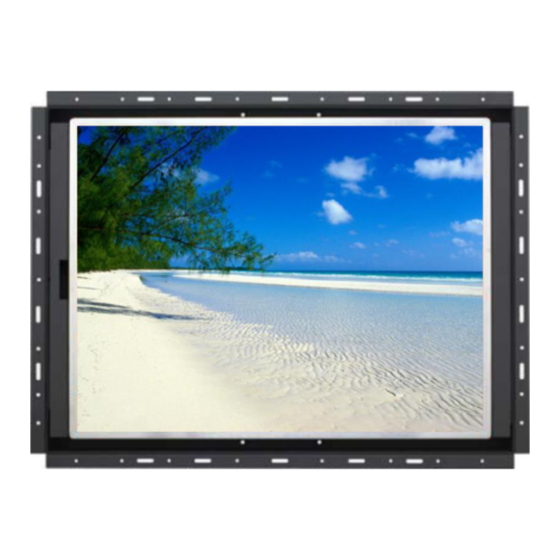

Synergy Global Technology ID-20A User Manual
  1. Manuals
  2. Brands
  3. Synergy Global Technology Manuals
  4. Monitor
  5. ID-20A
  6. User manual

Synergy Global Technology ID-20A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-20A and is the answer not in the manual?

Questions and answers

Related Manuals for Synergy Global Technology ID-20A

Summary of Contents for Synergy Global Technology ID-20A

  • Page 2 User Manual 20” LCD ID-20A Aluminum front bezel ID-20AN Front NEMA4 / IP65 ID-20D Aluminum front cover ID-20P Universal Mounting Open Frame...
  • Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-20A / ID-20AN Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > ID-20D Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 >...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Id-20A / Id-20An

    < Part 1 > ID-20A / ID-20AN 20” LCD Display < 1.1 > Package Content ID-20A / ID-20AN 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack...

  • Page 7: Structure Diagram & Dimension

    Audio speaker ( for HDMI, Audio or TV option ) LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) ID-20A 512.5 x 72.1 x 391.6 mm 7 kg ID-20AN 20.2 x 2.8 x 15.4 inch 15.4 lb www.RackmountMart.com...
  • Page 8 < 1.2 > Dimension 20” LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 9 < 1.3 > Installation ( I ) Panel mount ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. PT-BK-IDA Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 10: Id-20D

    < Part 2 > ID-20D 20” LCD Display < 2.1 > Package Content ID-20D 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D BNC upgrade I/O Audio Power S-Video DVI-D...

  • Page 11: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Front view Side View Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Model Net Weight (W x D x H) 481.5 x 67.4 x 360.6 mm 6.5 kg ID-20D 19 x 2.7 x 14.2 inch...
  • Page 12 < 2.2 > Dimension 20” LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 13 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.RackmountMart.com...

  • Page 14: Id-20P

    < Part 3 > ID-20P 20” LCD Display < 3.1 > Package Content ID-20P 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D BNC upgrade I/O Audio Power S-Video DVI-D...

  • Page 15: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View Bottom view Rear case LCD panel Audio speaker ( for HDMI, Audio or TV option ) Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model Net Weight...
  • Page 16 < 3.2 > Dimension 20” LCD Display Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View P.11 www.RackmountMart.com...
  • Page 17 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided P.12 www.RackmountMart.com...

  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 20” LCD Display Mechanical Design ID-20A ID-20AN ID-20D ID-20P Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 19 < 4.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...

  • Page 20: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 20” LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...

  • Page 21: Option Table

    < Part 5 > Option < 5.1 > Option Table Options A / AN ✓ ✓ ✓ SDI *** ✓ ✓ ✓ HDMI * or DVI-D ✓ ✓ ✓ S-Video * + Composite ( BNC ) ✓ ✓ ✓ Audio ✓...

  • Page 22: Hd / Sd-Sdi Input

    < 5.2 > Options : 3G / HD / SD-SDI input 20” LCD Display Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.

  • Page 23: Bnc Hdmi

    More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Synergy Global Technology provides MC solution to control the OSD of various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the Þ...
  • Page 24 < 5.4 > Options : 20” LCD Display BNC Upgrade Options - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...

  • Page 25: Adh

    < 5.5 > ADH Upgrade Options : - HMDI ( HDMI 1.3, CEA-861-D - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...

  • Page 26: Resistive ( 1-Point Touch )

    < 5.6 > Options : Touchscreen & driver 20” LCD Display 20" USB Touchscreen Specifi cation Model Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤...
  • Page 27 < 5.6 > Options : Touchscreen & driver 20” LCD Display TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : https://www.rackmountmart.com/downloads.html Step 2.
  • Page 28 < 5.7 > Options : DC Power 20” LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA...

  • Page 29: Mil-Type Or Lockable Connector

    < 5.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design ß...

  • Page 30: Tv ( Analog )

    < 5.9 > Options : TV ( Analog ) 20” LCD Display Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and remote controller.
  • Page 31 How to Use Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Synergy Global Technology Inc. All rights reserved. P.27 www.RackmountMart.com...
