OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
Ethernet Y.1564 Layer 2 Multiple Streams
This quick card describes how to configure and run an Y.1564 Layer 2 Multiple Streams Test for Metro
Ethernet service activation using the OneAdvisor 1000 100G Module.
•
OneAdvisor 1000 equipped with the following:
100G Transport Module
o
BERT software release V30.1.0 or greater
o
C510GELAN test option for 10 Gigabit Ethernet
o
C525GE test option for 25 Gigabit Ethernet
o
C540GE test option for 40 Gigabit Ethernet
o
C550GE test option for 50 Gigabit Ethernet
o
C5100GE test option for 100 Gigabit Ethernet
o
•
Optical Transceiver supporting the interface to be tested
(SFP or QSFP)
•
Cables to match the optical transceiver and the line under test
•
Fiber optic inspection microscope (P5000i or FiberChek Probe)
•
Fiber optic cleaning supplies
L A U N C H T E S T
Press the Power button
1.
OneAdvisor.
Press the 100G Module Test icon
2.
at the top of the screen.
Tap the Power button
3.
to launch the 100G Module.
Using the Select Test menu, Quick Launch
4.
menu, or Job Manager, launch the Ethernet
Y.1564 Layer 2 Traffic test on Port 1 for the
desired rate. For Example:
Ethernet►1GigE Optical ► Y.1564 SAMComplete
►L2 Multiple Streams ►P1 Terminate.
Tap the button next to "Start a New
5.
Configuration (reset to defaults)"
OneAdvisor 1000 High-Speed Network Testing Platform
to turn on the
and click
VIAVI//Public

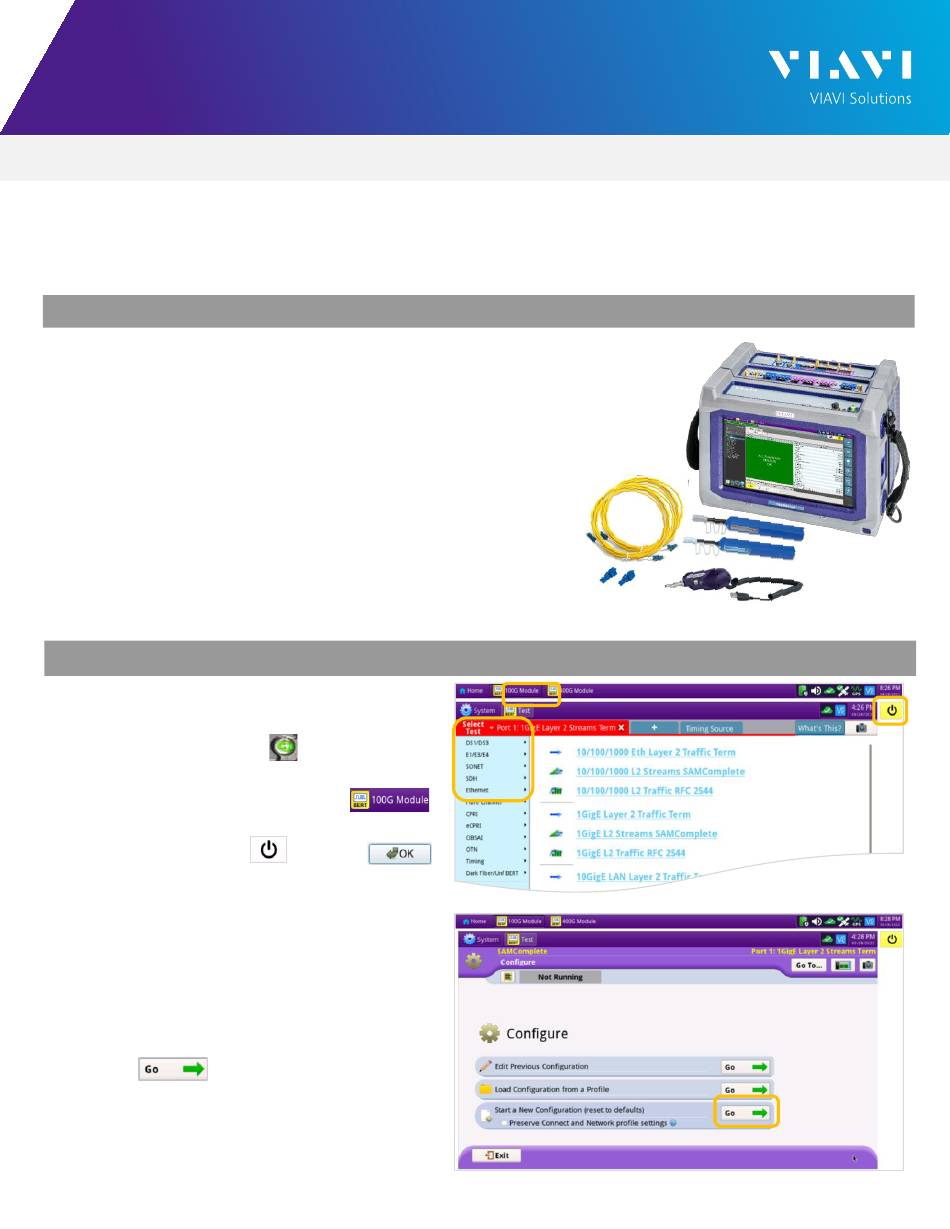

Figure 1: Equipment Requirements
Figure 2: Launch Screen
Figure 3: Y.1564 test
