ONA-800 Quick Start Guide
Unpacking and inspecting the components
When unpacking the components, verify that all the items you ordered are
included in the package. Accessories might be shipped in a separate box.
Before using the unit for the first time, inspect its components to verify
that no damage occurred during shipping. Examine the connectors, ports,
LEDs, and screen for damage. Be sure to check the top, bottom, and front
panels. If you find damage, contact Viavi Customer Care at 1-844-GO-
VIAVI (+1-844-468-4284) or at TAC@viavisolutions.com. Consider saving
the box and packing materials for future use.

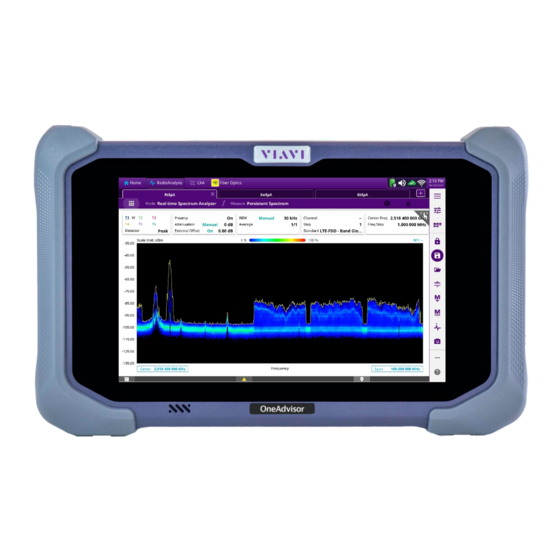

About the base unit
The base unit supports modules that can be added and removed as re-
quired. Powered by either external AC power or battery, the unit also fea-
tures an LCD touchscreen for quick access to the touch-based user inter-
face.
ONA-800 Quick Start Guide 22142809 R003

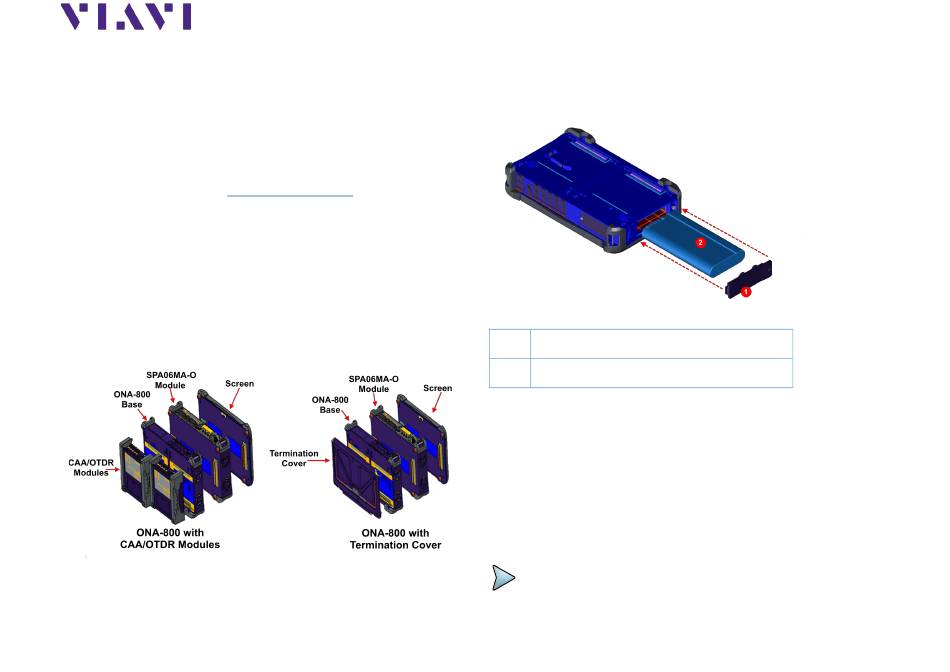

Installing the battery
1 Battery access door
2 Field-replaceable lithium ion battery
Powering the unit
The base unit with all modules installed operates from 19-27V DC and can
operate supplied by the 19V DC, 160W AC power adapter shipped with the
unit. The nominal input ratings of the power adapter are 100-240V AC, 50-
60Hz and it auto-ranges between 90-264V AC and 47-63Hz. The mains sup-
ply cord used with the power adapter shall be of grounded type with connec-
tion to protective earth.
NOTE:
The base unit has no user-serviceable internal fuse and must be
returned to VIAVI for service if needed.
1 June 2020
