OneAdvisor 1000 High-Speed Network Testing Platform

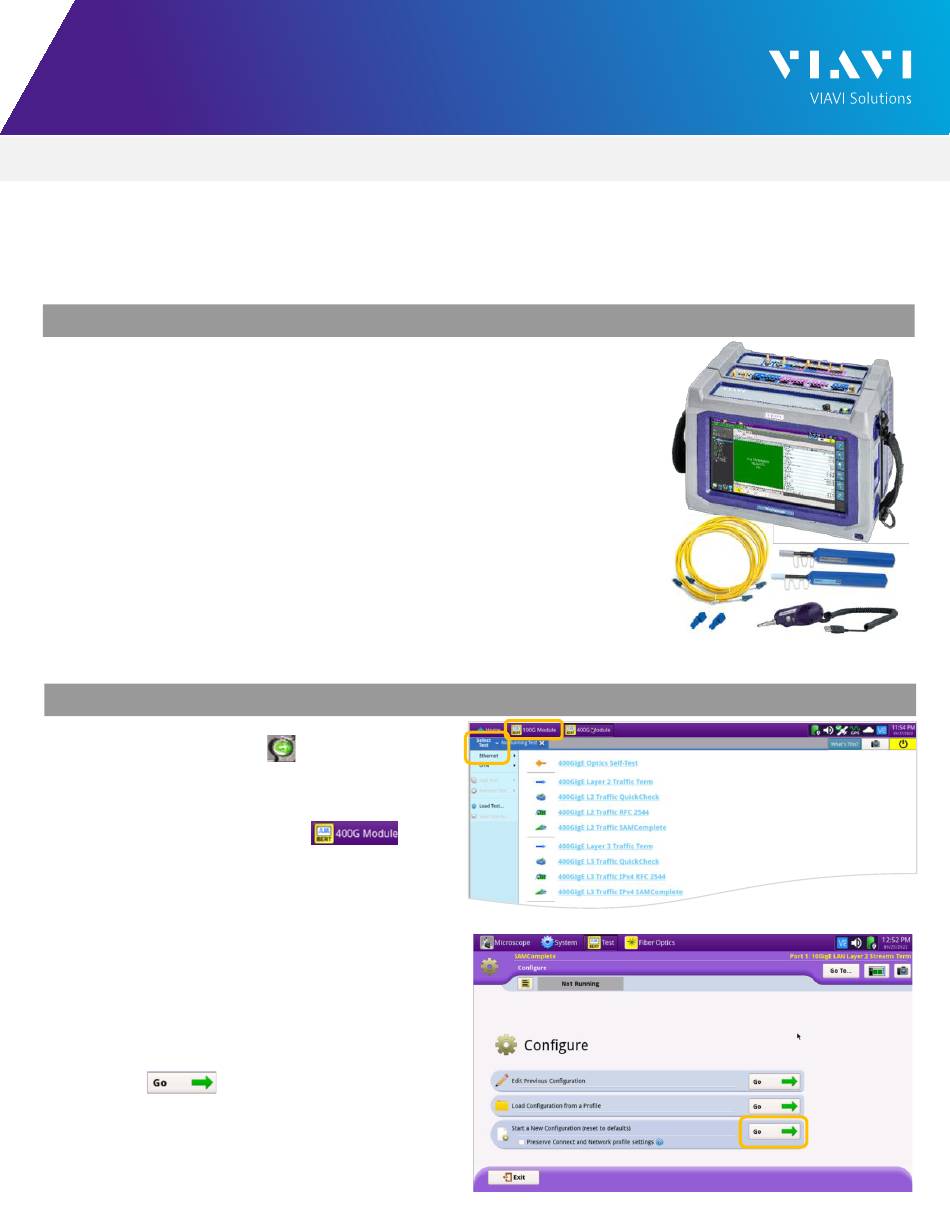

Q UI CK CA RD
Ethernet Y.1564 Layer 2 Traffic
This quick card describes how to configure and run a Y.1564 Layer 2 Traffic Test for Metro
Ethernet service activation.
•
OneAdvisor 1000 400G Module equipped with the following:
Transport software release V3.1.0 or greater
o
CA10M1GE test option for 10 Megabit to 1 Gigabit Ethernet
o
CA10GELAN test option for 10 Gigabit Ethernet
o
CA25GE test option for 25 Gigabit Ethernet
o
CA40GE test option for 40 Gigabit Ethernet
o
CA50GE test option for 50 Gigabit Ethernet
o
CA100GE test option for 100 Gigabit Ethernet
o
CA200GE test option for 200 Gigabit Ethernet
o
CA400GE test option for 400 Gigabit Ethernet
o
•
Optical Transceiver supporting the line rate to be tested (SFP or QSFP)
•
Cables to match the optical transceiver and the line under test
•
Fiber optic inspection microscope (P5000i or FiberChek Probe)
•
Fiber optic cleaning supplies
L A U N C H T E S T
Press the Power button
1.
OneAdvisor.
Press the 400G Module icon
2.
screen top to display the Launch Screen.
Using the Select Test menu, Quick Launch
3.
menu, or Job Manager, launch the Ethernet
Y.1564 SAMComplete Multiple Streams test on
Port 1 for the desired rate. For Example:
Ethernet ►1GigE Optical ►Y.1564 SAMComplete
►L2 Traffic ►P1 Terminate.
Tap the
4.
Configuration (reset to defaults)"
OneAdvisor/ 1000 Portable Network Tester
to turn on the
at the
button next to "Start a New
Figure 3: Y.1564 SAMComplete test
VIAVI//Public
Figure 1: Equipment Requirements
Figure 2: Launch Screen
