T1 Bit Error Rate Testing (BERT)
This quick card describes how to configure and run a T1 Bit Error Rate Test to a hard loop,
or another similarly configured VIAVI Test Instrument.
•
OneAdvisor 1000 equipped with the following:
100G Transport Module
o
BERT software release V30.1.0 or greater
o
C5E1DS1 test option: E1/DS1 Electrical
o
C5DUALPORT test option
o
•
One of the following T1 cable sets to connect the
100G Transport Module DS1 Port(s) to the line under test:
Dual Bantam to RJ-48C cable (CB-41645)
o
RJ-48C Patch cable (Straight-through or cross-over
o
depending upon equipment under test)
L A U N C H T E S T
Press the Power button
1.
OneAdvisor.
Press the 100G Module Test icon
2.
at the top of the screen.
Tap the Power button
3.
to launch the 100G Module.
Using the Select Test menu, Quick Launch
4.
menu, or Job Manager, launch the
DS1/DS3►DS1►DS1 BERT►Terminate
test.
OneAdvisor 1000 High-Speed Network Testing Platform
to turn on the
and click
VIAVI//Public

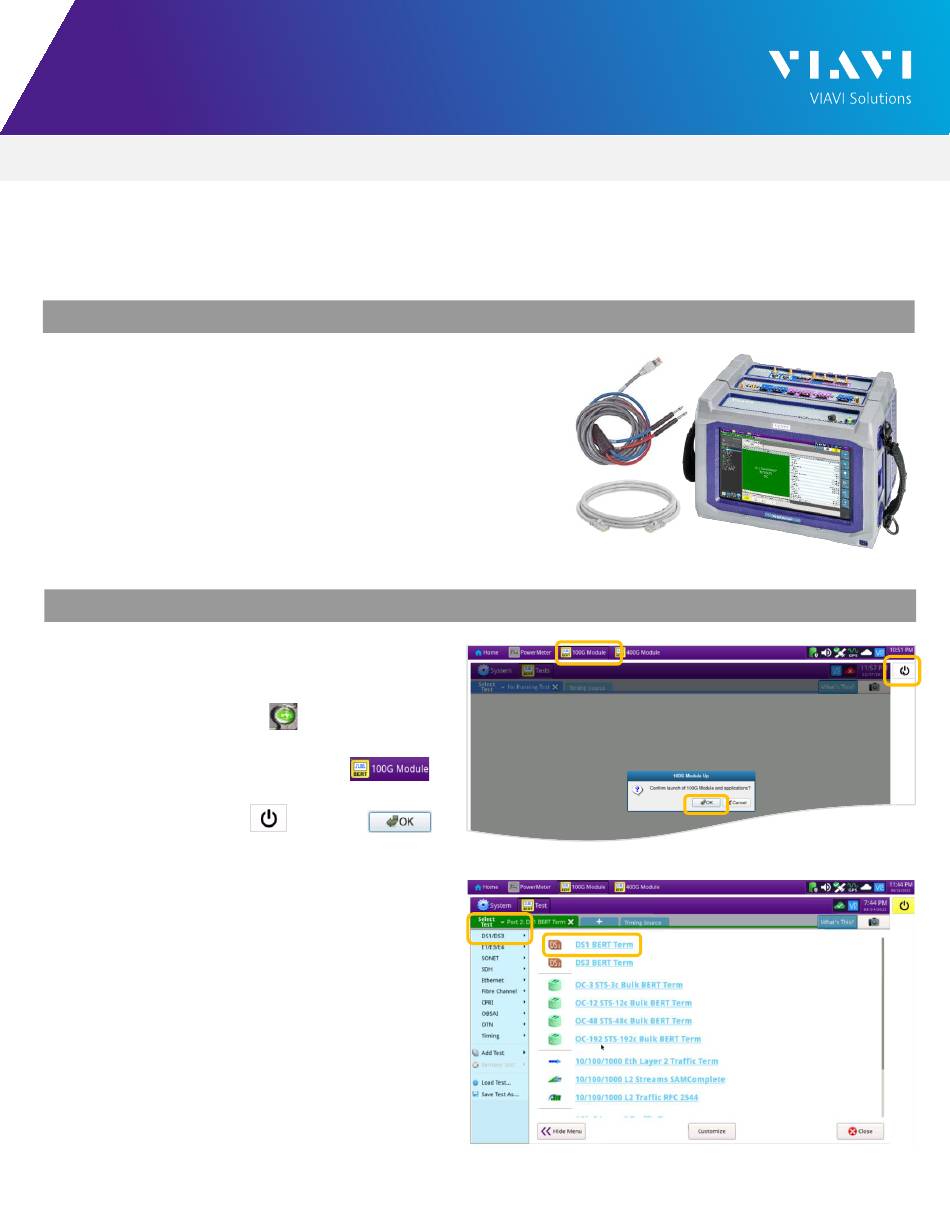

Figure 1: Equipment Requirements
Figure 2: Launch 100G Module
Figure 3: Launch Test
