OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
DS3 Bit Error Rate Testing (BERT)
This quick card describes how to configure and run a DS3 Bit Error Rate Test to a hard
loop, or another similarly configured VIAVI Test Instrument.
•
OneAdvisor 1000 equipped with the following:
100G Transport Module
o
BERT software release V30.1.0 or greater
o
C5DS3STS1 test option: DS3/STS-1 Electrical
o
C5DUALPORT test option
o
•
Two (2) mini-BNC to BNC adapters (CB-MINITOBNCQTY1)
•
One of the following DS3 cable sets to connect the
T-BERD 5800 DS3 Port(s) to the line under test:
Two (2) BNC to BNC cables (CB-30662)
o
Two (2) BNC to WECO 440A cables (CB-015837)
o
L A U N C H T E S T
Press the Power button
1.
OneAdvisor.
Press the 100G Module Test icon
2.
at the top of the screen.
Tap the Power button
3.
to launch the 100G Module.
Using the Select Test menu, Quick Launch
4.
menu, or Job Manager, launch the
DS1/DS3►DS3►DS3 BERT►Terminate
test.
OneAdvisor 1000 High-Speed Network Testing Platform
to turn on the
and click
VIAVI//Public

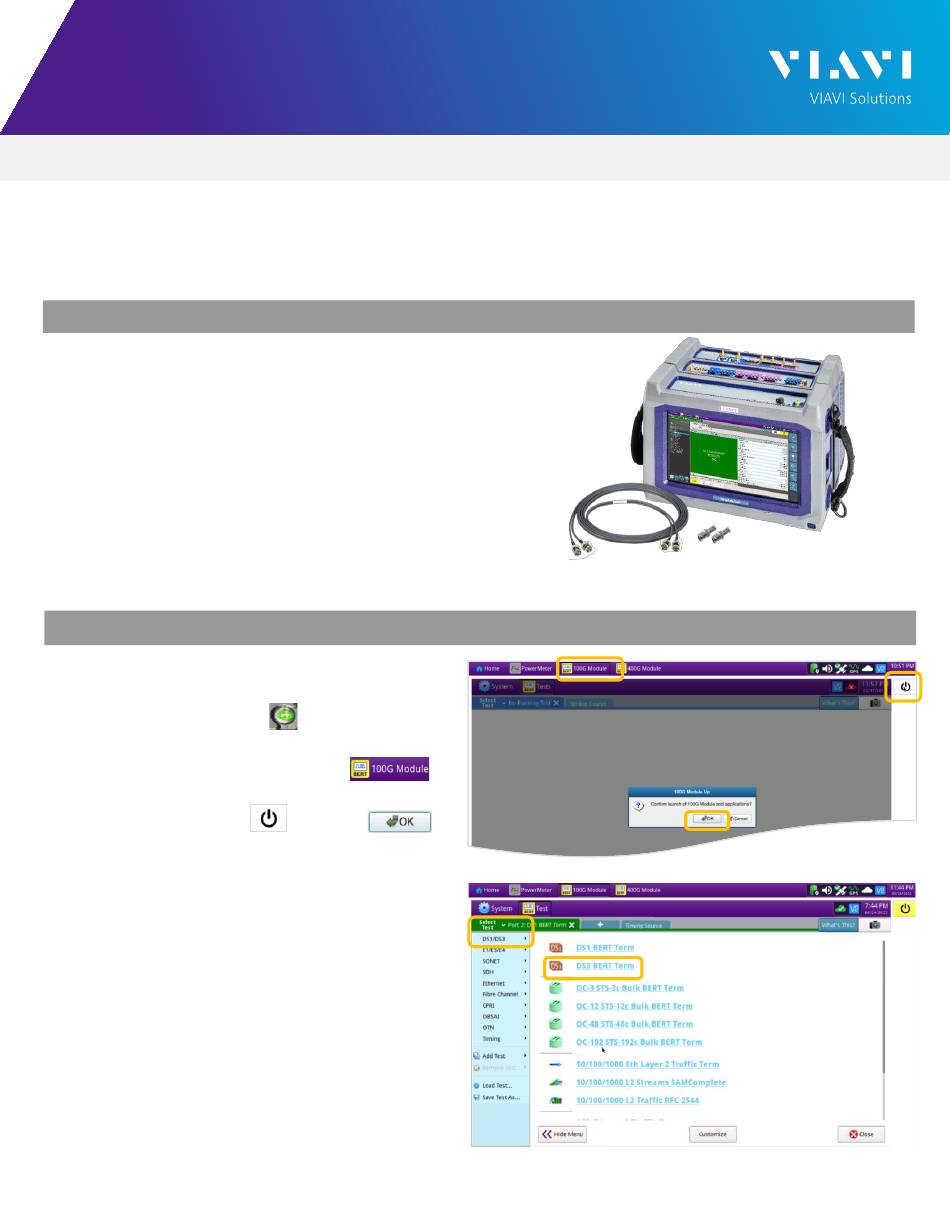

Figure 1: Equipment Requirements
Figure 2: Launch 100G Module
Figure 3: Launch Test
