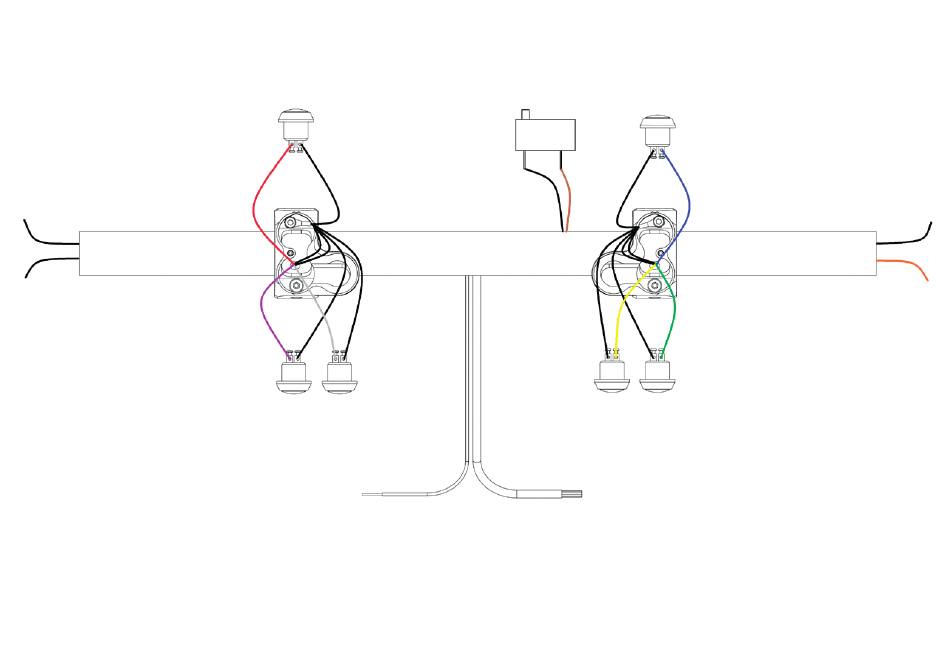

7.2 Standard wiring

to left
ground point
turn signal left
(optional)
black
horn
red
ground point
white
purple
turn left turn right
from battery minus
to left ground point
ground wire
(optional)
brake switch
lights
brown
to right
ground point
ground point
yellow
starter instrument menue
9 pol. motogadget wire
article no. 9003061
blue
ground point
turn signal right
(optional)
green
red mo.unit input HORN
purple mo.unit input TURNL
white mo.unit input TURN R
brown mo.unit input BRAKE
blue mo.unit input LIGHT
yellow mo.unit input START
green instrument menue
black mo.unit output TURN L
orange mo.unit output TURN R
to right
orange
