motogadget mo.can OBD Instruction Manual

Instruction manual mo.can OBD

Exclusion of liability

DE V IC E HOUS ING S AND AL L OT HE R DE L IV E R E D P AR T S MUS T NOT B E OP E NE D OR DIS MANT L E D. IN C AS E OF NON-
C OMP L IANC E AL L G UAR ANT E E C L AIMS B E C OME INV A L ID. T HE MO.C AN C AN ONL Y US E D WIT H MOT OG ADG E T
INS T R UME NT S . T HE US E WIT H OT HE R INS T R UME NT S WIL L DAMAG E T HE MO.C AN OB D; AL L G UAR ANT E E C L AIMS
B E C OME INV AL ID. T HE R E F OR E A C HANG E OF A DE F E C T MO.C AN OB D IS ONL Y P OS S IB L E IF T HE US E D
MOT OG ADG E T INS T R UME NT WIL L B E S E ND T OG E T HE R WIT H T HE DE F E C T MO.C AN OB D. MOT OG ADG E T AC C E P T S
NO L IAB IL IT Y F OR DIR E C T OR INDIR E C T DAMAG E OR S UB S E QUE NT DAMAG E OF ANY K IND R E S UL T ING F R OM T HE
US E , INS T AL L AT ION OR C ONNE C T ION OF T HE MO.C AN OB D OR OT HE R DE L IV E R E D E QUIP ME NT . T HIS E XC L US ION
OF L IAB IL IT Y P AR T IC UL AR L Y INC L UDE S DAMAG E T O P E R S ONS , MAT E R IAL L OS S E S AND F INANC IAL DAMAG E S .
T HE US E OF T HE DE V IC E IN AR E AS OF P UB L IC T R AF F IC IS UNDE R T AK E N AT T HE US E R 'S OWN R IS K .

Application area

mo.can OBD connects all instruments of the motoscope series from motogadget directly to the OBD Interface of Harley Davidson, model
year 2004 and up. Installation and connection of additional sensors or other equipment is no longer necessary. Models coming with HD-
LAN are not compatible.

Connection

Connect mo.can ODB and motoscope cable colours as shown in the table below. Connect the cables properly with a solder, a crimp or a
plug and socket connection. Make sure the insulation of the connection is adequate. A weak insulation may wear due to vibration. An
inaccurate connection or insulation can cause a short circuit or a malfunction of the motoscope.
An additional feature of mo.can OBD is its output for the vehicle warning lamp. As long as an error code is set, the green cable of mo.can
OBD will drain to battery ground. At this cable you can connect a light bulb with max. 0,5W, a LED with series resistor or directly an
indicator light of the motogadget indicator light series (motosign, HD handlebar clamp). If the Output is activated by the mo.can OBD, the
Attention! Connecting mo.can's green cable straight to +12V will destroy this output.
connected light will flash.

Installation

Locate the "Data Link" interface connector. It is located under your seat or behind the side cover, depending on model and year
For the place of attachment consider a sufficient distance to hot engine or exhaust parts (max. ambient temperature in operation is 85°C).
Attach the mo.can OBD with cable ties at the wiring loom or a frame tube. Install the cable for the motoscope along the vehicle harness.
A sufficient strain relief and bend protection of the cables is important. At mechanically stressed areas an additional insulating may be
necessary to prevent cable damage. Mechanical forces (pull, push or shock) act on the device must be avoided
electrical connection to the instrument is finished, plug mo.can's connector into the "Data Link" interface.

Instrument Setup

Please adjust following settings: ImpW=4, ImpE=1 and Circ=2000mm.
mo.can cable configuration
- battery plus +12V
red switched plus +12V
black
vehicle earth
yellow
tacho signal
white speed signal
green output malfuction indicator lamp
motoscope mini motoscope classic
- -
red red
black black
yellow yellow
white orange
green
motoscope tiny SureShift motoscope PRO
red - red
brown red brown
black black black
- yellow yellow
orange white white

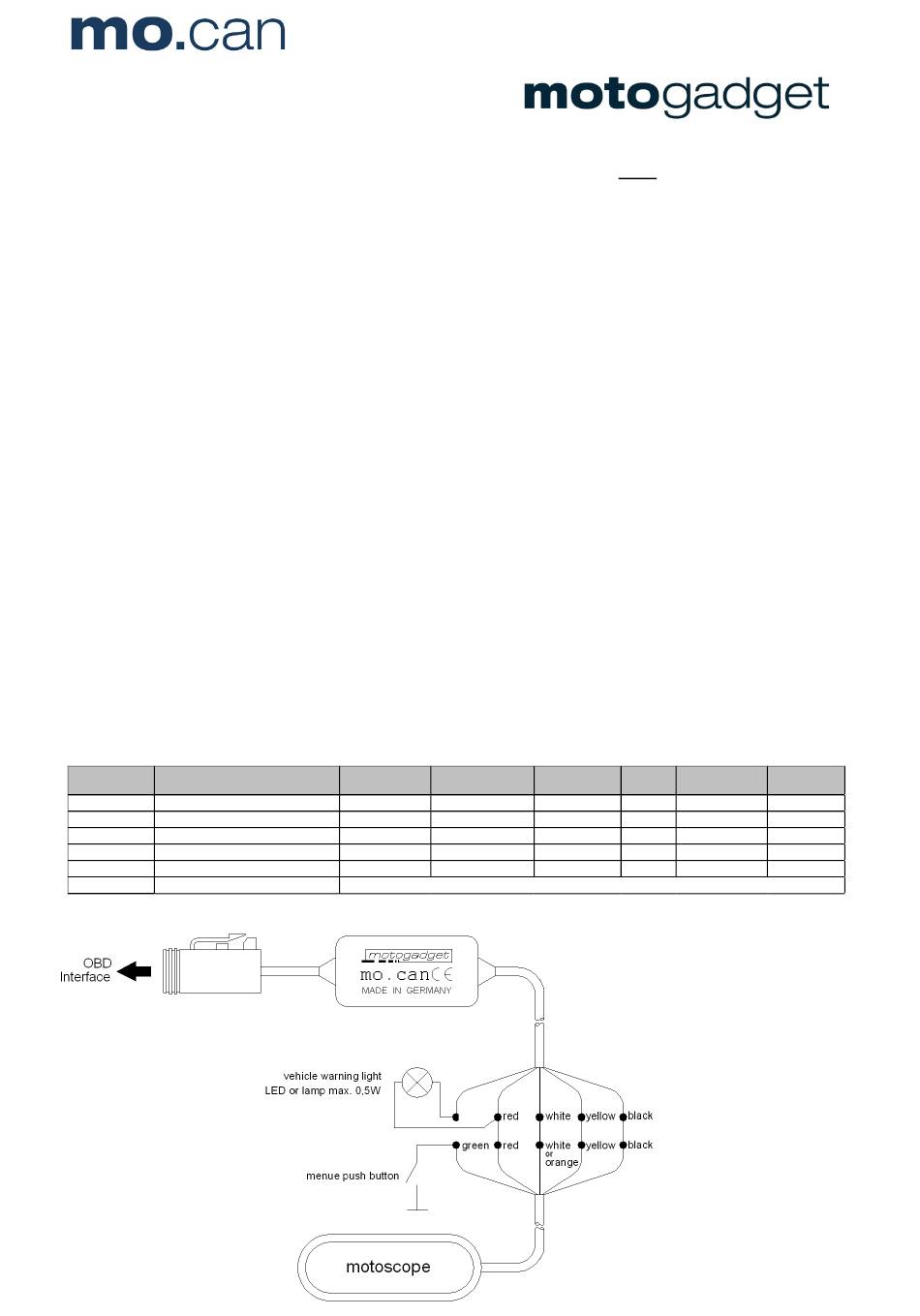

see connection scheme
.
If the installation
Multiview
-
red
black
yellow
white
