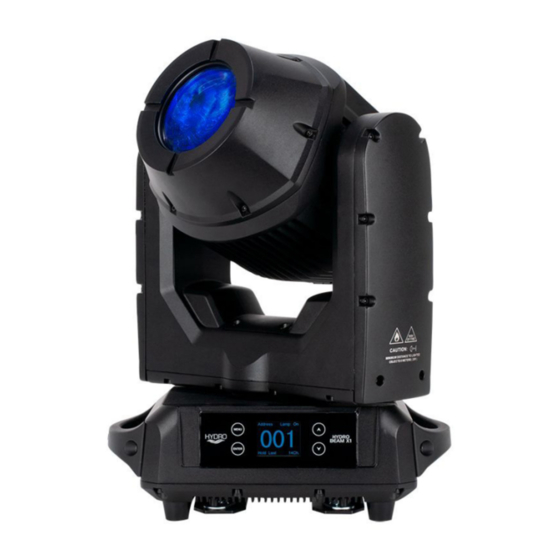

HYDRO BEAM X1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDRO BEAM X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ HYDRO BEAM X1

Summary of Contents for ADJ HYDRO BEAM X1

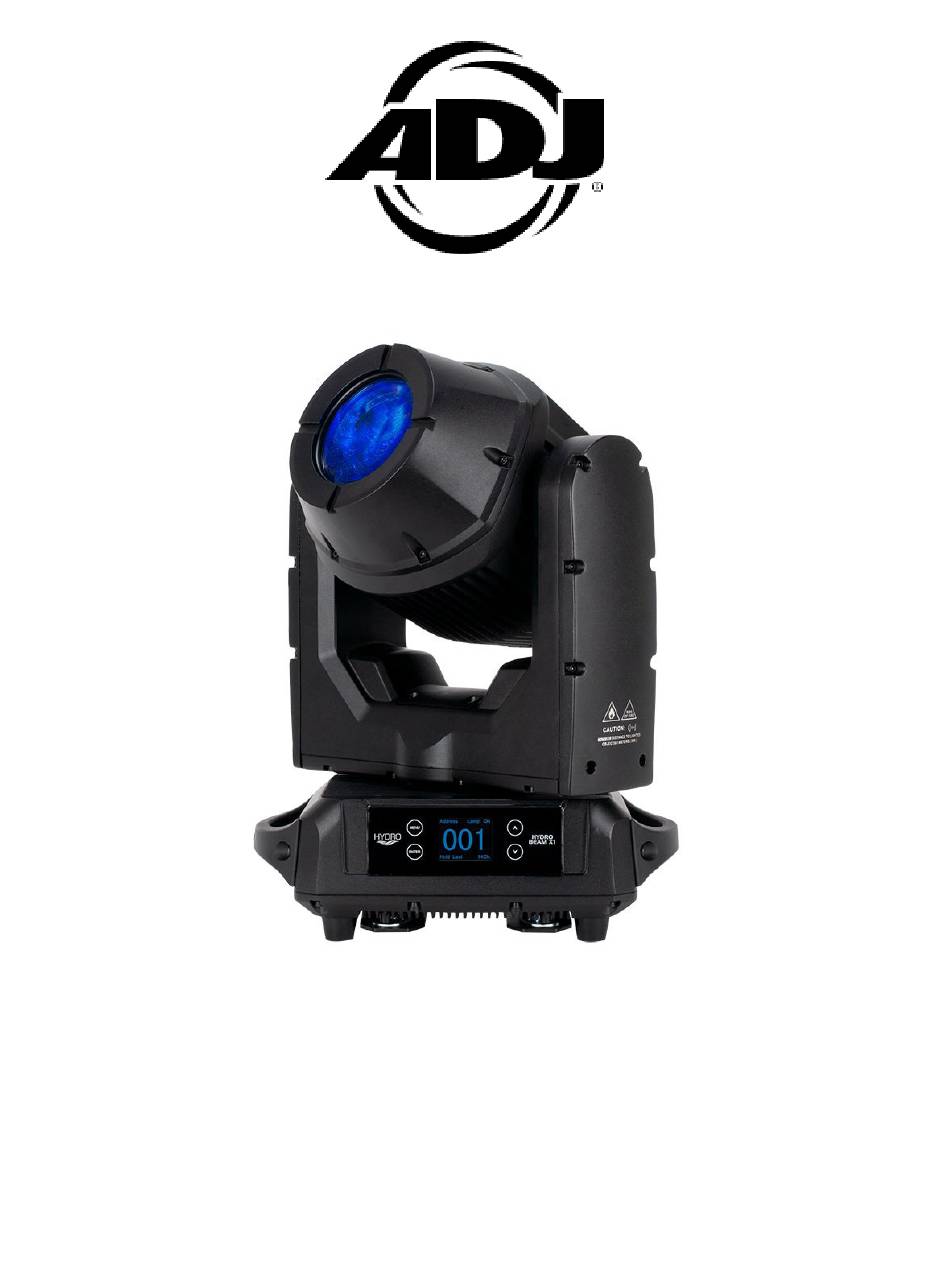

  • Page 1 HYDRO BEAM X1 User Manual...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S Introduction Features Limited Warranty (USA Only) IP Notice Safety Guidelines Overview Discharge Lamp Warning Lamp Installation Torque Settings Gobos Installation Remote Device Management (RDM) Connections System Menu WiFly Control DMX Set Up...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the Hydro Beam X1 by ADJ Products, LLC. Every Hydro Beam X1 has been thoroughly tested and shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Features

    F E A T U R E S • IP65 Outdoor Rated • Electronic Dimming 0-100% • DMX-512 protocol • 5-Pin DMX Connection • Multiple DMX Modes • IP65 Twist Lock Power In & Out • Colors: 14 + Open (Including CTB&UV) •...

  • Page 6: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 7: Ip Notice

    I P N O T I C E IP RATING: THIS UNIT IS IP65 RATED An IP rated lighting fixture is commonly installed in outdoor environments and has been designed with an enclosure that effectively protects the ingress (entry) of external foreign objects such as dust and water.

  • Page 8: Safety Guidelines

    S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as doing so will void your manufacturer’s warranty.
  • Page 9 This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not respon- sible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 10 S A F E T Y G U I D E L I N E S • RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! • FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET LIGHT. • WEAR PROPER EYE AND SKIN PROTECTION. •...

  • Page 11: Overview

    O V E R V I E W Lens Menu Enter Display Down Service Gore Power Power Button Button Screen Button Button Port Valve...

  • Page 12: Discharge Lamp Warning

    D I S C H A R G E L A M P W A R N I N G This fixture is fitted with a DISCHARGE LAMP, which is highly susceptible to damage if improperly handled. NEVER touch the lamp with your bare hands, as the oil from your hands will short- en the life of the lamp.
  • Page 13 D I S C H A R G E L A M P W A R N I N G LAMP REPLACEMENT WARNING NOTE: The lamp life is represented in “Percentages”. When the lamp reaches 15% life remaining, the unit’s display will flash the following message: “Replace The Lamp Soon”.

  • Page 14: Lamp Installation

    L A M P I N S T A L L A T I O N WARNING! LAMP REPLACEMENT SHOULD ONLY BE DONE BY A TRAINED TECHNICIAN. 1. Turn OFF power and allow approximately 15 minutes for the fixture to cool down. 2.
  • Page 15 L A M P I N S T A L L A T I O N 5. Using your fingers, gently pull back the (2) lamp holders, then carefully slide the lamp to the right and out. 6. Slide the new lamp into its socket by pulling it leftwards against the (2) lamp holders. Use a flat head screwdriver and turn the lamp centering screw counter-clockwise to its original position.

  • Page 16: Torque Settings

    T O R Q U E S E T T I N G S ALL SCREWS MUST BE TIGHTENED WITH A TORQUE DRIVER. All screws are Allen Head screws. Please refer to the illustration and table below for screw locations, screw quantity, and torque settings.
  • Page 17 CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE IS- SUES! TO CONFIRM THE IP65 INTEGRITY AFTER A LAMP REPLACEMENT, TEST THE FIXTURE USING THE ELATION IP TESTER. CONTACT ADJ SERVICE FOR MORE DETAILS. CAUTION! THE USE OF PROTECTIVE GLOVES AND SAFETY GOGGLES IS...

  • Page 18: Gobos

    G O B O S Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 10 Gobo 11 Gobo 12 Gobo 13 Gobo 14 Gobo 15...

  • Page 19: Installation

    I N S T A L L A T I O N FLAMMABLE MATERIAL WARNING Keep fixture at least 0.7 feet (0.2m) away from any flammable materials, decora- tions, pyrotechnics, etc. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or instal- lations.
  • Page 20 I N S T A L L A T I O N Screw one clamp via a M12 screw and nut into the Omega holder. Insert the quick-lock fasteners of the Omega holder into the matching holes of the adjustable mounting bracket. Tighten the quick-lock fasteners fully clockwise.
  • Page 21 EASILY RUN OFF AND MUST NOT ACCUMULATE AROUND CABLE CONNECTION POINTS. The Hydro Beam X1 is fully operational in three different mounting positions: hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 0.2m or 0.7ft away from any flammable materials.
  • Page 22 LEDs. This issue is not specific only to ADJ lighting fixtures. Rather, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happen- ing, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 23: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 24: Connections

    C O N N E C T I O N S ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT. TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIX- TURE, ALL CONNECTION RUBBER CAPS MUST BE SEALED WHEN NOT IN USE.

  • Page 25: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. During normal operation, pressing the MENU button once will access the fixture’s main menu. Once in the main menu, you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons.
  • Page 26 S Y S T E M M E N U DMX Address 001 - XXX DMX addressing DMX Ch Mode 11 Ch / 14 Ch DMX channel mode selection DMX SETTINGS Hold Last No DMX Status Blackout DMX lost status Manual Control via DMX WiFly...
  • Page 27 S Y S T E M M E N U 000 - 255 Tilt 000 - 255 Gobo 000 - 255 Color 000 - 255 MANUAL Prism 000 - 255 Manual control CONTROL RPrism 000 - 255 Shutter 000 - 255 Dimmer 000 - 255 Frost...
  • Page 28 S Y S T E M M E N U Fixture Errors Lists last 10 error codes Error Logs INFORMATION Yes / No Reset Error Log Clear error log (continued) Passcode = 050 Software Version Vx.xx Current software version Lamp On / Off On / Off Lamp on/off Lamps On with...

  • Page 29: Wifly Control

    With this feature you are able to control the unit with DMX without relying on XLR cables. Your DMX controller must be connected to an ADJ WiFly Transceiver to use this function. Maximum range is 2500 feet/760 meters (open line of sight).
  • Page 30 W I F L Y C O N T R O L WIRELESS WIFLY INSTALLATION LOCATION GUIDELINES Wireless DMX signal can penetrate walls, glass, metal, and most other objects, but there are many factors, that can affect and/or interrupt the wireless DMX signal. One notable example is a person standing in the path of the signal.

  • Page 31: Dmx Set Up

    XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIX- TURE, ALL CONNECTION RUBBER CAPS MUST BE SEALED WHEN NOT IN USE, AND ONLY IP65 RATED POWER AND DATA CABLES MUST BE USED.

  • Page 32: Dmx Addressing

    D M X A D D R E S S I N G All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 33: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 11CH 14CH 000 - 255 Pan Movement, 0° to 540° Pan Fine 000 - 255 000 - 255 Tilt Movement, 0° to 270° 000 - 255 Tilt Fine Color Wheel 000 - 002 Open / White...
  • Page 34 D M X T R A I T S CHANNEL FUNCTION VALUES 11CH 14CH Gobo Wheel 000 - 003 Open 004 - 007 Gobo 1 008 - 011 Gobo 2 012 - 015 Gobo 3 016 - 019 Gobo 4 020 - 023 Gobo 5 024 - 027...
  • Page 35 D M X T R A I T S CHANNEL FUNCTION VALUES 11CH 14CH Rotating Prism 000 - 127 Indexing 128 - 189 Counter-Clockwise Rotation, fast to slow 190 - 193 Stop Rotation 194 - 255 Clockwise Rotation, slow to fast Shutter &...

  • Page 36: Dimmer Curves And Modes

    D I M M E R C U R V E S A N D M O D E S...

  • Page 37: Error Codes

    E R R O R C O D E S Number Print Error Message Lamp Hot Power Off CPU-B Error CPU-C Error Pan Reset Error Pan Encoder Error Tilt Reset Error Tilt Encoder Error Color Reset Error Gobo Reset Error Lamp Fan 1 Start Errors Lamp Fan 1 Stop Errors Head Fan 1 Start Errors...

  • Page 38: Multiple Power Linking | Cleaning

    M U L T I P L E P O W E R L I N K I N G This feature allows the fixtures to be connected to one another using the power cable input and out- put sockets. The maximum number of units that can be linked in this manner is as follows: •...

  • Page 39: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S 7.2 in 12.5 in (317mm) (183mm) 13.2 in (336mm) 8.3 in (210mm) 9.9 in (252mm) 3.9 in (100mm)

  • Page 40: Specifications

    S P E C I F I C A T I O N S Light Source: • Lamp: Osram Sirius HRI 100W Long Life (6,000 hrs.) Discharge • Color Temperature : 9000K • CRI: 60 • Beam Angle: 3-degrees Features: •...

  • Page 41: Fcc Statement

    F C C S T A T E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation.
