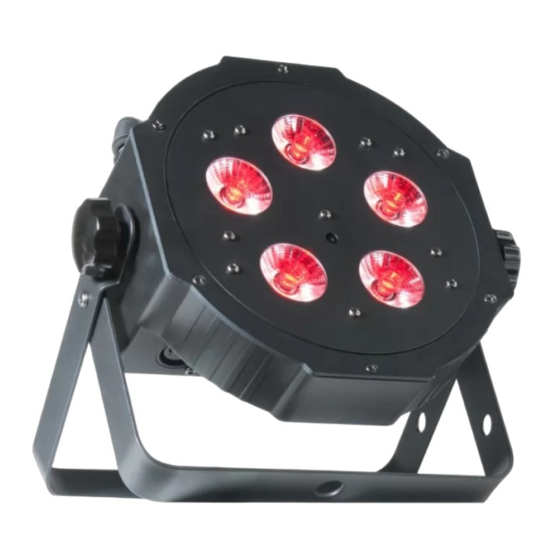

ADJ MEGA TRIPAR PROFILE PLUS User Manual

ADJ MEGA TRIPAR PROFILE PLUS User Manual

Hide thumbs Also See for MEGA TRIPAR PROFILE PLUS:

Advertisement

Quick Links

Download this manual
MEGA TRIPAR
PROFILE PLUS
User Manual
02/04/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEGA TRIPAR PROFILE PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ MEGA TRIPAR PROFILE PLUS

Summary of Contents for ADJ MEGA TRIPAR PROFILE PLUS

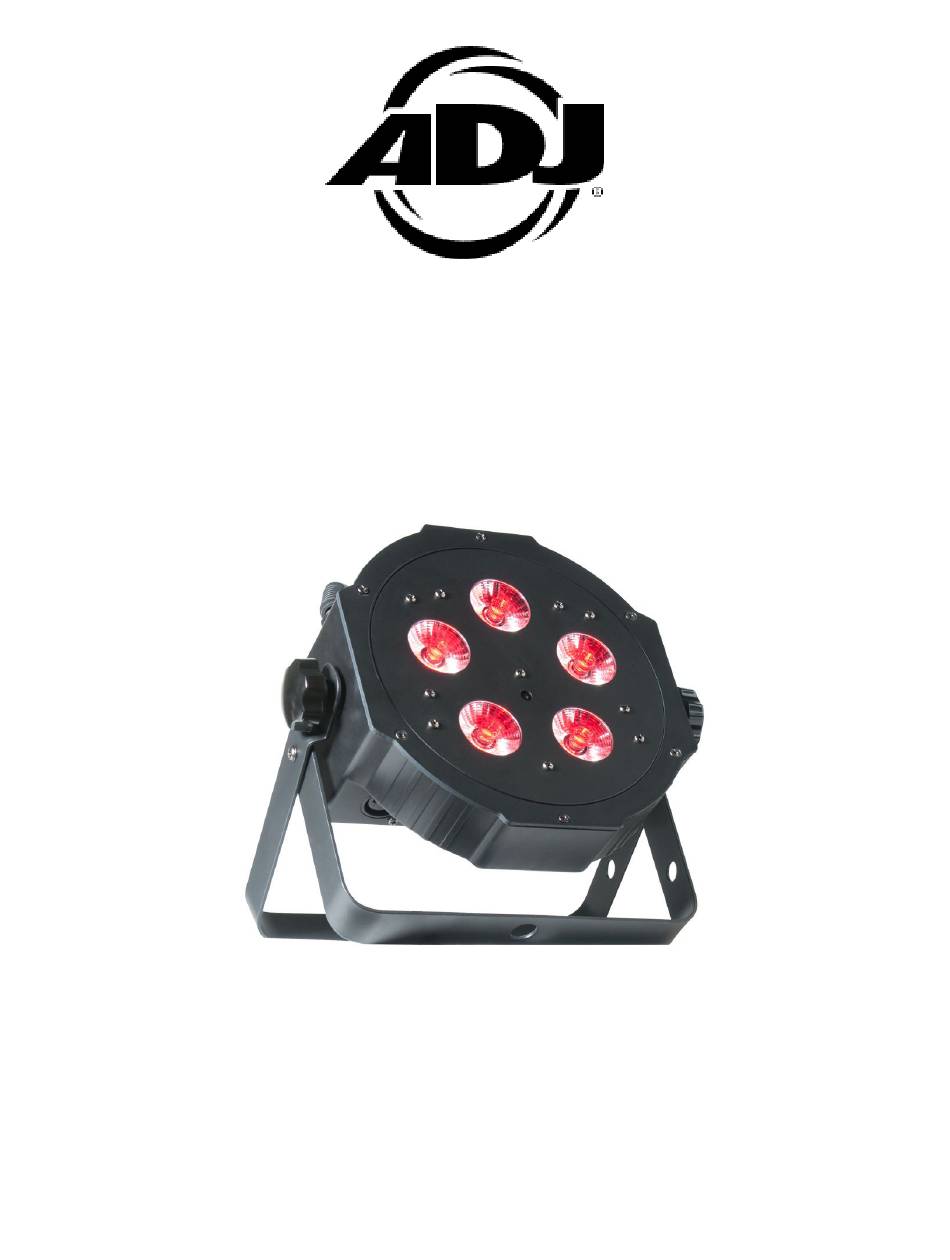

  • Page 1 MEGA TRIPAR PROFILE PLUS User Manual 02/04/2022...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
  • Page 3 Unpacking: Thank you for purchasing the Mega TRIPAR Profile Plus by ADJ Products, LLC. Every Mega TRIPAR Profile Plus has been thoroughly tested and has been shipped in perfect operating con- dition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all acces- sories necessary to operate the unit have arrived intact.

  • Page 4: Warranty Registration

    • WARRANTY REGISTRATION The Mega TRIPAR Profile Plus carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. • Do not spill water or other liquids into or on to your unit. • Do not attempt to operate this unit if the power cord has been frayed or broken. •...
  • Page 6 SAFETY PRECAUTIONS • RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! • FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 401NM TO 438NM. • WEAR PROPER EYE AND SKIN PROTECTION. • AVOID PROLONGED PERIODS OF EXPOSURE. •...

  • Page 7: Dmx Setup

    DMX Traits section of this manual for detailed information. The DMX address is set on the back panel of the Mega TRIPAR Profile Plus. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable.
  • Page 8 XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the likelihood of erratic behavior. 5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA trans- mission in place of 3-pin.
  • Page 9 3. Press the UP or DOWN buttons to reverse the display 180°. Operating Modes: The Mega TRIPAR Profile Plus has five operating modes: • Sound-Active mode - The unit will react to sound, chasing through the built in programs. There are 16 sound active modes.
  • Page 10 OPERATING INSTRUCTIONS Sound Active Mode: In this mode the unit will react to sound, and chase through the different colors. 1. Plug the fixture in and press the MODE button until “SoXX” is displayed. “XX” represents the sound active mode (1-16) that is currently selected. 2.
  • Page 11 This function is used to activate and deactivate the wireless receiver. When activated, this allows the unit to be controlled the ADJ LED RC2 remote control. Please see the ADJ LED RC2 Operation section of this manual for details regarding controls and functions.

  • Page 12: Master/Slave Configuration

    MASTER-SLAVE CONFIGURATION Master-Slave Configuration: This function will allows you to link units together to run in a Master-Slave set-up. In a Master-Slave set-up, one unit will act as the controlling unit and the others will react to the controlling units built-in programs.
  • Page 13 Mega TRIPAR Profile Plus. To control the fixture, the controller must be aimed at the front of the fixture and be within the maximum range of 30 feet. To use the ADJ LED RC2, you must first activate the fixture’s infrared receiver, as instructed in the Operating Instructions section of this manual.

  • Page 14: Dmx Control

    DMX CONTROL Operating through an DMX controller gives the user the ability to create custom programs tailored to his or her own individual needs. Follow the directions below to set your DMX channel mode and ad- dress. 1. Before connecting to a DMX controller, please set your unit to the desired DMX channel mode by pressing the DMX Mode button, then using the “+”...

  • Page 15: Dmx Traits

    DMX TRAITS CHANNEL FUNCTION VALUES 10CH Red, 0% to 100% 000 - 255 Green, 0% to 100% 000 - 255 Blue, 0% to 100% 000 - 255 UV, 0% to 100% 000 - 255 Shutter/Strobe 000 - 031 LED Off 032 - 063 LED On 064 - 095...

  • Page 16: System Menu

    SYSTEM MENU CHANNEL FUNCTION VALUES 10CH Color Change Programs (continued) 208 - 223 Color Change 14 224 - 239 Color Change 15 240 - 255 Color Change 16 Color Fade Programs 000 - 015 Color Fade 1 016 - 031 Color Fade 2 032 - 047 Color Fade 3...
  • Page 17 DMX TRAITS CHANNEL FUNCTION VALUES 10CH Sound Active Programs (continued) 208 - 223 Sound Active Mode 14 224 - 239 Sound Active Mode 15 240 - 255 Sound Active Mode 16 Program Speed, slow to fast 000 - 255 Sound Sensitivity, least to most sensitive 000 - 255 Dimmer Curves 000 - 020...

  • Page 18: Color Macro Chart

    COLOR MACRO CHART COLOR DMX VALUE GREEN BLUE MACRO NO. 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036 037 - 040 041 - 044 045 - 048 049 - 052...
  • Page 19 COLOR MACROS CHART COLOR DMX VALUE GREEN BLUE MACRO NO. 145 - 148 149 - 152 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188 189 - 192 193 - 196...

  • Page 20: Photometric Chart

    PHOTOMETRIC CHART DIMMER CURVE CHART (Fade Time) (Fade Time) Ramp E ect Standard Stage Architectural Theatre...

  • Page 21: Power Cord Daisy Chain

    POWER CORD DAISY CHAIN This feature allows multiple fixtures to be linked together via the IEC input and output sockets. The maximum number of units that can be connected in this manner is 30 fixtures. After this values has been reached, an additional power outlet must be used to accommodate any additional features.

  • Page 22: Warranty

    WARRANTY A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 23: Specifications

    ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-2941 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands support@adjgroup.eu / www.adj.eu...
