-SCAN LED
User Instructions
Rev. 8/08
PLUS
American DJ
®
6122 S. Eastern Ave.
Los Angeles CA. 90040
www.americandj.com

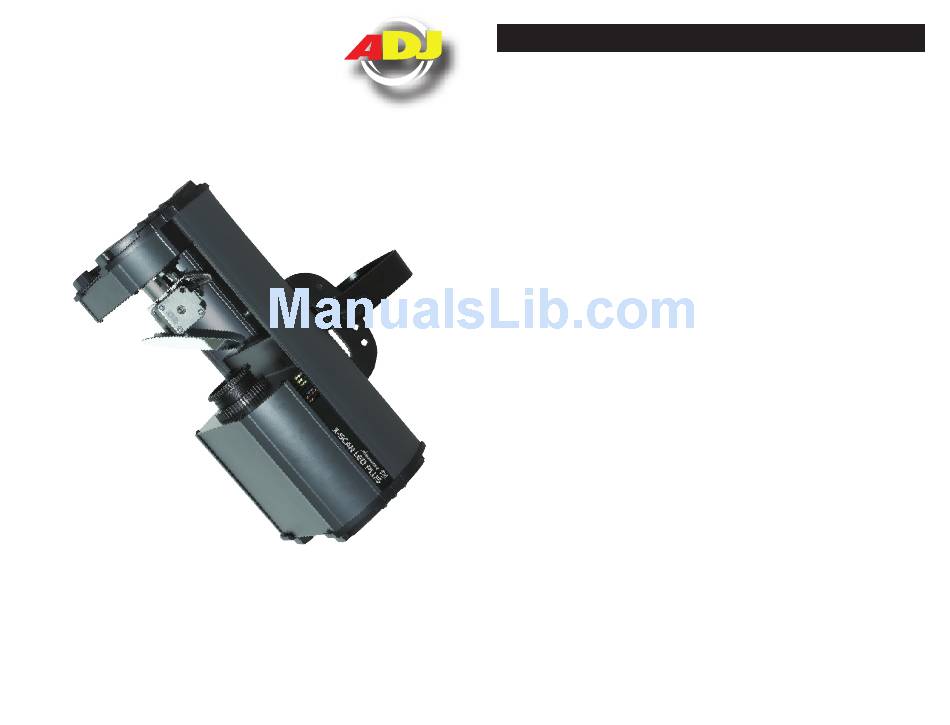

X-Scan LED™
Unpacking: Thank you for purchasing the X-Scan LED™ by
American DJ®. Every X-Scan LED™ has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect
your fixture for any damage and be sure all equipment necessary to
operate the unit has arrived intact. In the event damage has been
found or parts are missing, please contact our toll free customer
support number for further instructions. Please do not return this
unit to your dealer without contacting customer support first.
Introduction: The X-Scan LED™ is a eight channel DMX intelligent,
LED scanner. The X-Scan LED™ can operate as a stand alone fixture
or in a Master/Slave configuration. The X-Scan LED™ has two opera-
ting modes; sound active mode and DMX control. For best results
use fog or special effects smoke to enhance the beams projections.
Customer Support: American DJ® provides a toll free customer
support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. Service Hours are Monday through Friday
9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning! This may cause severe
American DJ
- www.americandj.com - X-Scan LED™ Instruction Manual Page 2
®
General Information
Advertisement
Table of Contents
Related Manuals for ADJ X-SCAN LED PLUS
Summary of Contents for ADJ X-SCAN LED PLUS
- Page 1 X-Scan LED™ General Information Unpacking: Thank you for purchasing the X-Scan LED™ by American DJ®. Every X-Scan LED™ has been thoroughly tested and has been shipped in perfect operating condition. Carefully check -SCAN LED PLUS the shipping carton for damage that may have occurred during shipping.
-
Page 2: General Instructions
X-Scan LED™ Safety Precautions X-Scan LED™ General Instructions To optimize the performance of this product, please read these For Your Own Personal Safety, Please Read and Understand This operating instructions carefully to familiarize yourself with the basic Manual Completely Before You Attempt To Install Or Operate operations of this unit. - Page 3 Data Cable (DMX Cable) Requirements (For DMX unit in your daisy chain to terminate the line. Using a cable terminator and Master/Slave Operation): The X-Scan LED™ (ADJ part number Z-DMX/T) will decrease the possibilities of erratic can be controlled via DMX-512 protocol. The X- behavior.
- Page 4 X-Scan LED™ Set Up X-Scan LED™ System Menu Chart 5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX- 512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting stan- dard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores.
- Page 5 X-Scan LED™ System Menu X-Scan LED™ System Menu System Menu: When making adjustments you can press ENTER to confirm your setup or you can wait 8 seconds for 1. Tap the MENU button until “BLND” is displayed, press automatic setup. To exit without making any adjustments ENTER.
-
Page 6: Operation
X-Scan LED™ System Menu X-Scan LED™ Operation DISP - Operating Modes: The X-Scan LED™ can operate in two dif- This function will reverse the display 180º. ferent modes. In each mode you can run the fixture as a stand 1. Tap the MENU button until “DISP” is displayed, press ENTER. alone fixute or in a master/slave confiugration. - Page 7 X-Scan LED™ Operation X-Scan LED™ DMX Traits Channel Value Function 3. Use the controller’s faders to control the various DMX fixture traits. 4. This will allow you to create your own programs. 0 - 255 5. Follow the instructions on page 9 to set the DMX address. 0 - 255 TILT 6.
-
Page 8: Fixture Cleaning
X-Scan LED™ DMX Traits X-Scan LED™ Fuse Replacement Channel Value Function First unplug the power. The fuse holder is located next to the power cord. Using a flat-head screw driver unscrew the fuse holder. Remove SHUTTER/STROBE the bad fuse and replace with a new one. 0 - 7 BLACKOUT X-Scan LED™... -
Page 9: Warranty
X-Scan LED™ Warranty X-Scan LED™ Notes MANUFACTURER’S LIMITED WARRANTY American DJ, Inc. hereby warrants, to the original purchaser, American DJ and American Audio products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. -
Page 10: Specifications
X-Scan LED™ Specifications Model: X-Scan LED™ Voltage*: 100 ~ 240V 50Hz/60Hz “Auto Sensing” LEDs: 1 X 20 Watt LED Power Consumption: Dimensions: 8”(L) x 6”(W) x 15.25”(H) 200mm x 150mm x 386mm Colors: RGB + White Weight: 9.9 Lbs. / 4.5 kgs. Fuse: 2 Amp Duty Cycle:...
