RGB 3C
LED CONTROLLER
User Instructions
11/10
RGB 3C
Unpacking:
Thank you for purchasing the RGB 3C by American DJ
Every RGB 3C has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your fixture for any damage and be
sure all equipment necessary to operate the unit has arrived intact. In
the event damage has been found or parts are missing, please contact
our toll free customer support number for further instructions. Please
do not return this unit to your dealer without contacting customer sup-
port first.
Introduction:

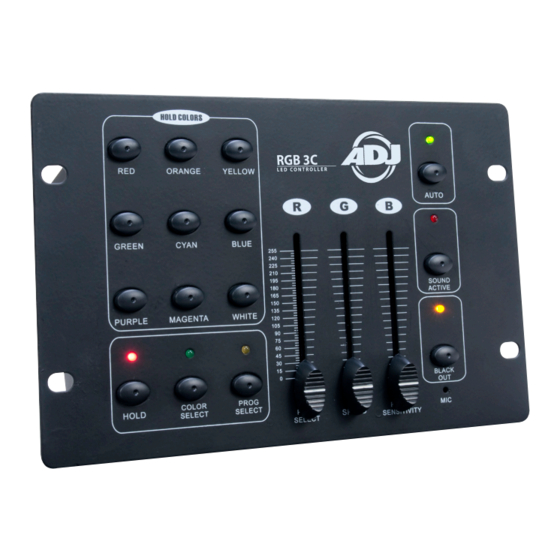

The RGB 3C small, lightweight, very easy to use,
3-channel RGB LED controller. The RGB 3C is designed to control
any 3 channel RGB fixture. The RGB 3C has a sound active mode,
program mode, auto run, and static color mode. It also features RGB
faders so that you can create your own unique color. This controller
is the ideal control solution for D.J.'s, small night clubs, and bars that
want a simple LED controller to run the show.
Customer Support:
American DJ
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2941
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning!
This may cause severe eye damage. Avoid looking directly
into the light source at all times!
American DJ® www.americandj.com - RGB 3C
General Information
provides a toll free customer
®
Page 2
.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGB 3C and is the answer not in the manual?

Questions and answers

Summary of Contents for ADJ RGB 3C

  • Page 1 The RGB 3C small, lightweight, very easy to use, 3-channel RGB LED controller. The RGB 3C is designed to control any 3 channel RGB fixture. The RGB 3C has a sound active mode, program mode, auto run, and static color mode. It also features RGB faders so that you can create your own unique color.
  • Page 2: General Instructions

    Before plugging your unit in, be sure the source volt- operating instructions carefully to familiarize yourself with the basic age in your area matches the required voltage for your American DJ ® operations of this unit. These instructions contain important safety RGB 3C.
  • Page 3 DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3 (DMX +) of the last fixture. Figure 4 American DJ® www.americandj.com - RGB 3C Page 5 American DJ® www.americandj.com - RGB 3C Page 6...
  • Page 4: Controls And Functions

    5. MIC - This microphone receives external low frequencies to trigger the unit in Sound-Active mode. This microphone is designed to receive low frequency sounds only, tapping on the microphone and high pitch American DJ® www.americandj.com - RGB 3C Page 7 American DJ® www.americandj.com - RGB 3C...
  • Page 5: Operation

    2. Press any of the 9 color buttons or use the RGB faders to make strobing is desired. your own desired color. American DJ® www.americandj.com - RGB 3C Page 9 American DJ® www.americandj.com - RGB 3C Page 10...
  • Page 6: Specifications

    American DJ, Inc. concludes, after inspection, affects the reliability prior written notice. of the product; if the product has been repaired or serviced by anyone other than the American DJ, Inc. factory unless prior written authorization was issued to purchaser by American DJ, Inc.; if the product is damaged because not properly maintained as set forth in the instruction manual.
