- Page 1 H2O IR User Manual...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Limited Warranty (USA Only) Warranty Registration / Features / Included Items Safety Guidelines Installation / Operating Instructions UC IR Remote Control & Setup Lens Installation Photometric Chart / Fuse Replacement / Cleaning & Trouble Shooting Specifications... -
Page 4: Introduction

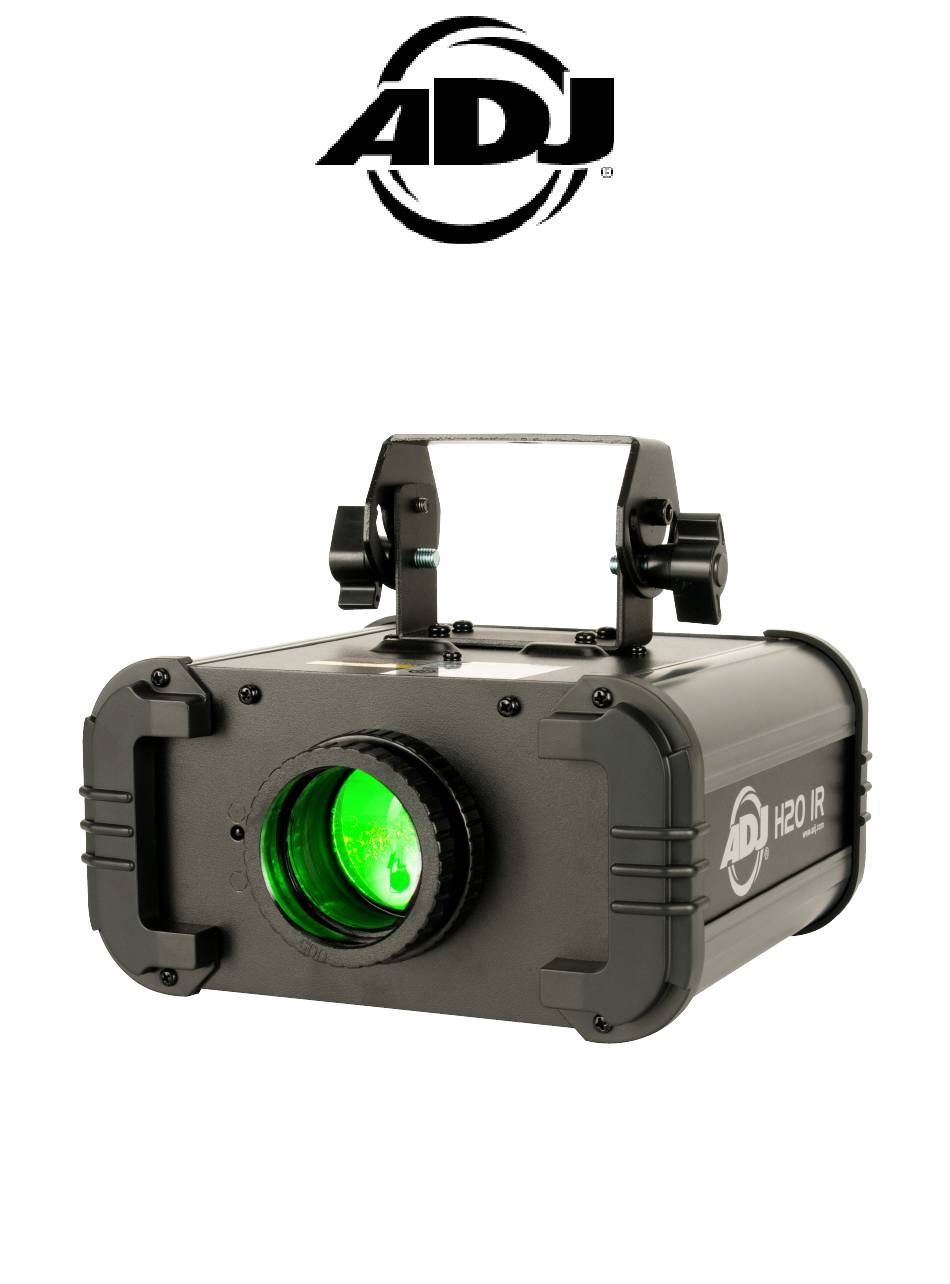

INTRODUCTION Unpacking: Thank you for purchasing the H2O IR by ADJ Products, LLC. Every unit has been thor- oughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have... -
Page 5: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 6: Warranty Registration / Features / Included Items
WARRANTY REGISTRATION The H2O IR carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 7: Safety Guidelines
SAFETY GUIDELINES • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture • Do not spill water or other liquids into or on to your unit. • Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off the ground prong from the electrical cord. -
Page 8: Installation / Operating Instructions
INSTALLATION The unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slipping during operation. Always ensure that the structure to which you are attaching the unit is secure and capable of supporrting 10 times the unit’s weight. -
Page 9: Uc Ir Remote Control & Setup
UC IR CONTROL & SETUP UC IR SETUP There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device: •... -
Page 10: Lens Installation
LENS INSTALLATION The installation of the lens is a relatively simple process. Never- theless, please exercise caution while performing this installation in order to avoid damaging the lens or the fixture Unscrew and remove the focus barrel. Using your thumb, gently push the lens outward until it pops out. -
Page 11: Photometric Chart / Fuse Replacement / Cleaning
PHOTOMETRIC CHART FUSE REPLACEMENT With the power cord removed, locate the units fuse holder which is located on the power input socket. With a flat head screw driver, gently remove the fuse holder. Remove the bad fuse and replace with a slow blow fuse of the same amperage. The fuse holder has a built-in socket for a spare fuse. -
Page 12: Specifications
Beam angle: 43 or 34 degrees (optional) • ncludes hanging bracket • Run all night – units stays cool – no duty cycle • ADJ UC IR Compatible (sold separately) • Power consumption: 23.8W • Long life 12W LED (30,000 hr. rating) •... - Page 13 (page intentionally left blank)
