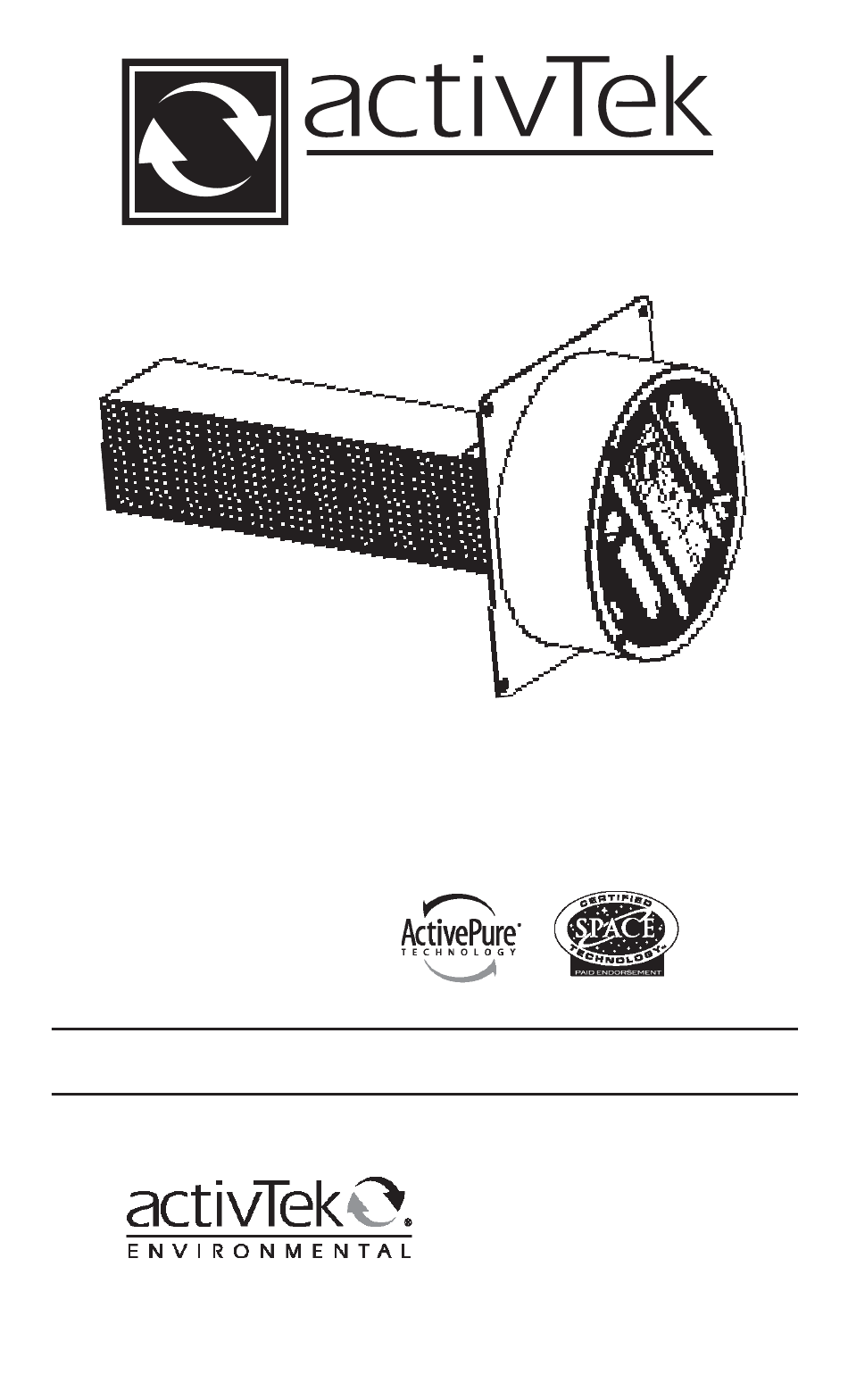

OWNER'S MANUAL
• Specifications
• Installation
• Operation
• Features
• Maintenance
ELECTRONIC AIR PURIFICATION SYSTEM
CAUTION: Read manual carefully for proper procedures and operation.
D U C T W O R X
5420 LBJ Freeway, Suite 1010
Dallas, TX 75240
1.866.736.0503

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUCTWORX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for activTek DUCTWORX

Summary of Contents for activTek DUCTWORX

  • Page 1 D U C T W O R X OWNER’S MANUAL • Specifications • Installation • Operation • Features • Maintenance ELECTRONIC AIR PURIFICATION SYSTEM 5420 LBJ Freeway, Suite 1010 Dallas, TX 75240 1.866.736.0503 CAUTION: Read manual carefully for proper procedures and operation.

  • Page 2: Table Of Contents

    CONGRATULATIONS . . . on your purchase of an activTek DuctwoRx air purification system. This unit is designed to be installed into an existing HVAC system, and used as a virtually maintenance free enhancement to activTek’s air purification technology. Please read and follow all service procedures outlined in this manual.

  • Page 3: Product Contents

    PRODUCT CONTENTS Mounting Plate Replaceable ActivePure® Cell (includes UV Lamp) UV Bulb Indicator Safety Switch INSTALLATION HARDWARE (8) #8 - .75 (4) #6 - 32 X 2 inch 1/4” Self-tapping screws Threaded bolts (4) #6 - 32 Item # US70679 Item #US70680 Toggle bolt wall anchors (4) #8 - 32...

  • Page 4: About Ductworx

    ABOUT DUCTWORX Features: • Low level O production: activTek DuctwoRx is easily mounted into 0.04 ppm maximum. the supply side of air conditioning and • Replaceable ActivePure® Cell. heating system air ducts where many problems can start. Electrical: • 120v 60Hz AC •...

  • Page 5: Recommended Installation Tools

    RECOMMENDED INSTALLATION TOOLS 3 1/2” Hole Saw Drill/Power Driver Phillips Screwdriver 3/8” Drill Bit for wood or metal (if installing into fiberglass ducting with toggle bolts) (recommended) You may also need: 11/32” Open-End Wrench 1/4” Nut Driver Bit Utility Knife Tin Snips (for metal ductwork) INSTALLATION REQUIREMENTS...

  • Page 6: Metal Ductwork Installation

    METAL DUCTWORK INSTALLATION 1. Locate suitable area of 2. Cut away insulation to expose metal duct (if duct for installation. needed). 3. Mark location for 3.5” opening using either the 4. Cut hole in duct using 3.5” hole saw. mounting plate or included template. ALTERNATIVE CUTTING METHOD b.
  • Page 11 METAL DUCTWORK INSTALLATION (CONTINUED) 5. Remove backing from mounting plate adhesive 6. Center openings and press mounting plate onto gasket. duct. The adhesive gasket will hold the mounting plate in place. 7. Secure the mounting plate using (8) #8 self-tapping 8.

  • Page 12: Fiberglass Ductwork Installation

    FIBERGLASS DUCTWORK INSTALLATION 2. Mark location for 3.5” opening using either the 1. Locate suitable area of mounting plate or included template. Also mark duct for installation. the locations of 4 screw holes in corners (see template). 3. Cut hole in duct using 3.5” hole saw. 4.
  • Page 13 FIBERGLASS DUCTWORK INSTALLATION (CONTINUED) Stud 5. Insert (4) 2” Threaded bolts into screw holes at 6. Remove backing from mounting plate corners of mounting plate. Attach (4) toggle bolt adhesive gasket. anchors to ends of threaded bolts. 7. Insert (4) toggle bolts into 3/8” holes in duct. Be 8.
  • Page 14 CHANGING THE ACTIVEPURE® CELL WARNING! - UV Light in operation. Disconnect unit from power supply before servicing. Failure to follow warnings may result in severe eye damage. 1. Unplug unit. If the unit is hard wired, be sure 2. Remove the 4 mounting nuts. the power to the unit is off.

  • Page 15: Maintenance/Uv Lamp Indicator

    MAINTENANCE/UV LAMP INDICATOR Your activTek DuctwoRx unit requires no periodic maintenance beyond normal replacement of the ActivePure® cell every year. UV bulb has an effective life of 9,000 hours. UV lamp operation indicator Note: For optimal performance, we recommend the replacement of the ActivePure®...
  • Page 16 FCC DECLARATION OF CONFORMITY This equipment has been tested and Name: DBG Group Investments, LLC found to comply with the limits for Model: DuctwoRx Industrial, Scientific, and Medical Equipment (ISM), pursuant to Part Manufacturer: DBG Group Investments, LLC 18 of the FCC Rules. These limits...
