TypeS BT533004 Care & Use Instructions

TypeS BT533004 Care & Use Instructions

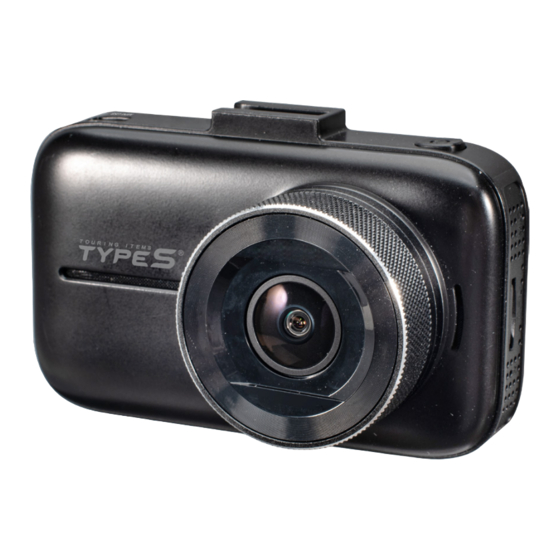

4k ultra hd dash cam with app controlled

Advertisement

4K ULTRA HD
DASH CAM
with APP Controlled
ITM. / ART. 1658573
WP ITM. BT533004
Care & Use Instructions
Important, retain for future reference:
Read carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT533004 and is the answer not in the manual?

Questions and answers

John Hom
March 13, 2025

why when i set the date and time, it is fine for the day but re sets itself to default date and time the next day

1 comments:
Mr. Anderson
May 14, 2025

The TypeS BT533004 may reset to the default date and time the next day if it is not maintaining power when turned off, which could be due to a faulty internal battery or capacitor that stores settings. The manual does not specify the exact cause.

This answer is automatically generated

Summary of Contents for TypeS BT533004

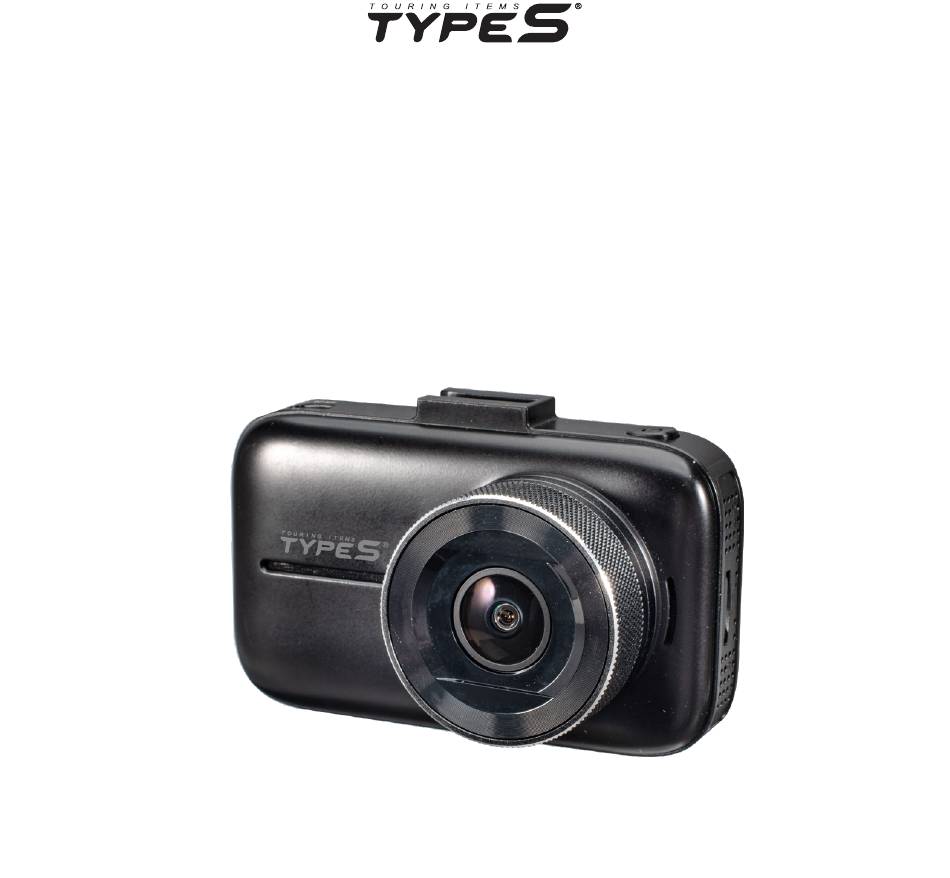

  • Page 1 4K ULTRA HD DASH CAM with APP Controlled ITM. / ART. 1658573 WP ITM. BT533004 Care & Use Instructions Important, retain for future reference: Read carefully...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ....................................1 2. Package Contents ...................................2 3. Product Specifications ................................3 4. Product Dimension ................................3 5. Product Overview ..................................4 6. Button Configuration ................................5 7. Before You Start ..................................6 8. Installation ....................................6 9. Initial Setup ....................................8 10. Configuration & Menu Settings ............................9 11.
  • Page 3: Introduction

    The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. Consult an experienced technician if you are not comfortable installing the product. You can also contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any...
  • Page 4: Package Contents

    8. 1 x Warranty Card Product code / Code de produit / Código del producto : BT533004 Register this product within 30 days of purchase to receive 1 FREE YEAR of additional warranty coverage (beyond the standard one year warranty), along with special product offers and announcements.
  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS Screen: 3" IPS Resolution: 4K UHD - Ultra High Definition (3840 x 2160p) Frequency: 2.4 GHz Operating Voltage: DC 12V / 24V - Cigarette Lighter Adapter (CLA) Operating Temperature: 140F~1400F (-100C~600C) Viewing Angle: 131° Diagonal Image Sensor: Maximum Signal Range: 9.84 Feet/3 Meters (without interference or obstruction)
  • Page 6: Product Overview

    5. PRODUCT OVERVIEW FRONT Mini USB Power Button Power Port Microphone MicroSD Card Slot Camera Lens Power Reset Hole Speaker BACK Mount Socket LED Indicator LCD Screen...
  • Page 7: Button Configuration

    6. BUTTON CONFIGURATION 1. Power Button Press and hold for 3 seconds to turn the camera ON/OFF. Press once to switch between live view and digital clock. Up Button Press to navigate up within the menus. 3. OK / Record Button Press to confirm selection when in menus.
  • Page 8: Before You Start

    7. BEFORE YOU START Please power ON, configure the Initial Settings (Section 9), connect with the TYPE S Drive APP (Section 16) and test before installing in your vehicle. Please use this document for detailed instructions and product information. As always, please feel free to contact our Customer Care team for further assistance toll-free (866) 294-9244.
  • Page 9 Plug the Mini USB power cable into the DC input port. Adjust the Windshield Mount to get the best angle. Check the live screen in TYPE S Drive APP and determine the most suitable mounting position. (See page 19 on using the APP.) Warning: Do not install the product in a location where it can obstruct the driver’s field of vision.
  • Page 10: Initial Setup

    Route and hide the power cable in the headliner and pillars in your vehicle. Peel off the 3M tape backer from the GPS Receiver and mount it on the windshield. Position it on a surface that allows it to get a clear view of the sky through the windshield in order to get the best...
  • Page 11: Configuration & Menu Settings

    10. CONFIGURATION & MENU SETTINGS Switching Modes • Recording must be paused manually in order to switch between modes. Press OK to stop recording. • Press M to cycle through Video Mode, Camera Mode and Gallery Mode. Video Mode • This is the default recording setting. The Dash Cam will start recording automatically once it is powered on.
  • Page 12 Gallery Mode - Photo • Press to scroll through the previews and press OK show it in full size. • Press and hold M to choose to delete the highlighted photo or all photos. Press OK and then choose Confirm to proceed. •...
  • Page 13 Lapse Record • 1 second, 2 seconds, 3 seconds or OFF. Motion Detection • ON or OFF. Exposure • -2.0, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3, +0.7, +1.0, +1.3, +1.7, or +2.0 Record Audio • ON or OFF.
  • Page 14 G-Sensor • High, Medium, Low or OFF. WiFi • ON or OFF. Plate Number • Enter your vehicle license plate number here. Screen Save • 1 minute, 3 minutes, 5 minutes or OFF. (Screen will dim to a digital clock interface after the specified time you select.
  • Page 15 Digital Clock • ON or OFF. Frequency • 50Hz or 60Hz. USB Mode • Power On Only or Mass Storage. Beep Sound • ON or OFF. Boot Sound • ON or OFF. Language • Supports English only.
  • Page 16 Date/Time • Set the date and time. Format • Select to erase all data on your MicroSD card. Default Setting • Reset to default settings. Speed Unit • KM/H or MPH.
  • Page 17 Date Stamp • ON or OFF. Version • Firmware version. Camera Settings Screen • The Camera Settings Screen can only be accessed from Camera Mode. • Press and hold M to enter the Camera Settings Screen. • Press to scroll through all the settings and press OK to choose the highlighted setting.
  • Page 18: Camera Status & Led Indicators

    11. CAMERA STATUS & LED INDICATORS Power / Mode Status LED Indicators Power On Red LED light stays on when Dash Cam is powering on. Dash Cam powers ON when the engine is turned on. To manually power ON, press and hold the power button for more than 3 seconds . Recording Blue LED light flashing.
  • Page 19: Time-Lapse Recording Logic

    13. TIME-LAPSE RECORDING LOGIC Mode Behavior Without time-lapse record, captures 30 frames per 1 second. 1 Second Time-lapse record, captures 1 frame per 1 second. 2 Seconds Time-lapse record, captures 1 frame per 2 seconds. 3 Seconds Time-lapse record, captures 1 frame per 3 seconds. 14.
  • Page 20: Downloading The App

    15. DOWNLOADING THE APP The 4K Ultra HD Dash Cam auto sync function enables you to control and playback recorded media files using your smartphone with the TYPE S Drive APP. Scan below QR code or search "TYPE S Drive" in the APP Store or Google Play.
  • Page 21: App Setup

    16. APP SETUP Auto sync with the Dash Cam 1. Open the 4K Ultra HD Dash Cam's video settings menu. 2. Go to WiFi Setting and turn it on. WiFi icon will Note: Default WiFi is set as On. appear if WiFi is turned on.
  • Page 22 TYPE_S_DVR06_4K_XXXXXX TYPE_S_DVR06_4K_XXXXXX iOS device (Follow steps 1 - 2 from previous page's instructions) 3. Open the TYPE S Drive APP and select the Dash Cam category. Select 4K Ultra HD Dash Cam from the list of Dash Cams. Press Set Up Device. 4.
  • Page 23: App Settings

    17. APP SETTINGS Main Interface Main Menu On-screen Instructions WiFi Setting (iOS only) Microphone On/Off Record Video Mode / Camera Mode Home Screen Gallery Main Menu The default settings of the 4K Ultra HD Dash Cam will allow you to use it without the need to change any settings.
  • Page 24 Video Setting (Video Mode) • Exposure - Adjust the overall brightness or darkness during recording. • Motion Detection - Select to turn the motion detection function On/Off. • Record Audio - Select to turn the record audio function On/Off. • G-Sensor - Select the level of sensitivity for the G-Sensor.
  • Page 25 Camera Setting (Camera Mode) • Resolution - Select the resolution of captured images. • Burst Photo - Select to turn the burst photo function On/Off. • For the rest of the camera settings please refer to the Video Settings Screen. GPS Signal Status 1 GPS Signal Status 2 This status indicates GPS receiver is waiting for GPS...
  • Page 26 Gallery SD CARD tap Press the icon to download the selected Press the icon on the main interface to file into your smartphone, or press the enter the media gallery. Press the SD CARD icon to delete the file from the MicroSD card. tap to access the media files stored in the MicroSD card.
  • Page 27: Viewing And Managing Media Files Using A Computer

    18. VIEWING AND MANAGING MEDIA FILES USING A COMPUTER Mini USB Data Cable (not included) Once the 4K Ultra HD Dash Cam is connected to a computer with the Mini USB data cable (not included), the screen on the left will show up on the Dash Cam. Choose the Mass Storage option, the 4K Ultra HD Dash Cam will function as a card reader for the computer, and it will appear as a new USB drive.
  • Page 28: Safety Information

    IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12V Car charger for Model BT533004. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow.
  • Page 29 • Be sure to check the Camera’s position and mounting angle before each use. • Do not strike the 4K Ultra HD Dash Cam. It is a precision instrument. Otherwise, it may malfunction or cause damage resulting in a fire or an electric shock. •...
  • Page 30: Maintenance & Warranty

    20. MAINTENANCE & WARRANTY CLEANING • If dirt, lent, or just is on the Camera, the Monitor may not clearly display objects. Rinse with water and wipe with a dry cloth. • Do not use alcohol, benzene or thinner to clean the Camera. This will cause discoloration. To clean the Camera, wipe with a clean cloth dampened with mild cleaner diluted with water and then wipe with a dry cloth.
  • Page 31 5. Repair or replacement parts supplied by TYPE S under this warranty are protected only for the unexpired portion of the original warranty. 6. This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation, removal or reinstallation of the product, or damage to any mobile phone device or vehicle.
  • Page 32 TYPE S and/or its affiliates do not guarantee or promise that the user of 4K Ultra HD Dash Cam will not be in an accident or otherwise not collide with an object and/or person. Our 4K Ultra HD Dash Cam is not intended in any way to be a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations.
  • Page 33: General Information

    21. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules.
  • Page 34 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. 4K Ultra HD Dash Cam with APP-Controlled BT533004 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. Tel: 1-866-294-9244 Android is a trademark of Google Inc.
  • Page 36 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. 1.866.294.9244 | info@typesauto.com ©2022 TYPE S. All rights reserved. www.typesauto.com ML-533004_V1...
