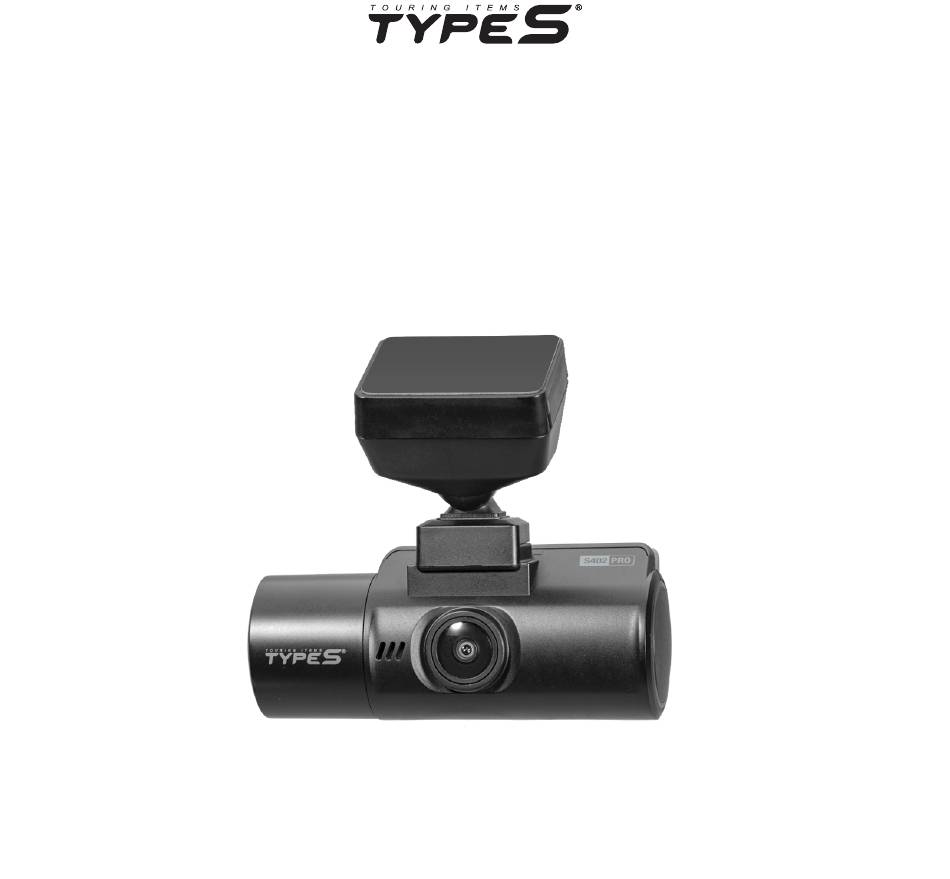

  • Page 1 S402 PRO 4K Dual View Dashcam with 2K Cabin Facing Cam WP ITM. BT532871 Care & Use Instructions Important, retain for future reference: Read carefully...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ....................................3 2. Package Contents ...................................4 3. Product Specifications ................................5 4. Product Dimension ................................5 5. Product Overview ..................................6 6. Button Configuration ................................7 7. Before You Start..................................8 8. Installation ....................................8 9. Initial Setup ....................................10 10. Menu Settings..................................11 11.

  • Page 3: Introduction

    Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the product.

  • Page 4: Package Contents

    2. PACKAGE CONTENTS 1. 1 x 4K Dual View Dashcam with 2K Cabin Facing Cam 2. 1 x 12 / 24V Power Adapter 3. 1 x Windshield Mount 4. 1 x Mounting Bracket with 3M VHB™ Double-sided Tape 5. 1 x 3M VHB™ Double-sided Tape (Spare) 6.

  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS Screen: 2.4" IPS Resolution: 4K UHD - Ultra High Definition (3840 x 2160p) Frequency: 2.4 GHz Operating Voltage: DC 12 / 24V - Cigarette Lighter Adapter (CLA) Operating Temperature: 140F~1400F (-100C~600C) Viewing Angle: 139.4° (Front Camera), 132° (Cabin View Camera) Image Sensor: Maximum Signal Range: 9.84 Feet/3 Meters...

  • Page 6: Product Overview

    5. PRODUCT OVERVIEW 1. Function Buttons 2. Display Screen 3. Mounting Socket 4. Microphone 5. Front View Camera 6. Cabin View Camera 7. Status Indicator 8. Reset Button 9. USB-C Data Port 10. MicroSD Card Slot...

  • Page 7: Button Configuration

    6. BUTTON CONFIGURATION Apply configuration and settings to the Dashcam using the 5 function buttons. Refer to the screen display below for the buttons and their corresponding functions in different modes. Function Buttons Open Menu (click once) Switch between Front/Cabin/Rear/ 3-in-1 view (click once) Camera Mode Camera Mode...

  • Page 8: Before You Start

    7. BEFORE YOU START Before installing onto your vehicle, please test the product by powering it on and connecting it to the TYPE S Drive App (Section 16). Please use this document for detailed instructions and product information. 8. INSTALLATION Peel off the protective film Insert the MicroSD card into the slot from the display screen.
  • Page 9 Attach the Dashcam onto the windshield: - Apply the static sticker onto the cleaned windshield and peel off the protective film. - Slide the Mounting Bracket into the Windshield Mount. - Peel off the 3M VHB™ tape backer from the mount and attach the Dashcam onto the static sticker. Recommended mounting position WARNING: When installing, please ensure that it won't obstruct the driver's field of vision.

  • Page 10: Initial Setup

    Adjust the Cabin View Camera’s Route the power cable to your 12/24V outlet (cigarette lighter) and hide the cable in the headliner and pillars. position to get the best view of the We recommend going through the passenger side so interior of your vehicle.

  • Page 11: Menu Settings

    10. MENU SETTINGS Video Mode 4K + 2K 00:00:15 • The Dashcam will start recording automatically upon being connected to power. • If you have connected an add-on 1080P Rear Camera (BT532838, 2022.01.29 17:44:20 sold separately), the display will default to 3-in-1 view. •...
  • Page 12 Erase Files Video 1/15 • In previews, click 00:53 00:53 00:53 delete the selected file or all VID_001.AVI VID_002.AVI VID_003.AVI files in the current folder. 00:53 00:53 00:53 Cancel • Click to confirm the erase. VID_004.AVI VID_005.AVI VID_006.AVI Photo • Press and hold to return to folder selection.
  • Page 13 Exposure NOTE: Feature only available when the Dashcam is hardwired to the fuse panel. • Adjust the exposure level between +2.0, +1.0, 0, Hardwiring kit (AC533513) sold separately. -1.0 and -2.0 for different lighting conditions. Loop Record G-Sensor • Select the duration of each recorded footage •...
  • Page 14 Camera Setting Resolution • Select photo resolution between 12M (4608 x 2592), 8M (3840 x 2160) and 5M (3072 x 1728). Burst Photo System Setting • Burst Photo On/Off. Burst Photo Mode allows you to capture a series of photos in quick succession. System Setting Screen Save •...
  • Page 15 Night Vision WiFi Setting • Set Night Vision to AUTO. Auto Mode will apply • The auto sync function enables you to view automatically under low-light conditions with and manage files on your smart device using brightened and color display. the TYPE S Drive App.
  • Page 16 Media Setting Media Setting > Keypad Tone Keypad Tone > • Select to mute or unmute the keypad tone. Video Volume > Startup Sound Video Volume > • Select the video volume of each recorded footage Anti Flicker between Low, Mid and High. >...

  • Page 17: Camera Status & Led Indicators

    11. CAMERA STATUS & LED INDICATORS Power / Mode Status LED Indicators Power On Dashcam powers ON when the engine is turned on. Red and Blue LED lights stay on when Dashcam is To manually power ON, press and hold the power powering on.

  • Page 18: Time-Lapse Recording Logic

    13. TIME-LAPSE RECORDING LOGIC Mode Behavior Without time-lapse record, captures 30 frames per 1 second. 1 Second Time-lapse record, captures 1 frame per 1 second. 3 Seconds Time-lapse record, captures 1 frame per 3 seconds. 5 Seconds Time-lapse record, captures 1 frame per 5 seconds. 14.

  • Page 19: Downloading And Use The Type S Drive App

    15. DOWNLOADING AND USE THE TYPE S DRIVE APP The Dashcam’s auto sync function enables you to control and play back recorded media files using your smartphone with the TYPE S Drive App. Scan below QR code or search "TYPE S Drive" in the App Store or Google Play.

  • Page 20: App Setup

    6. Select the Dash Camera category. 7. Scroll down the device list and select S402 PRO & S402 DASH CAM. Click Set Up Device. 8. You should see the live view of Dashcam on the main interface if the connection is successful.
  • Page 21 iOS device (Follow steps 1 - 2 from previous page's instructions) 3. Please make sure Bluetooth, Location Services and Local Network Access are enabled on your device. 4. Run the TYPE S Drive App and select the Dash Camera category. 5.
  • Page 22 6. Click Join in the pop-up message if prompted to connect to the Dashcam’s WiFi network. OR Click to go to App permissions setting page. 7. Click Settings on the App permissions setting page. 8. Scroll to the top and click to enter the WiFi setting page.

  • Page 23: App Settings

    17. APP SETTINGS Main Menu On-screen Instructions WiFi Setting Microphone On/Off (iOS only) Display Mode Record Video Mode / Camera Mode Gallery Home Screen Display Mode Select from 5 different viewing modes. 01/01/2023 N 22.390 W 114.209 0mph Front Back Rear Front + Back NOTE: "Rear"...
  • Page 24 Change WiFi Password Click to open Main Menu, then navigate to System Setting > Change WiFi Password. Enter your preferred password (must be exactly 8 characters), then click OK for changes to effect. Connect to your Dashcam’s WiFi network again with the revised password. Note: It is recommended to reset your WiFi password upon initial connection to protect your data from unauthorized access.
  • Page 25 SD CARD Click to download the selected file onto your smart device to delete the file from the MicroSD card. MOBILE Click MOBILE to access and manage the downloaded file on your smart device even if it is disconnected from the Dashcam. Click to share or to delete the selected file.

  • Page 26: Viewing And Managing Media Files Using A Computer

    18. VIEWING AND MANAGING MEDIA FILES USING A COMPUTER USB-A to USB-C File Transfer Cable Mass Storage When connected directly to a computer via the cable provided, the Dashcam will default into charging mode. To view/ manage files in the MicroSD card, please go to menu >...

  • Page 27: Safety Information

    19. SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12 / 24V Car charger for Model BT532871. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. 4.
  • Page 28 all around the vehicle visually with mirrors before proceeding. • If you use Rear Camera (Not included), never back up while looking only at the screen. You should always check behind and around the vehicle when backing up just as you would if the vehicle did not have the Rear Camera.

  • Page 29: Maintenance & Warranty

    SAFETY AROUND AND BEHIND OTHER VEHICLES Many preventable injuries and deaths occur in driveways or parking lots when drivers do not see children, pets, or others near their vehicles. Here are a few safety tips that will help you to avoid a back-over accident: •...
  • Page 30 warranty shall be the exclusive remedy of the purchaser and TYPE S makes no other warranty of any kind aside from the limited express warranty stated above. NOTE: Warranty only applies for North American customers of purchases made in North America.
  • Page 31 For customer service and technical support, please call us at 1.866.294.9244. If at that time it is determined that a replacement unit is needed, the support representative will issue a Return Authorization and instruct on how to get a new unit. TYPE S makes no other warranty of any kind aside from the limited express warranty stated herein.

  • Page 32: General Information

    indirect, in contract, tort or otherwise) incurred in connection with the Dashcam, including but not limited to damaged property, personal injury and/or loss of life. Neither shall TYPE S and/or its affiliates have any liability for any decision, action or inaction taken by any person in reliance on the Dashcam, or for any delays, inaccuracies and /or errors in connection with the Dashcam and its functioning.
  • Page 33 In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation. S402 PRO 4K Dual View Dashcam with 2K Cabin Facing Cam...
  • Page 34 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. 1.866.294.9244 | info@typesauto.com ©2023 TYPE S. All rights reserved. www.typesauto.com ML-532871E_V1...

This manual is also suitable for:
