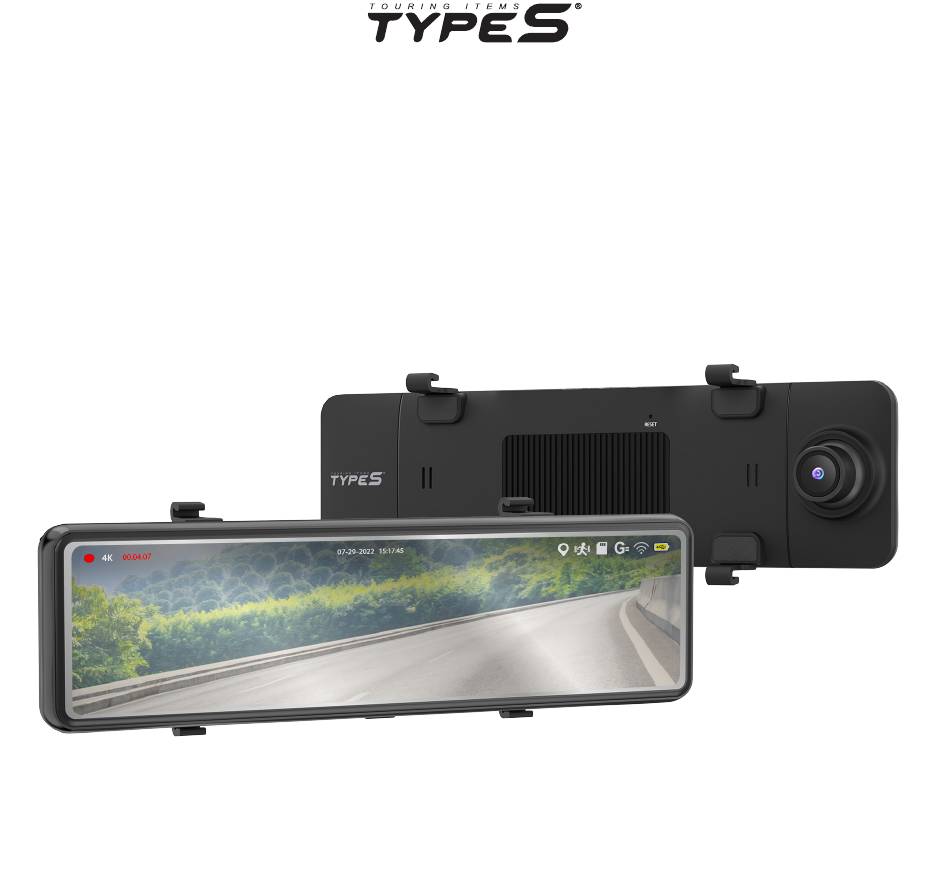

  • Page 1 Y400 4K Mirror Dashcam WP ITM. BT532783 Care & Use Instructions Important, retain for future reference: Read carefully...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..................................... 3 2. Package Contents ................................. 4 3. Product Specifications ................................ 5 4. Product Dimension ................................5 5. Product Overview .................................. 6 6. Before you Start ..................................7 7. Installation ....................................7 8. Initial Setup ....................................9 9.

  • Page 3: Introduction

    The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the product. Consult an experienced technician if you are not comfortable installing the product. You can also contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any...

  • Page 4: Package Contents

    2. PACKAGE CONTENTS 16GB Product code / Code de produit / Código del producto : BT533004 Register this product within 30 days of purchase to receive 1 FREE YEAR of additional warranty coverage (beyond the standard one year warranty), along with special product offers and announcements. Enregistrez ce produit dans les 30 jours suivant l'achat pour recevoir une couverture supplémentaire GRATUITE DE 1 AN (au-delà...

  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS Screen: 9.4" IPS Resolution: 4K UHD - Ultra High Definition (3840 x 2160p) Frequency: 2.4 GHz Operating Voltage: DC 12V / 24V - Cigarette Lighter Adapter Operating Temperature: 140F~1400F (-100C~600C) Viewing Angle: 139.4° (optical diagonal field of view) Image Sensor: Battery Capacity: 500mAh...

  • Page 6: Product Overview

    5. PRODUCT OVERVIEW AV-IN MICRO SD 1. Mounting Strap Fixing Anchor 6. Light Sensor 2. USB-C Power input 7. Microphone 3. AV-IN port for 1080P Rear Camera 8. Power Button (Not included) 9. Speaker *BT532838 sold separately. 4. MicroSD Card Slot 10.

  • Page 7: Before You Start

    6. BEFORE YOU START Before installing the Dashcam onto your vehicle, please test it first by powering it on and connecting it to the TYPE S Drive App (Section 14). Please use this document as your reference for detailed instructions and product information. 7.
  • Page 8 Adjust lens angle accordingly for Plug the power cable into the USB-C power the best view. port of the Dashcam. Route the power cable to your 12/24V outlet (cigarette lighter) and hide the cable in the headliner and pillars. We recommend going through the passenger side so the cable doesn't get into the driver's way.

  • Page 9: Initial Setup

    8. INITIAL SETUP Date & Time Set date & time. The date stamps that appear on all 2022 08-16-2023 future recordings will follow this setting. The date & 2023 time also automatically sync with your smart device 16:58:00 2024 when you connect the Dashcam to TYPE S Drive App. Cancel Confirm 9.
  • Page 10 Screen Save Mode Switch between different screen modes. Front Camera Mode Rear Camera Mode Split Screen Mode NOTE: Rear Camera Mode and Split Screen Mode only available when the 1080P Rear Camera (sold separately) is connected. Live View Snapshot Swipe Up/Down to adjust view Start/Stop Recording Swipe Up/Down to adjust brightness Settings Menu...

  • Page 11: Settings & Operation

    10. SETTINGS & OPERATION Switching Screen Modes • Front Camera Mode is set as default. • If you have connected an add-on 1080P Rear Camera (BT532838, sold separately), you may click to switch to Rear Camera Mode or to switch to Split Screen Mode. Rear Camera (Optional) •...
  • Page 12 Settings Menu • Click to open settings menu.
  • Page 13 1. Video Resolution Switch between 4K (3840 x 2160P), 2K (2560 x 1440P) and FHD (1920 x 1080P) recording resolutions. The add-on 1080P Rear Camera (BT532838) resolution is fixed at FHD (1920 x 1080P). 2. HDR HDR On/Off. The HDR function allows the Dashcam to maintain clarity of the footages under extreme lighting conditions.
  • Page 14 8. Rear Screen Flip Rear Screen Flip On/Off. Select ON to flip the rear camera image upside down so that the screen displays correctly in live view and recorded files. NOTE: Rear Screen Flip is only available when the add-on 1080P Rear Camera (BT532838) is connected. 9.
  • Page 15 15. Screen Brightness Adjust screen brightness manually or automatically. Feature only available in live view during Manual Mode. 16. Date and TYPE S Logo Stamp Date and TYPE S Logo Stamp On/Off. When you set this as ON, the date and TYPE S logo stamp will show on all recorded media files.
  • Page 16 23. Language Default language of the Dashcam is English. 24. Device Info Show the Dashcam's current firmware version. 25. Regulatory Info Show regulation related information. Gallery • Play Back and Manage Files Click at the upper left of the screen and select from the dropdown to browse the galleries: - Video Front - Photo Front - Event Front...
  • Page 17 • Scroll through the previews and click to view the file. • In video playback, click to pause and to resume the video. • Click to adjust video speed to X2, X4 or X8. Erase Files • Click in previews, then click the files you want to erase. NOTE: The files you select will be marked with the icon.

  • Page 18: Recording Time

    11. RECORDING TIME Total Recording Time M e m o r y Card Capacity (4K) (2K) (FHD) (4K+FHD) (2K+FHD) 16GB At least 57 minutes At least 77 minutes At least 138 minutes At least 40 minutes At least 50 minutes 32GB At least 119 minutes At least 224 minutes...

  • Page 19: Technical Specifications

    13. TECHNICAL SPECIFICATIONS Memory Management Mode Resolution 1 Minute Video Size Loop Period (16GB SD Card) 3840 X 2160 225MB 12865 / 225 = 57 Minutes 2560 X 1440 165MB 12865 / 165 = 77 Minutes 1920 X 1080 93MB 12865 / 93 = 138 Minutes 4K+FHD 3840 X 2160 + 1920 X 1080 315MB 12865 / 315 = 40 Minutes...

  • Page 20: Download And Use The Type S Drive App

    14. DOWNLOAD AND USE THE TYPE S DRIVE APP The Dashcam’s auto sync function enables you to control and play back recorded media files using your smartphone with the TYPE S Drive App. Scan below QR code or search "TYPE S Drive" in the App Store or Google Play.

  • Page 21: App Setup

    15. APP SETUP Auto sync with the Dashcam 1. Open the Dashcam's menu. Go to WiFi and turn it on. NOTE: WiFi is ON by default. Android Device 2. Navigate to the WiFi setting page on your device. 3. Connect to “TYPE_S_ DVR08_4K_xxxxxx”...
  • Page 22 6. Scroll down the device list and select Y400 MIRROR DASH CAM. Click Set Up Device. 7. You should see the live view of Dashcam on the main interface if the connection is successful. NOTE: After the initial sync, the App remembers your Dashcam’s...
  • Page 23 Run the TYPE S Drive App and select the Dash Camera category. Scroll down the device list and select Y400 MIRROR DASH CAM. Click Set Up Device. Click Join in the pop-up message if prompted to connect to the Dashcam’s WiFi network.
  • Page 24 TYPE_S_DVR08_4K_XXXXXX...

  • Page 25: App Settings

    16. APP SETTINGS Main Interface Main Menu On-screen Instructions WiFi Setting (iOS only) Microphone On / Off Display Mode Record Video Mode / Camera Mode Home Screen Gallery Display Mode Select from 2 different viewing modes. NOTE: "Rear" mode only available when the add-on 1080P Rear Cam (BT532838) is connected.
  • Page 26 Change WiFi Password Click to open Main Menu, then navigate to System Setting > Change WiFi Password. Enter your preferred password (must be exactly 8 characters), then click OK for changes to effect. Connect to your Dashcam’s WiFi network again with the revised password. NOTE: It is recommended to reset your WiFi password upon initial connection to protect your data from unauthorized access.
  • Page 27 SD Card MOBILE Click MOBILE to access and manage the Click to download the selected file onto your smart device or to delete the file from downloaded file on your smart device even if it the MicroSD card. is disconnected from the Dashcam. Click share or to delete the selected file.
  • Page 28 GPS Signal Status 2 GPS receiver is searching for GPS signal when the footage is recorded. GPS trip data will resume once it picks up the signal. If this status persists, please contact our technical support for troubleshooting.

  • Page 29: Viewing And Managing Media Files Using A Computer

    17. VIEWING AND MANAGING MEDIA FILES USING A COMPUTER USB-A to USB-C Data Transfer Cable (Included) When connected directly to a computer via the cable provided, the Dashcam will default into charging mode. To view/manage files in the MicroSD card, please go to menu >...

  • Page 30: Safety Information

    18. SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of 12/24V car charger for Model BT532783. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. 4.
  • Page 31 vehicle did not have the Rear Camera. Always make sure your intended path is clear. If you back up while looking only at the monitor, you may hit a vehicle, pedestrian, bicyclist, child, pet or other object resulting in injury or death. Always back up slowly. •...

  • Page 32: Maintenance & Warranty

    • Walk completely around your vehicle before getting in. Check for kids, toys, and pets before entering the vehicle and starting the engine. • Know where children are. Have children stand in a place where they are in full view. •...
  • Page 33 CONDITIONS OF WARRANTY If during the 1 year warranty period your new product is found to be defective, TYPE S will repair such defect, or replace the product, without charge for parts or labor subject to the following conditions: 1. All repairs must be performed by TYPE S. 2.
  • Page 34 Authorization and instruct on how to get a new unit. TYPE S makes no other warranty of any kind aside from the limited express warranty stated herein. DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIES, IS MADE AS TO THE DASHCAM.

  • Page 35: General Information

    20. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules.
  • Page 36 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation. Y400 4K Mirror Dashcam BT532783 Responsible Party: TYPE S 2975 Red Hill Ave., Ste.
