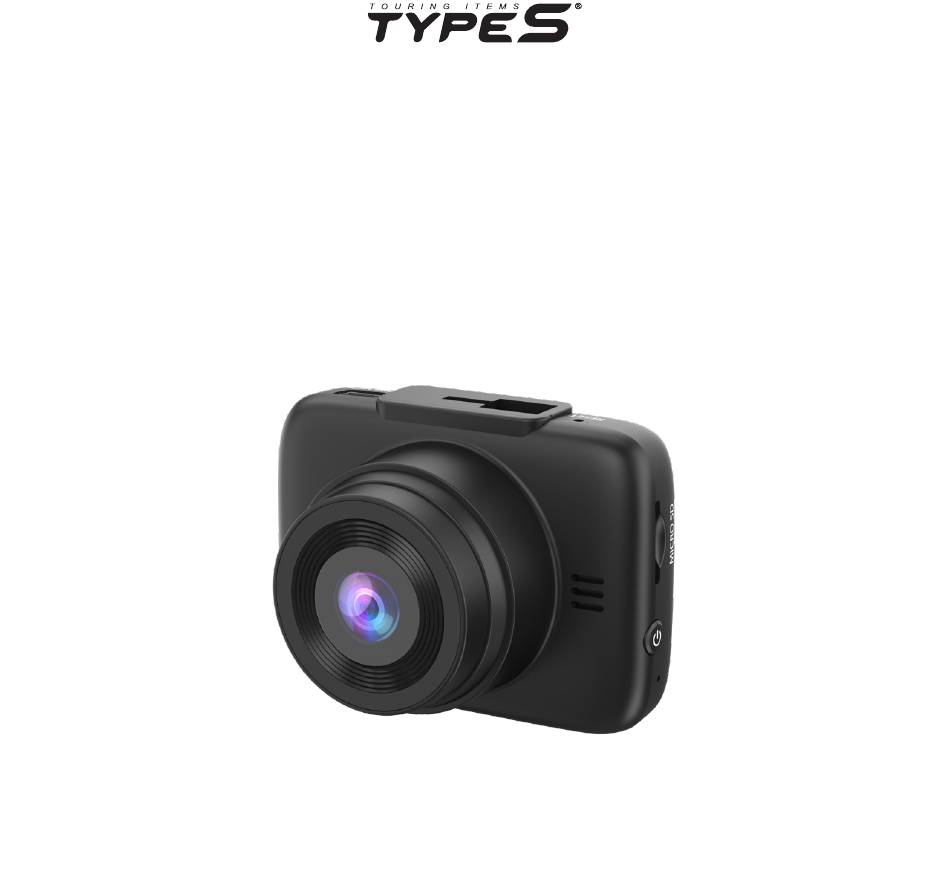

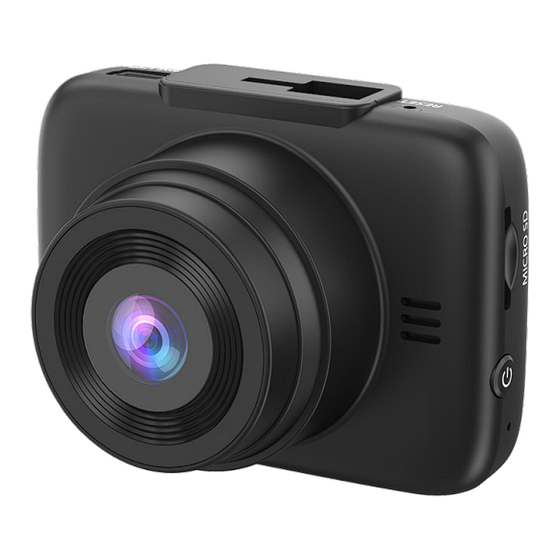

S1
720P Dashcam
WP ITM. BT533079
Care & Use Instructions
Important, retain for future reference:
Read carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TypeS S1

  • Page 1 720P Dashcam WP ITM. BT533079 Care & Use Instructions Important, retain for future reference: Read carefully...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ....................................3 2. Package Contents ...................................4 3. Product Specifications ................................5 4. Product Dimension ................................5 5. Product Overview ..................................6 6. Installation ....................................7 7. Initial Setup ....................................8 8. Button Configuration ................................9 9. Camera Status & LED Indicators ............................10 10.
  • Page 3: Introduction

    The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. Consult an experienced technician if you are not comfortable installing the product. You can also contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any...
  • Page 4: Package Contents

    2. PACKAGE CONTENTS 1. 1 x 720P Dashcam 2. 1 x Suction Cup Mount 3. 1 x 12 / 24V DC Power Adapter 4. 1 x 3.28' / 1m USB-A to Mini USB File Transfer Cable 5. 1 x 4GB MicroSD Card (Pre-installed) 6.
  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS Screen: 2" IPS Resolution: 720P / 30FPS Frequency: 2.4 GHz Operating Voltage: DC 12V / 24V - Cigarette Lighter Adapter (CLA) Operating Temperature: 140F~1400F (-100C~600C) Viewing Angle: 110° Diagonal Image Sensor: Battery Capacity: 180mAh 4. PRODUCT DIMENSION 2.48 in / 63 mm 1.39 in / 35.3 mm 1.83 in /...
  • Page 6: Product Overview

    5. PRODUCT OVERVIEW 1. Display Screen 6. Power Reset Hole 2. Mini USB Power Input 7. Speaker 3. Function Buttons 8. MicroSD Card Slot 4. Camera Lens 9. Power Button 5. Mounting Socket 10. Microphone...
  • Page 7: Installation

    6. INSTALLATION Peel off the protective film Insert the MicroSD card into the slot from the display screen. if it's not already in there. Attach the Plug the power windshield mount cable into the Mini onto the Dashcam. USB power port of the Dashcam.
  • Page 8: Initial Setup

    Attach the Dashcam onto your windshield. Utilize the knobs on the mount to tighten the suction cup. Route the power cable to your cigarette lighter outlet (12/24V DC outlet) and hide the cable in the headliner and pillars. We recommend going through the passenger side so the cable doesn't get into the driver's way.
  • Page 9: Button Configuration

    8. BUTTON CONFIGURATION Apply configuration and settings to the Dashcam using the power button and 4 function buttons. Refer to the screen display below for the buttons and their corresponding Function functions in different modes. Buttons Power Button - Master On/Off (press and hold for 3 sec) - Wake up from Screen Save (press once) Settings Menu (press once) Lock/Unlock Video (press once)
  • Page 10: Camera Status & Led Indicators

    9. CAMERA STATUS & LED INDICATORS Power / Mode Status LED Indicators Power On Dashcam powers ON when the engine is turned on. Red and Blue LED lights stay on when Dashcam is To manually power ON, press and hold the power powering on.
  • Page 11: Technical Specifications

    11. TECHNICAL SPECIFICATIONS Memory Management Mode Resolution 1 Minute Video Size Loop Period (4GB SD Card) 640 X 480 80MB 3778 / 80 = 47 Minutes 1280 X 720 100MB 3778 / 100 = 37 Minutes 1920 X 1080 120MB 3778 / 120 = 31 Minutes Memory Card Capacity System Reserve...
  • Page 12: Safety Information

    12. SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12V/24V Car charger for Model BT533079. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. 4.
  • Page 13 • Do not strike the Dashcam. It is a precision instrument. Otherwise, it may malfunction or cause damage resulting in a fire or an electric shock. • This product will only provide images of items that are within the field of view of the Dashcam. Thus, it is imperative that the Dashcam should be kept clean and unobstructed.
  • Page 14: Maintenance & Warranty

    13. MAINTENANCE & WARRANTY CLEANING • If dirt, lent, or just is on the Dashcam, the display screen may not clearly display objects. Rinse with water and wipe with a dry cloth. • Do not use alcohol, benzene or thinner to clean the Dashcam. This will cause discoloration. To clean the Dashcam, wipe with a clean cloth dampened with mild cleaner diluted with water and then wipe with a dry cloth.
  • Page 15 6. This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation, removal or reinstallation of the product, or damage to any mobile phone device or vehicle. OWNER’S RESPONSIBILITIES: TYPE S will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS MONDAY THROUGH FRIDAY 8:00 AM TO 5:00 PM.
  • Page 16 The Dashcam is not intended to be a substitute for rearview mirrors or for any other motor vehicle equipment mandated by law. Even when properly installed, our Dashcam has a limited field of vision and does not provide a comprehensive view of the rear area of the vehicle. TYPE S and/or its affiliates are not responsible for a user’s intended or actual use of the Dashcam.
  • Page 17: General Information

    14. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules.
  • Page 18 S1 720P Dashcam BT533079 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. Tel: 1-866-294-9244...
  • Page 20 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. 1.866.294.9244 | info@typesauto.com ©2022 TYPE S. All rights reserved. www.typesauto.com ML-533079_V1...
