TypeS T402 Care & Use Instructions

TypeS T402 Care & Use Instructions

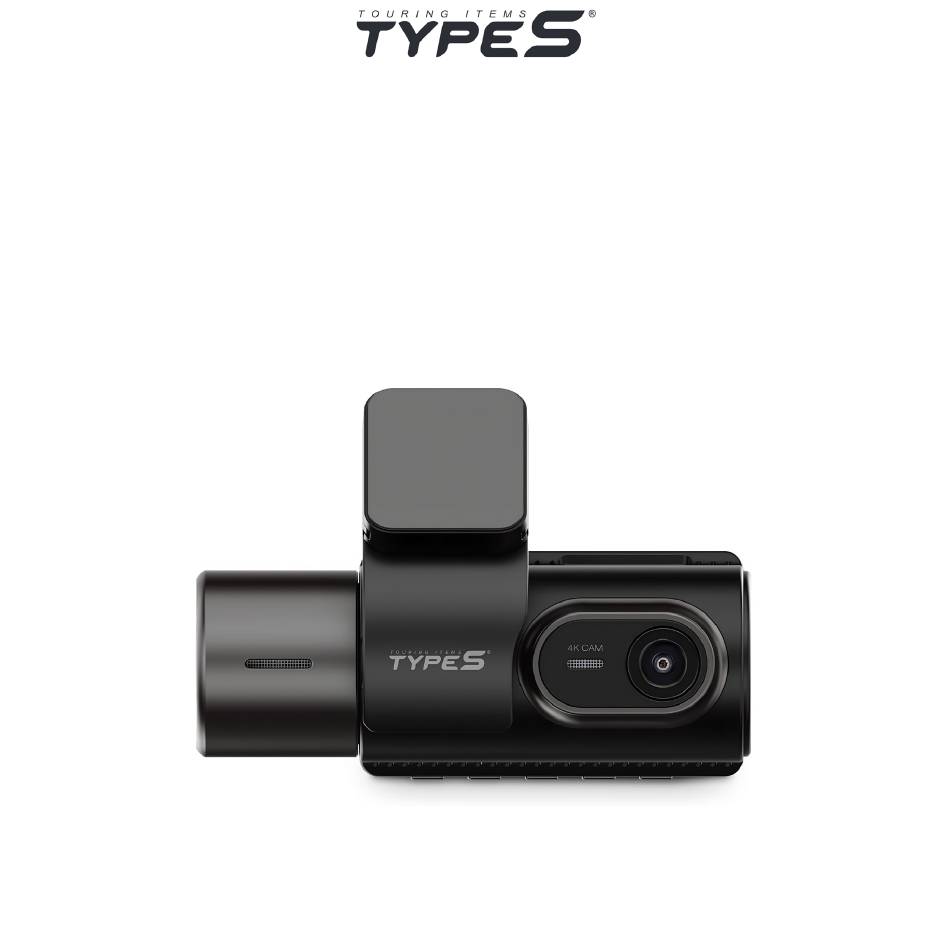

Dual view 4k dashcam with enhanced ai features
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
T402
Dual View 4K Dashcam with Enhanced AI Features
WP ITM. BT534799 / BT534799F
Care & Use Instructions
Important, retain for future reference:
Read carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TypeS T402

Summary of Contents for TypeS T402

  • Page 1 T402 Dual View 4K Dashcam with Enhanced AI Features WP ITM. BT534799 / BT534799F Care & Use Instructions Important, retain for future reference: Read carefully...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction…………………………………………………………………………………………………………………………………………..2 2. Package Contents………………………………………………………………………………………………………………………………….3 3. Product Specifications…………………………………………………………………………………………………………………………..4 4. Dimensions……………………………………………………………………………………………………………………………………………4 5. Product Overview………………………………………………………………………………………………………………………………….5 6. Controlling The Camera…………………………………………………………………………………………………………………………6 7. Installing The Camera…………………………………………………………………………………………………………………………….7 8. Configuring The Menu Settings……………………………………………………………………………………………………………10 9. Camera Status & LED Indicators…………………………………………………………………………………………………………..30 10. Recording Time……………………………………………………………………………………………………………………………………30 11. Time-Lapse Recording Logic…………………………………………………………………………………………………………………30 12.

  • Page 3: Introduction

    1. INTRODUCTION Please carefully review all installation instructions before installing the product. Improper installation may void the manufacturer's warranty. These instructions are not applicable to all vehicle types and are provided as guidelines to aid in product installation. If you require assistance with camera installation, please feel free to either consult an experienced technician or reach out to TYPE S customer support at 1.866.294.9244.

  • Page 4: Package Contents

    2. PACKAGE CONTENTS 1. 1 x TYPE S T402 Dual View Dashcam 2. 1 x 12/24V Power Adapter 3. 1 x Mounting Bracket with 3M VHB™ Double-Sided Tape 4. 1 x Spare 3M VHB™ Double-Sided Tape 5. 2 x Cable Clips 6.

  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS T402 Dual View Dashcam Display: 2.4” Video Resolution: Front Camera – UHD 4K (3840 x 2160) Interior Camera – FHD 1080P (1920 x 1080) Frequency: 2.4GHz Operating Voltage: DC 12/24V / DC 5V (USB-C) Operating Temperature: 14°F~140°F (-10°C~60°C) Lens (View Angle): Front Camera –...

  • Page 6: Product Overview

    PRODUCT OVERVIEW 1. Speaker 6. Power Input 2. Front Camera 7. Display Screen Function Buttons 8. Infrared Sensors 4. Reset Button 9. Interior Camera 5. MicroSD Card Slot (MicroSD Card Factory-Installed) 10. LED Indicators...

  • Page 7: Controlling The Camera

    6. CONTROLLING THE CAMERA Apply configuration and settings to the camera using the 5 function buttons. Please refer to the section below for the functions of each button under different modes. Function Buttons Menu (click once) Switch between Front/Interior/PIP view (click once) Record/Stop Recording (press &...

  • Page 8: Installing The Camera

    7. INSTALLING THE CAMERA 1. Remove the protective film from the display screen. 2. Connect the USB-C power cable to the input port on the camera. MicroSD Card (Factory-Installed)
  • Page 9 3. Mount the camera onto the windshield: Take the adhesive film, remove the protective layer, and apply it onto the windshield. Peel off the 3M VHB ™ tape backer from the windshield mount and affix the camera to the center of the adhesive film. NOTE: To optimize the accuracy of AI calibration, we recommend placing the camera at the center of your windshield, right behind your rear view mirror.
  • Page 10 4. Route the power cable through the headliner and pillars inside your vehicle. To ensure it doesn’t obstruct the driver’s view, we recommend passing it through the passenger side. You may use the cable clips included to prevent the cable from dangling. Adjust the interior camera to get the best view of the cabin.

  • Page 11: Configuring The Menu Settings

    8. CONFIGURING THE MENU SETTINGS Initial Setup Set the date & time before using the camera. The date stamps that appear on all future recordings will follow this setting. You may also sync the date & time to your phone by connecting the camera to the TYPE S Drive App.
  • Page 12 Auto-Calibration The front camera features an AI-powered Advanced Driver Assistance System. Upon initial use, the device will automatically calibrate to enhance the accuracy of detecting safety events. Please note that this calibration process may take up to 15 minutes to complete. Tips for Faster Calibration Calibration requires an active GPS signal.
  • Page 13 WARNING: Please ensure you complete the initial calibration. Failure to do so may result in inaccurate data, potentially affecting your safety and the performance of Advanced Driver Assistance features while driving. Recalibrating the AI Recalibration is required when transferring the camera to a different vehicle. To do this, format the SD card in General Settings, and then repeat the calibration process.
  • Page 14 Video Mode • This is the default recording setting. The camera will start recording automatically once it is powered on. • By default, videos are recorded in 1-minute segments and saved onto the MicroSD card. When the memory reaches capacity, new videos will overwrite the old ones. •...
  • Page 15 Gallery • Select Gallery in the menu. • Utilize to cycle through Event, Video, Photo and Parking folders, then click to select. • In each folder, you can select between browsing front and interior camera footages or photos.
  • Page 16 Play Back and Manage Files • Utilize to browse through the previews, then click to open the file in full screen. • Click to play back the current video file. • During video playback, click to pause and click again to resume the video. •...
  • Page 17 Erase Files • In previews, press and hold to delete the selected file. • Click to confirm the erase. • Click to return to folder selection.
  • Page 18 Advanced Driver Assistance System (ADAS) To adjust the Advanced Driver Assistance System settings, select Driver Assistance in the menu.
  • Page 19 1. Forward Collision Warning The camera calculates an estimated safe following distance between your vehicle and the vehicle ahead while driving above the speed you select. When the distance falls below 1 second, visual and audio alerts will be issued. Select the speed at which you would like the feature to be activated.
  • Page 20 2. Lane Departure Warning The Lane Departure Warning system provides alerts when your vehicle deviates from the driving lane at a speed over the selected threshold. Select the speed at which you would like the feature to be activated. 40 MPH 45 MPH 50 MPH 60 KM/H...
  • Page 21 3. Pedestrian Collision Warning The camera tracks nearby pedestrians, cyclists, and motorcyclists. If any of these road users are detected within 33 feet (10 meters) ahead while you’re driving between 7 MPH and 25 MPH (10 KM/H and 40 KM/H), visual and audio alerts will be issued.
  • Page 22 Video Settings 1. Resolution Switch video resolution between 4K + FHD, 2K + FHD and FHD + FHD. 2. Loop Record Select the duration of each recorded video file between 1 minute, 3 minutes and 5 minutes. The oldest unlocked files will be overwritten once the storage limit is reached.
  • Page 23 3. G-Sensor Adjust the G-Sensor sensitivity between High, Mid, Low and OFF. When the G-Sensor detects a sudden impact, like a collision, it automatically locks and saves the footage in the Event folder to prevent important data from being overwritten by the loop record feature.
  • Page 24 6. Time Lapse Select between normal and time lapse video. Time lapse videos are recorded at a lower frame rate to create an accelerated time effect during playback (refer to page 30). NOTE: Please set Motion Detect to OFF to activate the Time Lapse function. 7.
  • Page 25 General Settings...
  • Page 26 1. Screen Saver Select the period of inactivity to activate the screen saver. When the screen saver is running, a digital clock will be displayed, and the screen will remain active for any AI warnings. 2. Digital Clock Enable/Disable the digital clock in the screen saver. If set to OFF, the screen saver will present a black screen instead.
  • Page 27 5. Speed Unit Select the unit of speed between MPH and KM/H. Default speed unit is set as MPH. 6. Plate Number Stamp Input your vehicle license plate number here. When activated, your plate number will be displayed on all recorded media files. 7.
  • Page 28 10. Format SD Card Format the MicroSD card. This action will erase all data stored on the MicroSD card. NOTE: Formatting the SD card will erase all auto-calibration settings for the ADAS features. Please make sure to recalibrate the camera AI after formatting (refer to page 12). 11.
  • Page 29 Audio Settings 1. Keypad Tone Mute/Unmute keypad tone. 2. Startup Sound Startup Sound On/Off. 3. Record Audio Record Audio On/Off. This feature enables the camera to capture sound during recording.
  • Page 30 4. Audio Alerts Audio Alerts On/Off. If set to ON, the system will sound an alert whenever an AI warning is triggered by active Driver Assistance features. 5. Video Volume Adjust the volume of the recorded footage.

  • Page 31: Camera Status & Led Indicators

    9. CAMERA STATUS & LED INDICATORS Power / Mode Status LED Indicators Power On Red LED light stays on when camera is powering Camera powers ON when the engine is turned on. Recording Red LED light flashes. Recording Stopped Red LED light stays on. RECORDING TIME Memory Card Total Recording Time...

  • Page 32: Technical Specifications

    TECHNICAL SPECIFICATIONS Memory Management Mode Resolution 1-Minute Video Size Loop Period (32GB SD Card) 4K + FHD 3840 X 2160 + 1920 X 1080 240MB ≈ 106 minutes 2K + FHD 2560 X 1440 + 1920 X 1080 180MB ≈ 142 minutes FHD + FHD 1920 X 1080 + 1920 X 1080 150MB...

  • Page 33: Downloading The App

    DOWNLOADING THE APP The auto-sync feature in the TYPE S Drive App allows you to 1) Synchronize the camera’s time with your phone’s time, 2) Manage the camera’s functions from your phone, and 3) View and download recorded videos. To access this feature, scan the QR code below or search for “TYPE S Drive” on the App Store or Google Play.

  • Page 34: Setting Up The App

    SETTING UP THE APP Auto-sync with the Camera Press and hold in the live view to access the camera’s WiFi QR code. Alternatively, click to open the camera’s menu and navigate to General Settings > WiFi. The designated QR code will appear.
  • Page 35 Before Connecting: If your vehicle has wireless Apple CarPlay or wireless Android Auto (the wired version is fine), please temporarily disconnect your phone from them, as they may hinder the connection. App connection is NOT mandatory for using the camera; it is primarily for accessing video files wirelessly.
  • Page 36 Android Device 3. Run the TYPE S Drive App and select the Dash Camera category.
  • Page 37 4. Select AI SERIES DASHCAM from the list of devices. Click Set Up Device.
  • Page 38 5. Click OK, then allow the App to access your camera when prompted.
  • Page 39 6. Scan the QR code on the camera.
  • Page 40 7. Once connected, you will be able to see the camera’s live view through the App. NOTES: After the initial sync, the App remembers your camera’s network so that you will be automatically directed to the live view the next time you join, without the need for manual reconnection. The camera connects to only one device at a time.
  • Page 41 iOS Device (Follow Steps 1-2 from previous instructions) 3. Please make sure Bluetooth, Location Services and Local Network Access are enabled on your device. 4. Run the TYPE S Drive App and select the Dash Camera category.
  • Page 42 5. Select AI SERIES DASHCAM from the list of devices. Click Set Up Device.
  • Page 43 6. Click OK, then allow the App to access your camera when prompted.
  • Page 44 7. Scan the QR code on the camera.
  • Page 45 8. Click Join in the pop-up message when prompted to connect to the camera’s WiFi network.
  • Page 46 9. (Optional) If there is any issue with the auto pairing, exit the App and navigate to the WiFi setting page on your device. Connect to “TYPE_S_DVR27_4K_xxxxxx” with the default password “12345678”, then return to the App.
  • Page 47 10. Once connected, you will be able to see the camera’s live view through the App.
  • Page 48 NOTES: After the initial sync, the App remembers your camera’s network so that you can simply click Join to reconnect next time. For older iPhones, you may need to temporarily switch off DATA to access this feature. The camera connects to only one device at a time. If it was previously connected to another device, make sure that device is either out of range or has WiFi turned off.
  • Page 49 WiFi Connection Troubleshooting If you’re having trouble connecting, please follow these steps: 1) Disconnect wireless Apple CarPlay / Android Auto (not needed for wired). 2) Temporarily enable Airplane Mode. In WiFi setting, connect to the camera’s WiFi network using password “12345678”. 3) Return to the App and allow all permissions when prompted.

  • Page 50: Using The App

    USING THE APP Main Interface Main Menu On-screen Instructions Audio Recording On/Off Display Mode Record/Stop Recording Snapshot Home Screen Gallery...
  • Page 51 Display Mode Select from 3 different viewing modes. Front Back Front + Back...
  • Page 52 Change WiFi Password Click to open Main Menu, then navigate to General Settings > Change WiFi Password. Enter your preferred password (must be exactly 8 numeric characters), then click OK. Connect to your camera’s WiFi network again with the revised password. NOTE: It is recommended to reset your WiFi password upon initial connection to protect your data from unauthorized access.
  • Page 53 Gallery on the main interface to enter the media gallery. Select SD CARD to access all media files sorted Click from latest to oldest in the MicroSD card. Scroll down the list to access the file. In each file, you can browse between front and interior camera footages or photos.
  • Page 54 SD CARD Click to download the selected file onto your smart device or to delete the file from the MicroSD card.
  • Page 55 MOBILE Select MOBILE to access and manage downloaded files on your smart device, even when it is disconnected from the camera.
  • Page 56 GPS Information Click to play the downloaded footage, and click to view embedded GPS location simultaneously during playback. NOTE: The icon will only appear if the GPS signal was present while the recording took place.
  • Page 57 GPS Signal Status No GPS signal or map tracking. Please check your mobile data connection. If this status persists through multiple recordings, please contact our technical support for troubleshooting.

  • Page 58: Viewing And Managing Media Files Using A Computer

    VIEWING AND MANAGING MEDIA FILES USING A COMPUTER When connected directly to a computer via the cable provided, a pop-up will prompt you to access Mass Storage Mode. Once confirmed, the screen below will show up. The camera will function as a card reader for the computer, and it will appear as a new USB drive.

  • Page 59: Faqs

    FAQS 1) Problem: The camera is not providing AI warnings even after driving for a while. Solution: Ensure the GPS signal is strong, as AI features require an active GPS connection. If the issue persists, check if the AI calibration is complete and restart the camera if needed. 2) Problem: Can’t connect to App, or "Connection Error”.

  • Page 60: Safety Information

    SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of 12/24V car charger for Model BT534799 / BT534799F. Before using the product, read all instructions and cautionary markings. Do not expose car charger to rain, moisture, or snow. Use of an attachment not recommended or sold by the product manufacturer may result in a risk of fire, electric shock, or injury to persons.
  • Page 61 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The AI Dashcam is designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle.
  • Page 62 Never allow children to play with the device. Small parts may be a choking hazard. • There is a plastic cover over the AI Dashcam. Do not scratch the cover when cleaning dirt or snow from • If the temperature changes rapidly, the system may not operate normally. •...
  • Page 63 Roll down your window so you will be able to hear what is happening outside your vehicle. • Owners of SUVs, trucks, and vans need to take extra care to avoid hitting or running over a child. • Teach children to move away from a vehicle whenever it is started. •...

  • Page 64: Maintenance & Warranty

    MAINTENANCE & WARRANTY CLEANING If dirt, rain or snow attaches to the camera, the display screen may not clearly display objects. If water • droplets, snow or mud adhere to the camera lens, rinse with water and wipe with a dry cloth. •...
  • Page 65 2. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale. 3. The equipment must not have been altered or damaged through negligence, accident, improper operation, or failure to follow the product instructions for installation, use, or care. 4.
  • Page 66 FORTH HEREIN, TYPE S AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT LIMITATION, ANY STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TYPE S and/or its affiliates do not guarantee or promise that the user of AI Dashcam will not be in an accident or otherwise not collide with an object and/or person.

  • Page 67: General Information

    GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/EXCHANGE THE PRODUCT. FCC / IC Compliance Statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence exempt RSS(s) and Part 15 of the FCC rules.
  • Page 68 20cm during normal operation. CAN ICES (B)/NMB (B) Contains IC: 7297A-T401AI HVIN: BT534217 T402 Dual View 4K & 1080P Dashcam with Enhanced AI features BT534799 / BT534799F Responsible Party: TYPE S 2975 Red Hill Ave., Ste.
