8. Recommendations for a proper access to the model

AGD2
Access
8 1 Disconnect drain connection R1 and position it as to avoid hampering with fan shroud L1.
8.2 Unscrew the fixing screws "A" of the conveyor L1 (in some models the screws are also present on the hinge side).

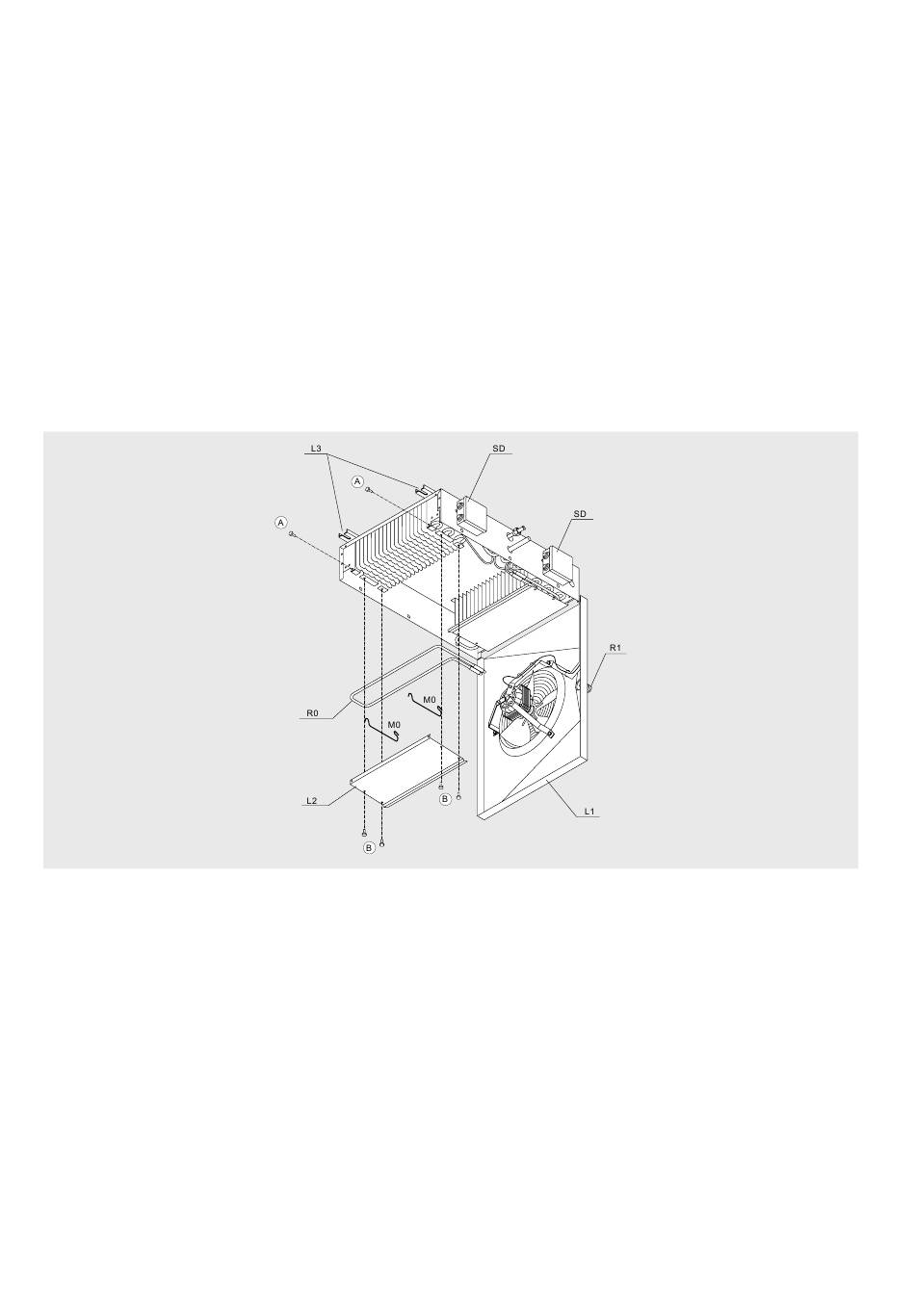

8 3 Bring fan shroud L1 to the position shown in drawing.
8 4 In order to work on the R0 heaters located under the heat exchanger, remove the inner drip trays L2 by unscrewing the
self-threading screws "B"; the R0 heaters are fixed to the pack by means of the M0 heater clips.
Reassembling
8 5 Reposition the drip trays L2 by fastening self threading screws "B".
8 6 Reposition the fan shroud L1 and fasten it with screws "A".
8 7 Reconnect drain connection R1.
L1 = Fan shroud
L2 = Inner drip tray
L3 = Supports
M0 = Heater clip
R0 = Heater
R1 = Drain connection
SD = Junction boxes (fans and heaters)
38
www.modine.com
Figure 4
