Summary of Contents for Silverline 3411

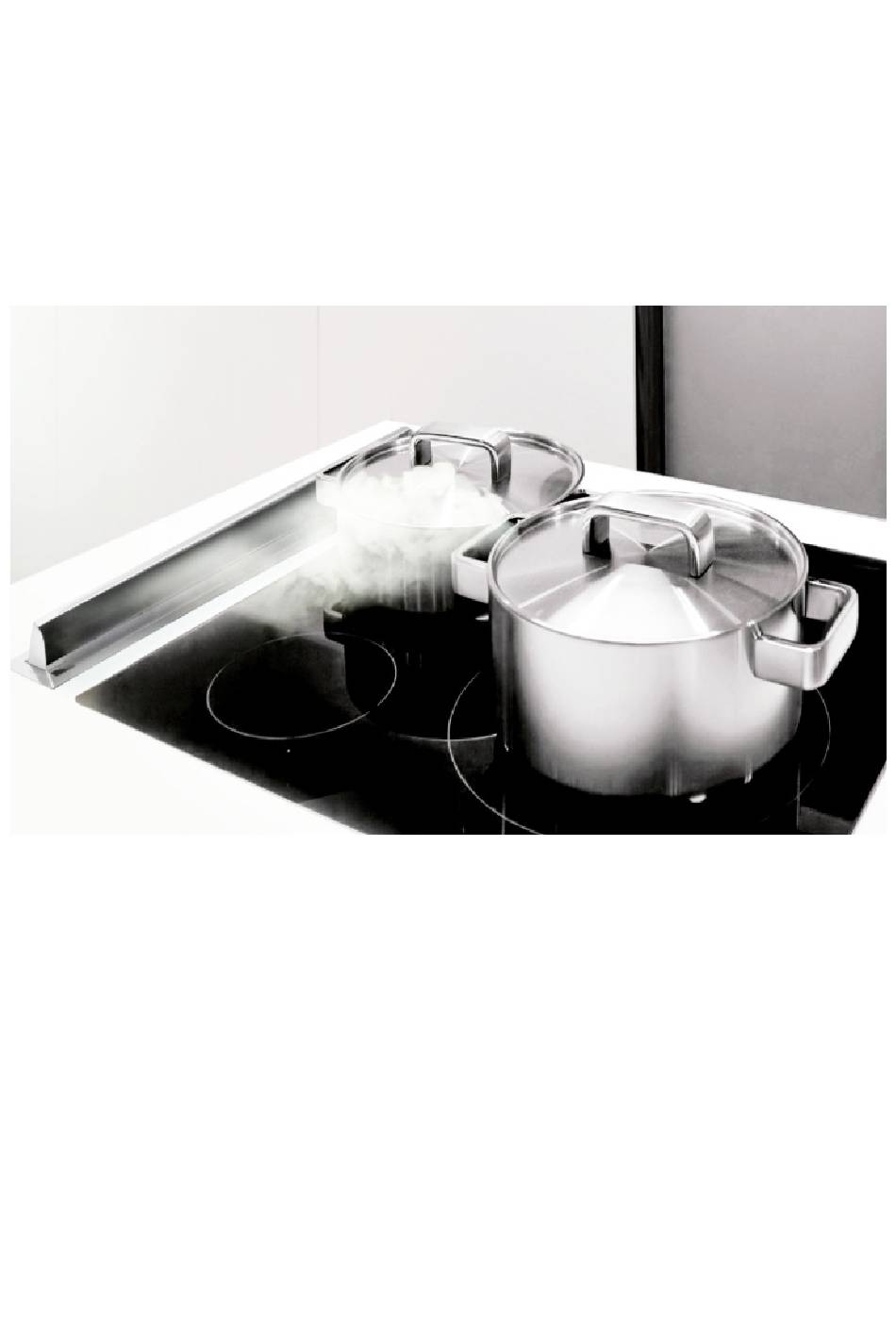

- Page 1 3411 Read this operation manual and installation prior to use and operate the equipment.
- Page 2 General view of the extractor hood Fig. 1: Overview Drawing 1: General view Closure flap Closure frame Control panel Hood casing Engine box Power cord Electronic box Window switch box (optional - only for air recirculation operation) Active charcoal filter box (optional - only for air recirculation operation)
- Page 3 1 Safety instructions Before using the hood, please read these 1.1 User Manual instructions completely. Keep this instructions manual for future reference. In case the device is handed over to a third party, please forward the instructions manual as well. You should follow these instructions in order to prevent injuries of people and damages to the device.
-
Page 4: Safety Instructions
1 Safety instructions 1.3 Children, specific indivi- duals Those (including children) who are unable to use the device safely due to mental, physical or motor abilities (specific individuals) should not be allowed to use the device without supervision, or can only use it following in- structions by a responsible person. - Page 5 1 Safety instructions Any open flame may cause flaming of the hood. Cleaning of the hood with equipment or utensils not provided for this purpose, with a steam cleaner for example (=> maintenance) Any repairing by unauthorized personnel (=> after-sales service) WARNING! 1.5 Fire hazard Risk of burns! Misuse of the hood can cause...
- Page 6 1.7 Failure of the device WARNING ! Do not mount or use a faulty hood. Repair work must be carried out by an expert authorized by the manufacturer (after-sales service). The warranty claims do not apply in case of intervention by unauthorized personnel (=> Warranty) 2 Opening of packaging and assembly 2.1 Opening of...
- Page 7 2 Opening of packaging and assembly 2.3.2. General information on The hood is installed in the worktop at the assembly level of the hob. WARNING!! Danger of death due to damaged supply lines. When drilling, supply lines (electricity, gas and / or water) may be damaged.
- Page 8 2 Opening of packaging and assembly 2.3.3 Assembly drawings Drawing. M1 Drawing M2a...
- Page 9 2 Opening of packaging and assembly Drawing M2b Drawing M3...
- Page 10 2 Opening of packaging and assembly 2.3.4 The dimensions of the device 580, 880 560, 860 458, 758 460, 660 480, 780...
- Page 11 2 Opening of packaging and assembly 2.3.5 The steps required for assembly of the extractor hood. 1. The section on the bench 2. Direzione di collegamento della - You can connect the exhaust pipe to the scatola motore per la tubazione extractor hood in both directions (Drawing dell’aria di scarico M3).
- Page 12 2 Opening of packaging and assembly 2.3.6 Assembly of the extractor Cut out the section on the work plan. hood The MINIMUM distance between the rear side of the cooking field and the front side of the extractor hood is 20 mm (See Drawing M1 and page 12).
- Page 13 2 Opening of packaging and assembly 2.3.7 The extractor hood for To use this extractor hood for air circulation , circulation mount the circulation box over the absorbed air circulation box so that it can be blown back into the kitchen, for example over the edge of the kitchen furniture, etc.
- Page 14 3 Use 3.1 Instruction for use of the ex- You can use the extractor hood only with tractor hood the remote control The lid of the extractor hood opens by pressing it for 2 seconds. However, the engine does not work like this. The opening of the hood lid can be stopped by pressing + or - for 2 seconds.
-
Page 15: Automatic Shutdown
Automatic shutdown (The motor stops automatically after 15 minutes) To set the automatic shut-off time, press key for 3 seconds please. The opera- ting phase of the motor can be changed by pressing the keys. Press key 1 for 3 seconds to stop the auto- matic closing time. -
Page 16: Maintenance
4 Maintenance 4.1 General Instructions for Main- CAUTION! tenance Damage to the hood casing due to improper cleaning. A change in surface colour may occur. Do not use a steam cleaner to clean the hood casing. Abrasive cleaning agents such as vinegar, scouring, abrasive grain or sharp utensils should not be used. - Page 17 INFORMATION! For the maintenance of stainless steel surfa- ces, we recommend the aerosol treatment for stainless steel, Silverline ref. art. PS 500 ( 6.1), spray per acciaio inox. 4,3. Pulizia del filtro olio metallico. CAUTION! Fire hazard. A dirty metal grease filter may cause fire.
- Page 18 4 Maintenance 4.4 Removing, installing and clea- ning the metallic oil filter Open the closure lid as far as possible (see Drawing 5b). Press the lid back carefully. Thus, the safety lock becomes inactive and the extractor hood remains without electrici- ty.
- Page 19 4 Maintenance INFORMATION! Drawing 5a stainless steel grease filter with Firmly hold the filters to prevent damage to groove both the filter and the cooking area. Cleaning of metal grease filters To achieve this: -Soak the metal grease filters in hot dish wa- ter and clean them using a soft brush.
-
Page 20: Manutenzione
4 Manutenzione CAUTION! Excessive periods of cleaning or the use of 4.5 Operating the circulation with aggressive cleaning agents may damage the active charcoal filter AFP 711 and grille of the metal grease filter. Use only sui- the circulation box table cleaning agents (e.g. - Page 21 4 Manutenzione 4.5.2 Washing the charcoal filter The buffer of the activated charcoal filter can be washed 3 times at most. Average time for using at normal cooking is about 3-4 mon- ths. This period is reduced to 2-3 months for particularly fatty cooking.
-
Page 22: Maintenance Intervals
5 Failures / Reasons / Solutions 4.7 Maintenance Intervals Tasks Time period Procedures Washing metal Every 1 to 2 weeks or when any Cleaning the metallic oil filter( grease filter colour change is encountered due 4.4) Purging the liquid to grease accumulation The liquids ( 4.6) from the body of the...
