- Page 1 RANGEHOOD & INSTALLATION GUIDE 1350 Revision V1.0 SILVERLINE...
-
Page 2: Table Of Contents
Back Draft Fins ____________________________________________________________________________ 17 Installation Advice ________________________________________________________________________ 18 Roof Cowls/Roof Seal Kit __________________________________________________________________ 19 8. Maintenance Condensation Information ________________________________________________________________ 20 Troubleshooting _____________________________________________________________________________________________ 22 Technical Specifications __________________________________________________________________ 22 Faulty Installation _________________________________________________________________________ 23 9. Specification 1350 __________________________________________________________________________________________________________ 24 10. Disclaimer ___________________________________________________________________________________________________ 25 Page 2... -
Page 3: Welcome
1. Welcome Thank you for purchasing your new rangehood. To get the maximum output from this unit, please read through this guide before use. The guide contains important information on the use and maintenance of the unit, as well as important safety notes. -
Page 4: Your Safety
2. Your Safety WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances. -
Page 5: Before Installation
2. Your Safety Before Installation We recommend this appliance be installed or repaired by a qualified technician. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty. The manufacturer declines all responsibility in case of failure to adopt proper safety measures. Ensure that the location in which this appliance is installed, has good and permanent ventilation. -
Page 6: Product Use
2. Your Safety Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire. -
Page 7: Tips And Suggestions
3. Tips & Suggestions The Rangehood has one mode of operation: Air extraction: The air is drawn in and cleaned by the grease filters and directed outside. Please check the cleaning and maintenance section for the filters’ cleaning periods. For Users 1. -
Page 8: Description

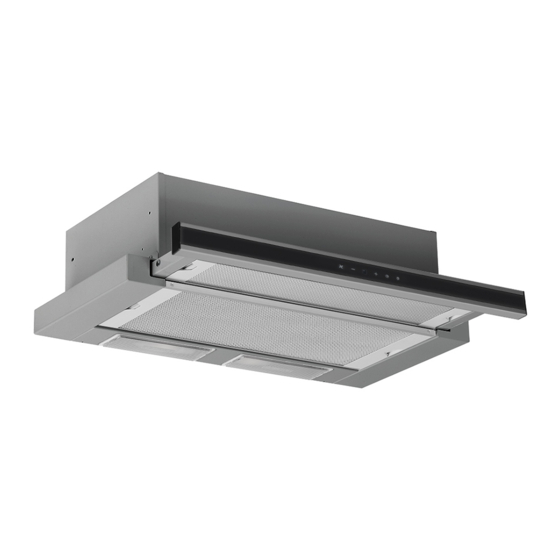

4. Description Slide-Out Rangehood 462±2 Front Panel Switch Filter Lighting A,B,C,D = Ø4 Speed Control This rangehood is equipped with a 3 speed mechanical control. Speed control usage suggestions: • Low speed for simmering. • Medium speed for light cooking. •... -
Page 9: Operation
5. Operation Control Panel Your appliance has multi select switch to control speed. We recommend using high speed whenever excessive fumes or odours are present. The motor runs when the slider set is turned on and stops when it is switched off (optional). It must be switched on a few minutes before starting cooking and should be kept running until the room is clear of fumes and odours. -
Page 10: Cleaning And Maintenance
6. Cleaning & Maintenance WARNING Always switch off and disconnect power before cleaning. Surfaces Wash with warm soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or solvents on any part of this appliance, Always make sure to dry the appliance after cleaning and never leave wet, as this will cause irreparable damage. -
Page 11: Cleaning The Interior
6. Cleaning & Maintenance WARNING • If the grease filters are very dirty, the motor will extract only a small quantity of air, which reduces its efficiency; • The grease deposits that build up on the filter are highly flammable and COULD EASILY CATCH FIRE. -
Page 12: Cleaning The Exterior
6. Cleaning & Maintenance Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly. For better results, you can use high quality cleaning and protection products (eg. Steel Kleen) to clean your rangehood. -
Page 13: Replacing The Light Bulb
6. Cleaning & Maintenance Replacing the Light Bulb DANGER Always switch off and disconnect power before replacing the lights. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off. Replacing the Bulbs Disconnect the hood from power. -
Page 14: Installation
7. Installation DANGER Always switch off and disconnect power before installing the rangehood. Failure to do so may cause serious injury. Cabinet Cutout Size Present the rangehood to your cabinet maker so that they may take their own measurements and check that the rangehood fits in the cabinet correctly. -
Page 15: Mounting Points
7. Installation WARNING If the user decides to install the rangehood at a distance of less than minimum height above the cooking surface, the Measurements are from company declines responsibility the top of the trivets to for damages suffered by the the lowest part of the rangehood due to excess heat rangehood, including... - Page 16 7. Installation 462±2 A,B,C,D = Ø4 DANGER Always switch off and disconnect power before installing the rangehood. Failure to A,B,C,D = Ø4 do so may cause serious injury. NOTE: Please make sure that all plastic protection on the rangehood and filters are removed before use. Step 2 Mount the appliance using the given 4 x 40 screws to the cabinet on the points A, B, C, D.
-
Page 17: Ducting
7. Installation Ducting Please do not crush or kink ducting, as it will reduce air flow and may cause noise to occur through the system. Ducting needs to be kept taut at all times. Back Draft Fins Should your Back Draft Fins get stuck, this is not a warranty issue. When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base, which are attached to the top of the motor outlet before installation. -
Page 18: Installation Advice
7. Installation Figure 1 Figure 2 Figure 3 Figure 4 Installation Advice Figure 5 • Never reduce flue diameter right next to the rangehood outlet fitting, refer to figure 1. • Never fit reductions next to curves or bends in the installations. They must always be in straight sections and as far as possible from the rangehood, refer to figure 2. -
Page 19: Roof Cowls/Roof Seal Kit
7. Installation Roof Cowls / Roof Seal Kit WARNING All electrical wiring should be kept inside the roof space. Roof Cowls* Flexi Ducting must be pulled taut. DO NOT crush or kink the ducting. Connect flexi ducting to the outlet on rangehood using duct tape or cable tie. -
Page 20: Maintenance
8. Maintenance Condensation Information The induction cooktop is designed to provide rapid heating, improved thermal efficiency and greater heat consistency. For some customers with an induction cooktop, condensation can form on their rangehood filters while using their cooktop. The induction cooktops’ heat source is contained in the conductive base of the pot. When compared with a gas, electric or wok burner, the heat is not isolated or contained to one area and therefore gradually rises up on all sides of the pot or frypan. - Page 21 8. Maintenance User advice to avoid condensation in the rangehood: • The rangehood should be switched on approx. 10 minutes prior to cooking and the delay shut down timer set after cooking has stopped in order to clear the fumes held in the flue. These steps will help clear the flue out fully.
-
Page 22: Troubleshooting
Light does not work Rangehood air suction is weak Rangehood does not direct air out (through chimney) Loud noise from the rangehood Technical Specifications Model 1350 Feeding Voltage 220-240V 50Hz Lamp Power — Halogen (W) 2 x 35W (supplied) Page 22... -
Page 23: Faulty Installation
8. Maintenance Calling the Technical Assistance Service Hotline In the event that the failure is not due to the faults mentioned in Troubleshooting, contact Technical Service on 1300 829 066. A service request will require the following information: • The purchase date •... -
Page 24: Specification
9. Specification Page 24... -
Page 25: Disclaimer
10. Disclaimer Under our policy of continuous product development, product specifications may change without notice. Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes the products being offered for sale. All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. - Page 26 Notes Page 26...
- Page 27 Page 27...
- Page 28 HOME APPLIANCES Unit 102/45 Gilby Road, Distributed by: Mt Waverley 3149 Victoria. 1300 881 693 (EST) www.schweigen.com.au...
