1.1 Levelogger Series

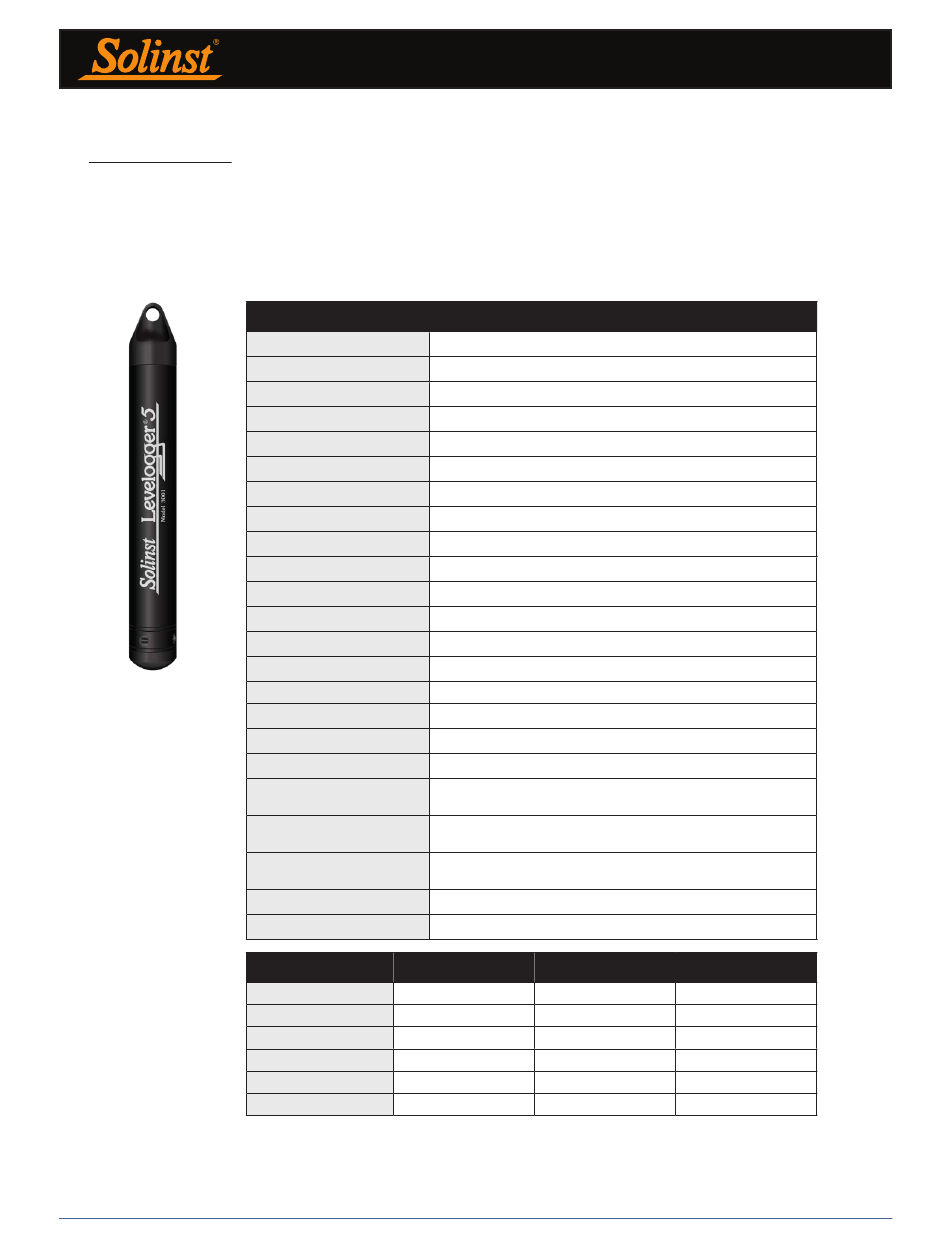

1.1.1 Levelogger 5
The Levelogger 5 is an absolute (non-vented) datalogger, which measures groundwater and surface water
levels and temperature. Water levels are displayed as temperature compensated pressure readings, and can be
barometrically compensated with the aid of a Barologger 5.
Note: Solinst recommends using the most recent Levelogger 5 firmware version with the latest Levelogger Software
version. See Section 2.3.
Level Sensor:
Ranges:
Accuracy
Resolution::
Normalization:
Temp. Comp. Range:
Temperature Sensor:
Temp. Sensor Accuracy:
Temp. Sensor Resolution:
Battery Life:
Clock Accuracy (typical):
Operating Temperature:
Maximum # Readings:
Memory:
Communication Speed:
Com Interface:
Size:
Weight:
Corrosion Resistance:
Wetted Materials:
Sampling Modes:
Measurement Rates:
Barometric Compensation:
M5
M10
M20
M30
M100
M200
Note: The Model number refers to the depth of submergence below water level that the pressure sensor can
withstand. i.e.: The Levelogger 5, which is available in M5, M10, M20, M30, M100, and M200 ranges has actual water
level ranges of 5 m (16.40 ft), 10 m (32.80 ft), 20 m (65.60 ft), 30 m (98.40 ft), 100 m (328.0 ft), and 200 m (656.2 ft),
respectively.
Levelogger 5 Technical Specifications
Piezoresistive Silicon with Hastelloy® Sensor
5, 10, 20, 30, 100, 200 m
± 0.05% FS
0.001% FS, 0.0006% FS
Automatic Temperature Compensation
0ºC to 50ºC
Platinum Resistance Temperature Detector (RTD)
± 0.05ºC
0.003ºC
10 years (based on 1 reading/minute)
± 1 minute/year (-40ºC to 80ºC)
-20ºC to 80ºC
150,000 sets of readings
Continuous or Slate mode
9600 bps, 57,000 bps with USB
Optical high-speed: USB, SDI-12
22 mm x 160 mm (7/8" x 6.3")
166 grams (5.9 oz.)
Baked-on coating using polymerization technology (inside and out)
and superior corrosion resistant Hastelloy pressure sensor
Delrin®, Viton®, 316L Stainless Steel, Hastelloy, Regulator approved
PFAS-free PTFE
Linear, Event & User-Selectable Schedule with Repeat Mode,
Future Start, Future Stop, Real Time View
0.125 second to 99 hours
High accuracy, air-only, Barologger
Models Full Scale
5 m (16.4 ft.)
10 m (32.8 ft.)
20 m (65.6 ft.)
30 m (98.4 ft.)
100 m (328.1 ft.)
200 m (656.2 ft.)
Levelogger Series User Guide
Accuracy Resolution
± 0.3 cm (0.010 ft.) 0.001% FS
± 0.5 cm (0.016 ft.) 0.0006% FS
± 1 cm (0.032 ft.) 0.0006% FS
± 1.5 cm (0.064 ft.) 0.0006% FS
± 5 cm (0.164 ft.) 0.0006% FS
± 10 cm (0.328 ft.) 0.0006% FS
