Levelogger Series User Guide
2.2 PC Interface Cable
If a datalogger is deployed in the field using a L5 Direct Read Cable (or older style Direct Read Cable), a PC
Interface Cable connects to the L5 Direct Read Cable for communication with the PC—no need to remove
the datalogger from the well.
PC Interface
Cable
Datalogger on
a L5 Direct Read
Cable Down Well

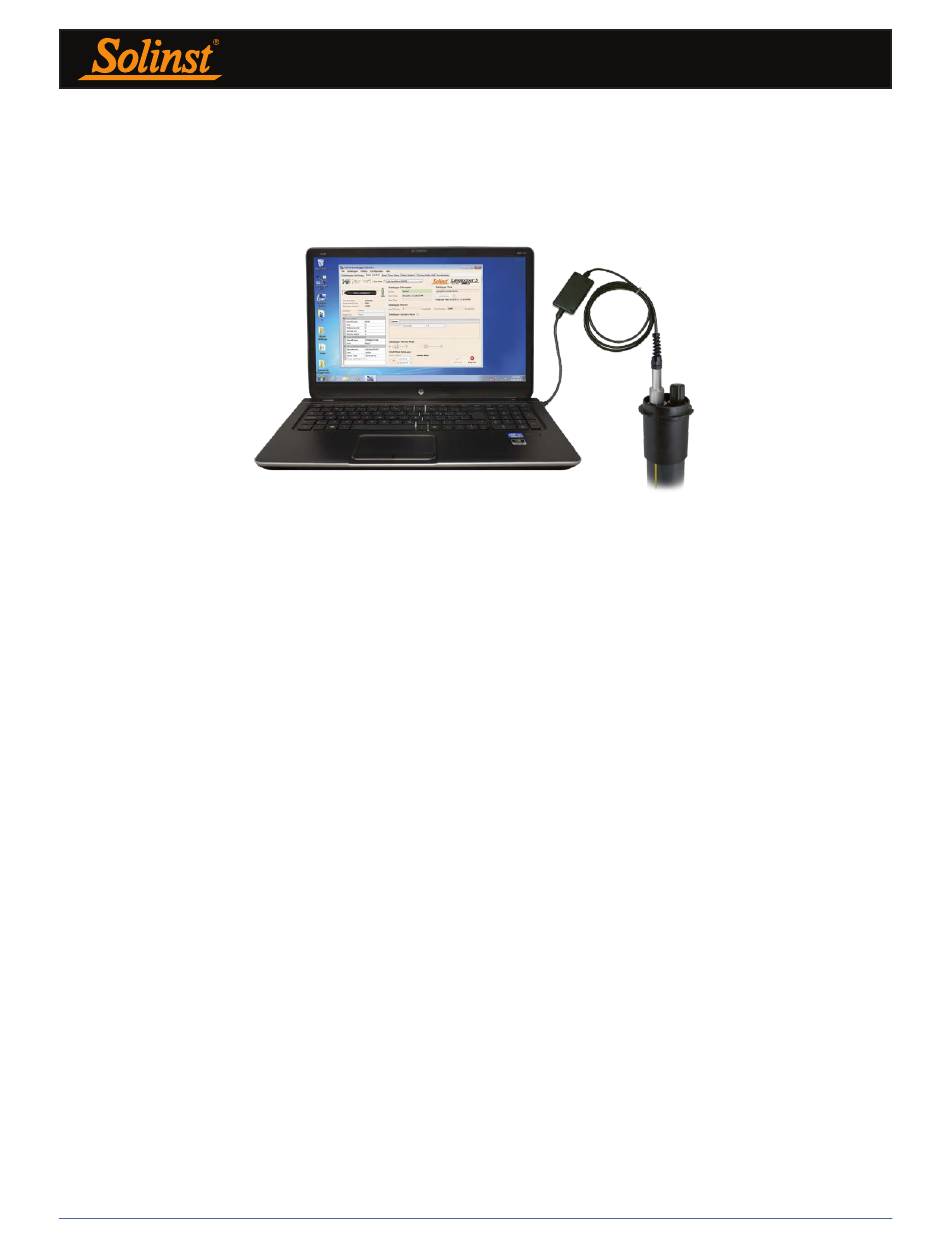

Figure 2-7 Datalogger and L5 Direct Read Cable Connected to PC Using a PC Interface Cable
Note: See Section 10.1.1.2 for more information on installations using Direct Read Cables.
Page 21
