Service Manual and
Repair Instructions
Disassembly and Assembly

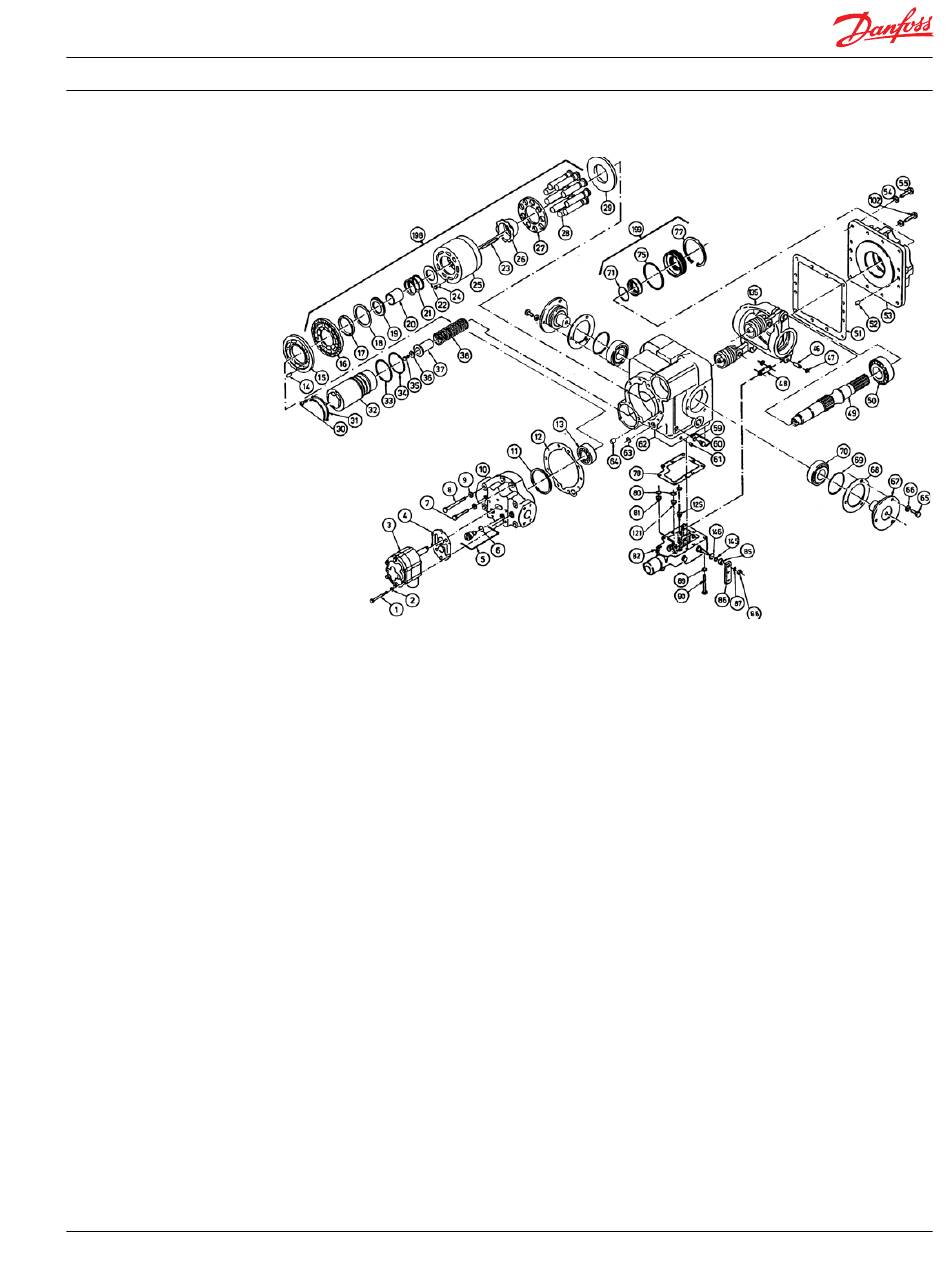

Exploded View

Axial Piston Pumps Series 20
Description of parts:
1 Hexagonal screw
2 Washer
3 Charge pump assembly
4 Gasket charge pump
5 Valve check
6 O-ring
7 Hexagonal screw
8 Hexagonal screw
9 Washer
10 End cap
11 Shim
12 Gasket
13 Bearing
14 Cylindrical pin
15 Valve plate
16 Bearing plate
17 Bearing plate pilot ring
18 Ring retaining
19 Retainer spring
20 Spring guide
21 Spring
22 Spring seat
23 Retainer spring
24 Cylindrical pin
25 Cylinder block
26 Retainer guide
27 Slipper retainer
L1003506 • Rev BA • Jun 2014
28 Piston assembly
29 Thrust plate
30 Screw
31 Sleeve retainer
32 Servo sleeve complete
33 O-ring
34 O-ring
35 Screw
36 Washer
37 Spring guide
38 Servo spring
46 Pin
47 Locking washer
48 Connecting link
49 Shaft
50 Bearing
51 Gasket
52 Cylindrical pin
53 Cover
54 Washer
55 Hexagonal screw
59 O-ring
60 Plug
61 Expander
62 Housing
63 O-ring
64 Cylindrical pin
P005 113
65 Hexagonal screw
66 Washer
67 Trunnion
68 Shim pack
69 O-ring
70 Bearing
71 O-ring
75 O-ring
77 Ring retaining
78 Gasket
80 O-ring
81 Orifice
82 Kit control valve
85 Spacer control servo
86 Handle control handle
87 Lock washer tooth
88 Nut hex
89 Washer
90 Hexagonal screw
102 Hexagonal screw
121 Orifice
125 Orifice
135 Swash plate complete
145 O-ring
146 O-ring
198 Cylinder block kit
199 Shaft seal kit
