Service Manual and

Repair Instructions

Disassembly and Assembly

Minor repairs

Axial Piston Pumps Series 20

The areas of repair indicated may be serviced, following the procedures in this manual, without

invalidating the warranty.

Preparation for assembly

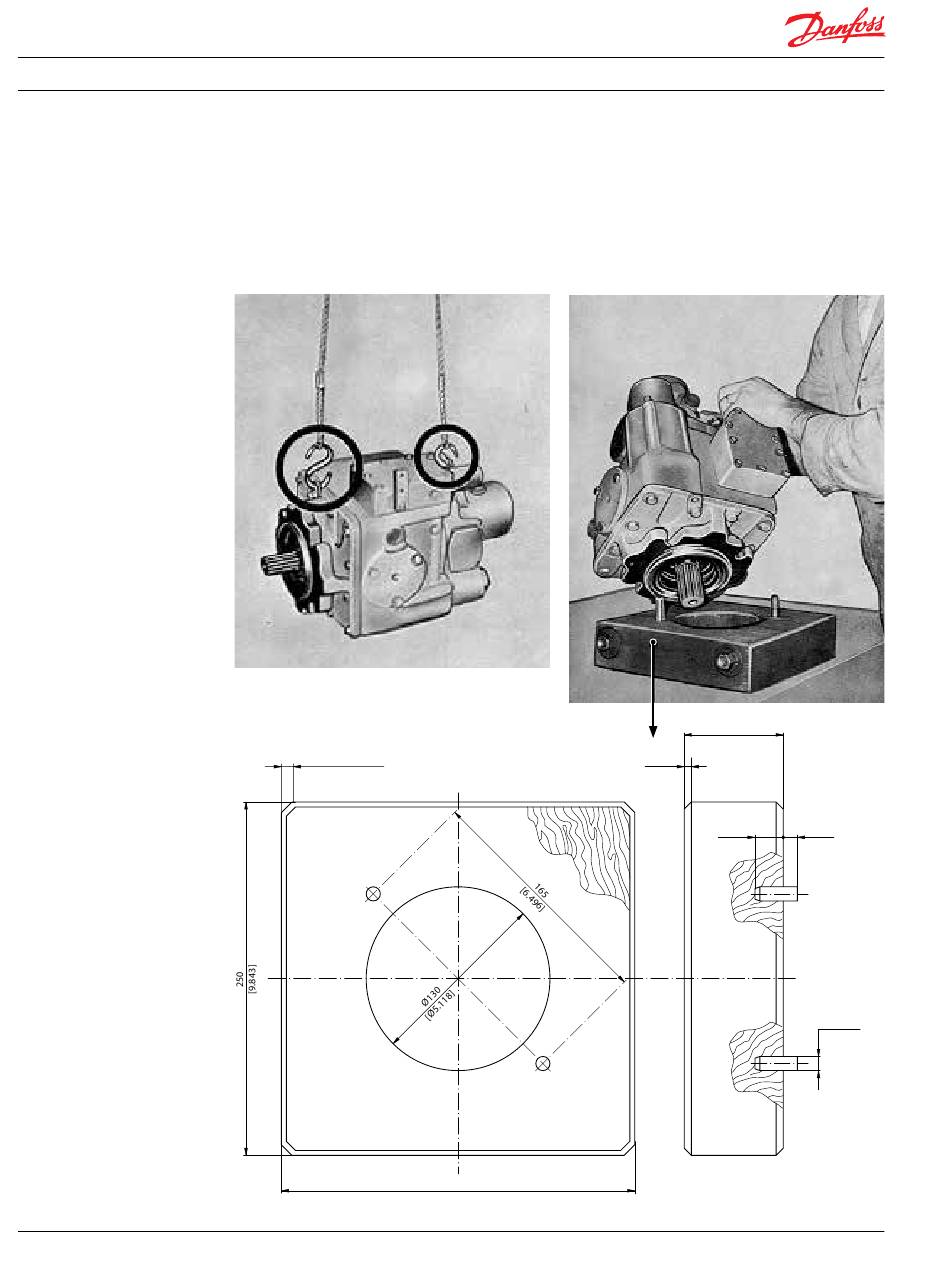

When using a lifting device, the hooks at the end of the slings, are to be fastened in the rings fitted at

the front and rear of the motor body. It is recommended that an mounting block should be used in

order to facilitate a profes sional operation.

ca. 5 mm Chamfer

[ca. 0.2 in]

L1003506 • Rev BA • Jun 2014

F000 085

250

[9.843]

[2.756]

5x45°

[0.787]

[0.394]

Ø10 Pin

[Ø0.394]

P005 112E

F000 084
