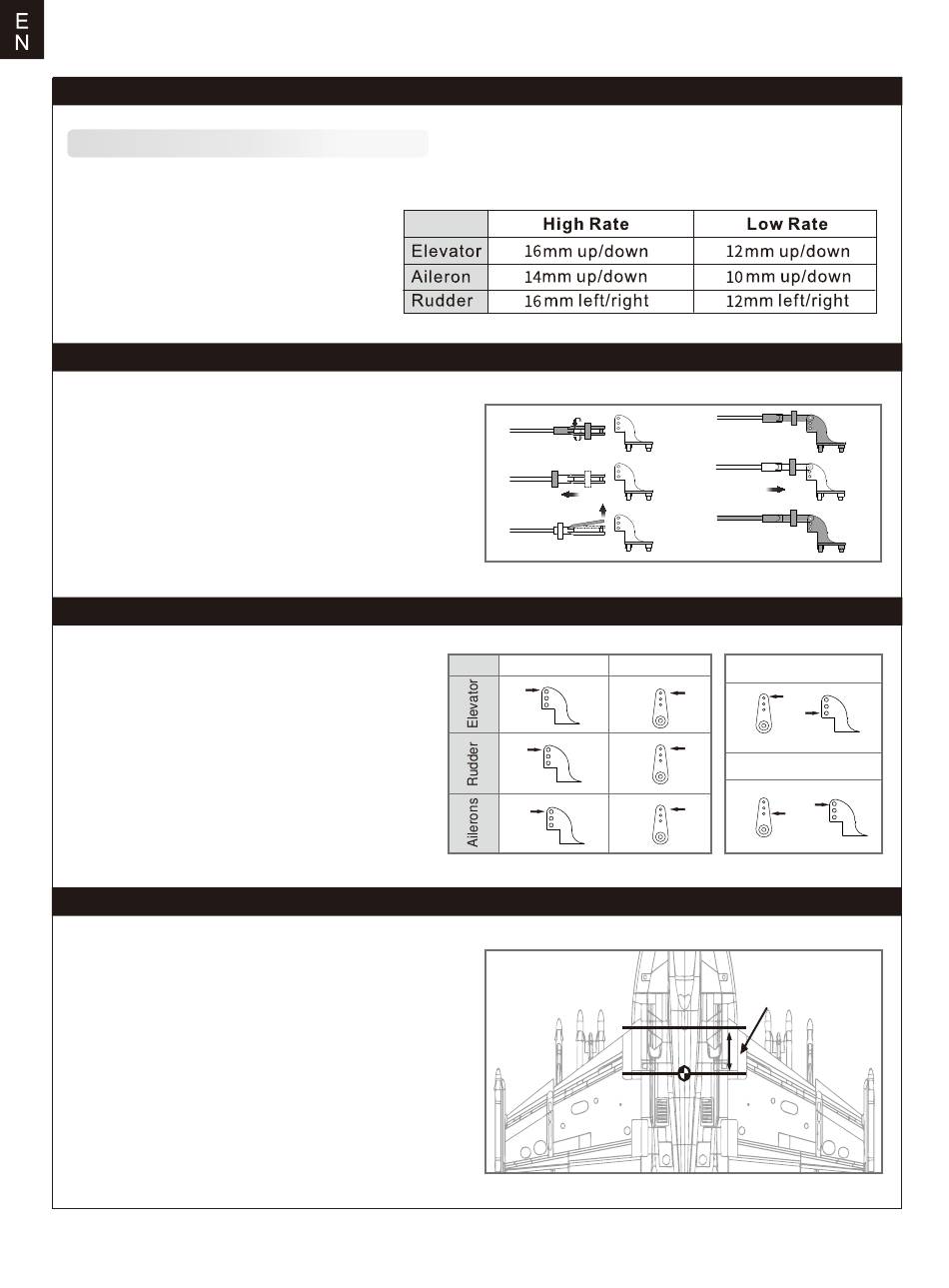

Get your model ready to fly

Check the control throws

The suggested control throw setting for the F/A-18F are as follows (dual rate setting):
Tips: On first flight, fly the model in low rate. The
first time you use high rates, be sure to fly at low
to medium speeds. High rate, as listed, is only for
EXTREME maneuvering.

Clevis installation

1. Pull the tube from the clevis to the linkage.
2. Carefully spread the clevis, then insert the clevis pin into
the desired hole in the control horn.
3. Move the tube to hold the clevis on the control horn.

Control horn and servo arm settings

1. The table shows the factory settings for the control
horns and servo arms. Fly the aircraft at the factory
settings before making changes.
2. After flying, you may choose to adjust the linkage
positions for the desired control response. See the
table to the below.
Check the C.G. (Center of gravity)
When balancing your model, adjust the battery as necessary
so the model is level or slightly nose down. This is the correct
balance point for your model. After the first flights, the CG
position can be adjusted for your personal preference.
1. The recommended Center of Gravity (CG) location for your
model is (60-70mm) from the leading edge of the main wing
(as shown) with the battery pack installed. Mark the location of
the CG on top of the wing.
2. When balancing your model, support the plane at the marks
made on the bottom of the main wing with your fingers or a
commercially available balancing stand. This is the correct
balance point for your model. Make sure the model is assem-
bled and ready for flight before balancing.
a.
b.
c.
Horns Arms
8
d.
e.
f.
More control throw
Less control throw
60-70mm
