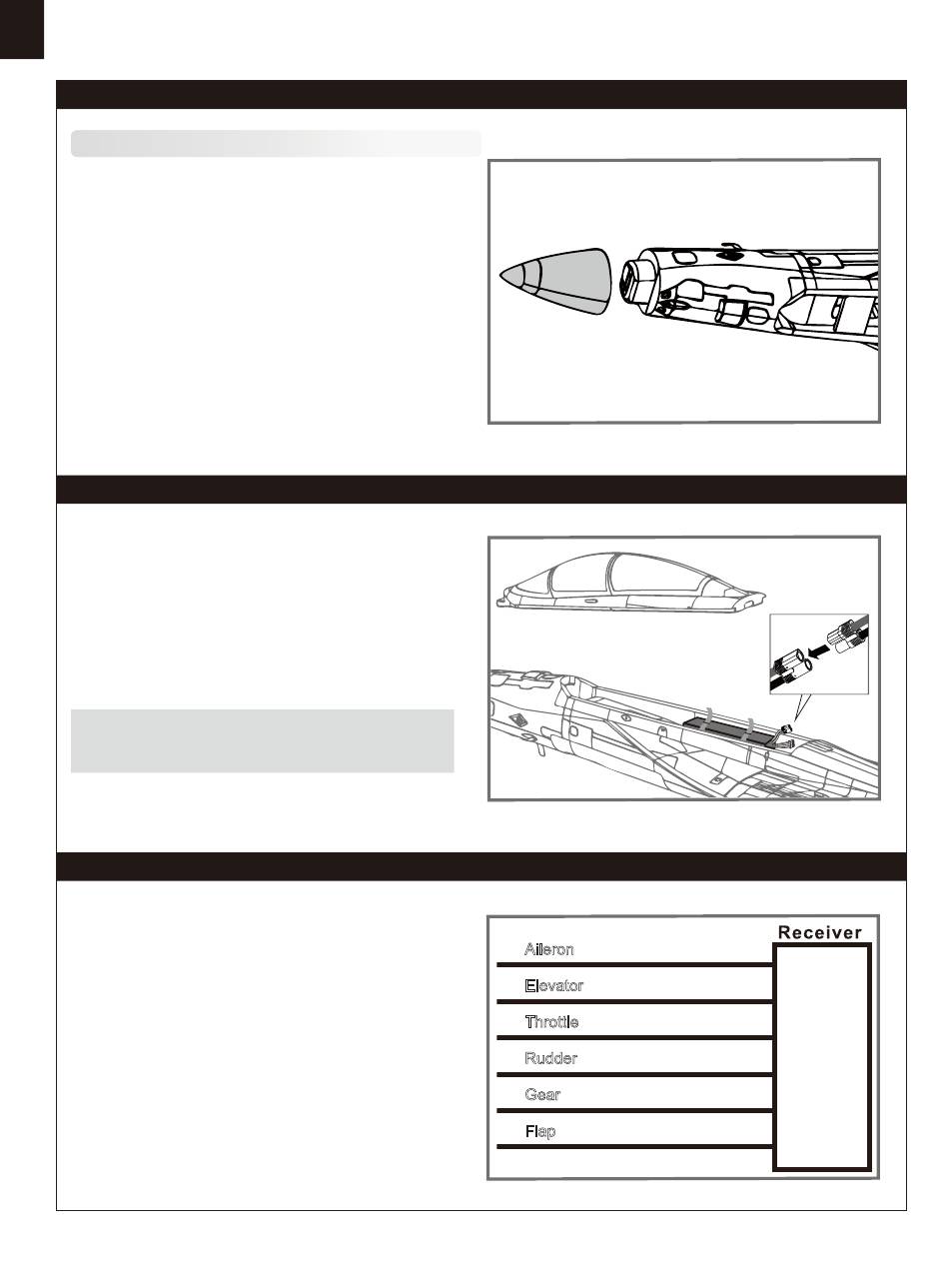

Model assembly
Nose cone installation
1.Attach the nose cone to the front of the fuselage; the nose
cone is held in place with a magnet. Please note that the
orientation of the nose cone is correct.

Battery installation

1.Pull back on the latch, releasing the canopy.
2.Remove the canopy, revealing the battery compartment.
3.Apply hook and loop tape to the battery.
4.Install a fully charged battery into the battery compartment,
with the battery cables facing aft.
Note: The center of gravity can be adjusted by moving
the battery forward or aft. Having the correct center of
gravity is critical to achieving proper flight characteristics.
Receiver wiring diagram
The cables from the servo connector board should be
connected to your receiver in the order shown. Note that the
rudder channel controls both the steering servo and the
rudder surface. The LEDs can be powered by any spare
channel on the receiver. Tuck the wire leads into the recessed
cavity towards the rear of the battery hatch.
Aileron
Elevator
Throttle
Rudder
Gear
Flap
6
1
Channel-1
-Aile
2
Channel-2
-Elev
3
Channel-3
-Thro
4
Channel-4
-Rudd
5
Channel-5
-Gear
6
Channel-6
-Flap
