Summary of Contents for FMS 1100MM ZERO A6M5

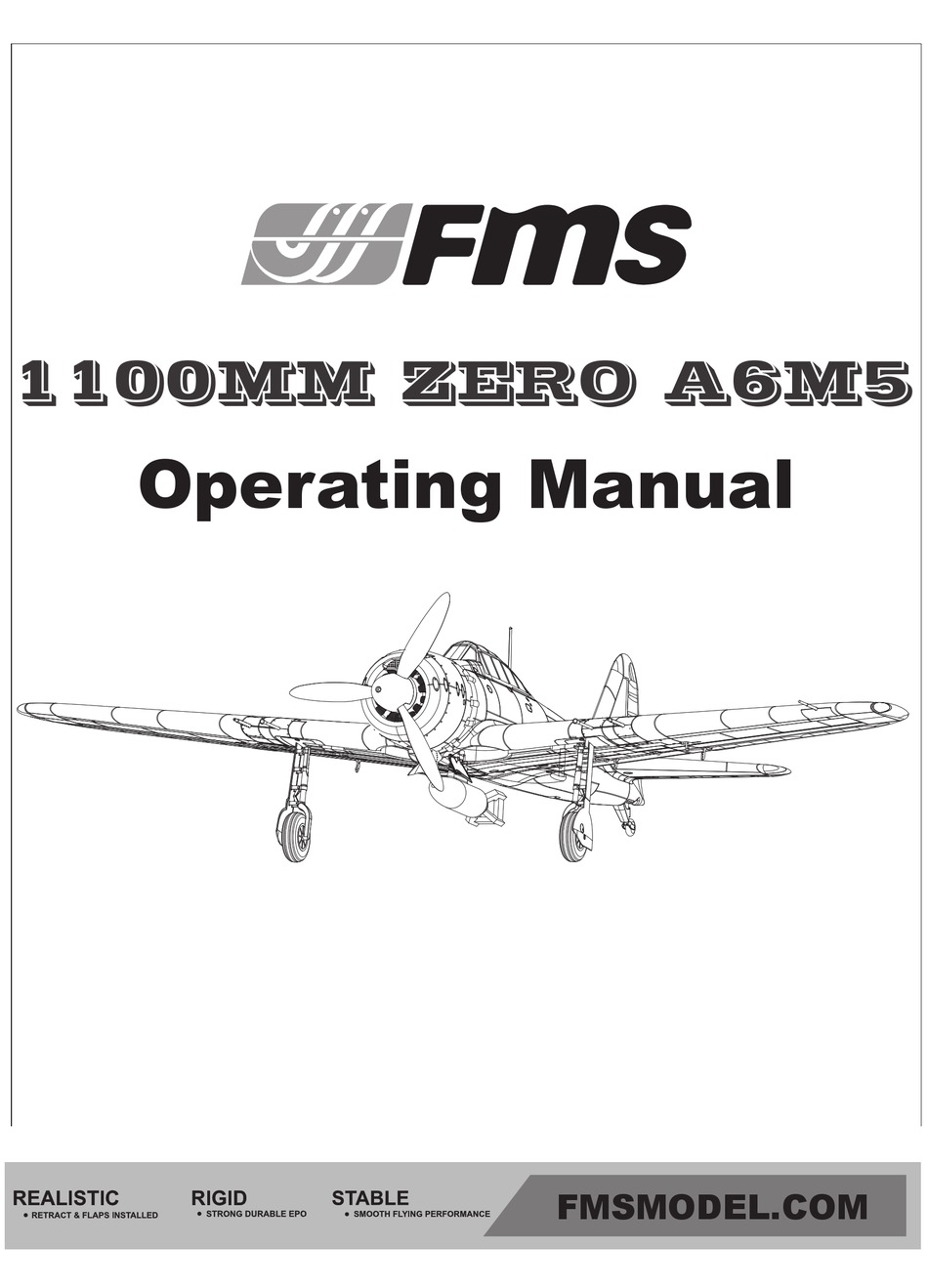

- Page 1 1100MM ZERO A6M5 Operating Manual FMSMODEL.COM...
- Page 2 WARNING WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product. personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires in injury or damage to the product or other property.
-
Page 3: Table Of Contents

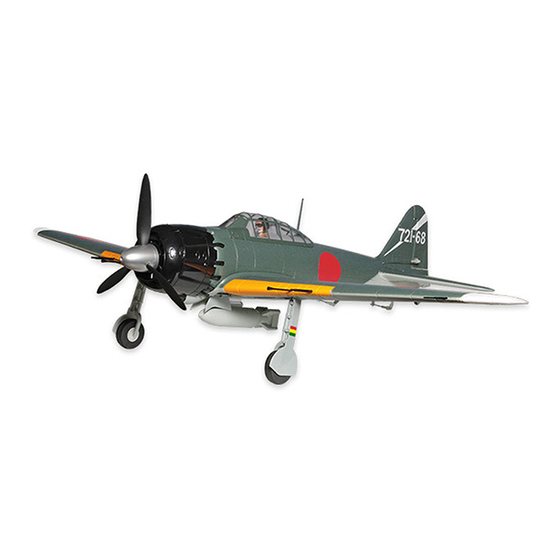

Ultimately this resulted in an Allied advantage later in the war. Modeled after the famed WWII Japanese Mitsubishi "Zero", this scale 1100mm wingspan warbird from FMS is a sight to behold. Reinforced wing surfaces allow flyers to perform advanced maneuvers like point rolls, barrel rolls, Immelmanns, half-Cubans, and split S with ease. -
Page 4: Contents Of Kit
Contents of Kit Before assembly, please inspect the contents of the kit. The photo below details the contents of the kit and labels. If any parts are missing or defective, please indentify the name or part number (refer to the spare parts list near the end of the manual) then contact your local shop or email us: support@fmsmodel.com A: Main wing F: Spinner... - Page 5 PA 2.3 x 10mm fig2 fig3 fig4...
-
Page 6: Wing Installation
Wing Installation Retract fig5 PM 3.0 x 32mm PM 3.0 x 18mm fig6... - Page 7 fig 7 fig8...
-
Page 8: Install The Battery And Radio Installation
Install the battery and Radio installation 1. Apply the hook tape to the cable end of the battery (fig 9). 2. Make sure the battery is secured using the hook. Note: You may need to relocate the battery position to achieve the correct CG for your model. -
Page 9: Get Your Model Ready To Fly
Get your model ready to fly Important ESC and model information 1. The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or position, the motor will not start until the throttle stick is moved to the low throttle or off position. -
Page 10: Check The Control Throws
Check the control throws The suggested control throw setting for FMS MODEL are as follows (dual rate setting): Tips: At first flight, fly the model in low rate. The first time you use high rates, be sure to fly at low to medium speeds. -
Page 11: Linkage Rod Installation
Clevis Installation a. Pull the tube from the clevis to the linkage. b. Carefully spread the clevis, then insert the clevis pin into the desired hole in the control horn. c. Move the tube to hold the clevis on the control horn. Control Horn and Servo Arm Settings The table shows the factory settings for the control horns and servo arms. -
Page 12: Install The Propeller And Spinner
Install the propeller and spinner Assemble the spinner and propeller as shown below. Check the C.G. (Center of Gravity) When balancing your model, adjust the motor battery as necessary so the model is level or slightly nose down. This is the correct balance point for your model. After the first flights, the CG position can be adjusted for your personal preference. -
Page 13: Before Flying The Model
Before flying the model Find a suitable flying site Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three football fields - a flying field specifically for R/C planes is best. -
Page 14: Flying Course
Flying course Take off While applying power, slowly steer to keep the model straight. the model should accelerate quickly. As the model gains flight speed you will want to climb at a steady and even rate. ZERO will climb out at a nice angle of attack (AOA). -
Page 15: Troubleshooting
Troubleshooting... -
Page 16: Spare Parts List Content
Rear Landing Gear Set FMSPJ116 Linkage Rod FMSPJ117 Pipe FMSPJ118 Decal Sheet FMSPJ119 E-retract FMSPROP032 Propeller FMSDJ009 Cross Motor Mount FMSDZ010 Motor Shaft FMSBM011 Motor Board FMSCON002 Multi-connector Set FMS-Motor-3536-KV850 FMS-ESC-40A FMSSER9GP-servo positive Visit our website to see photos of this product: www.fmsmodel.com... -
Page 17: Esc Instruction
ESC instruction...
